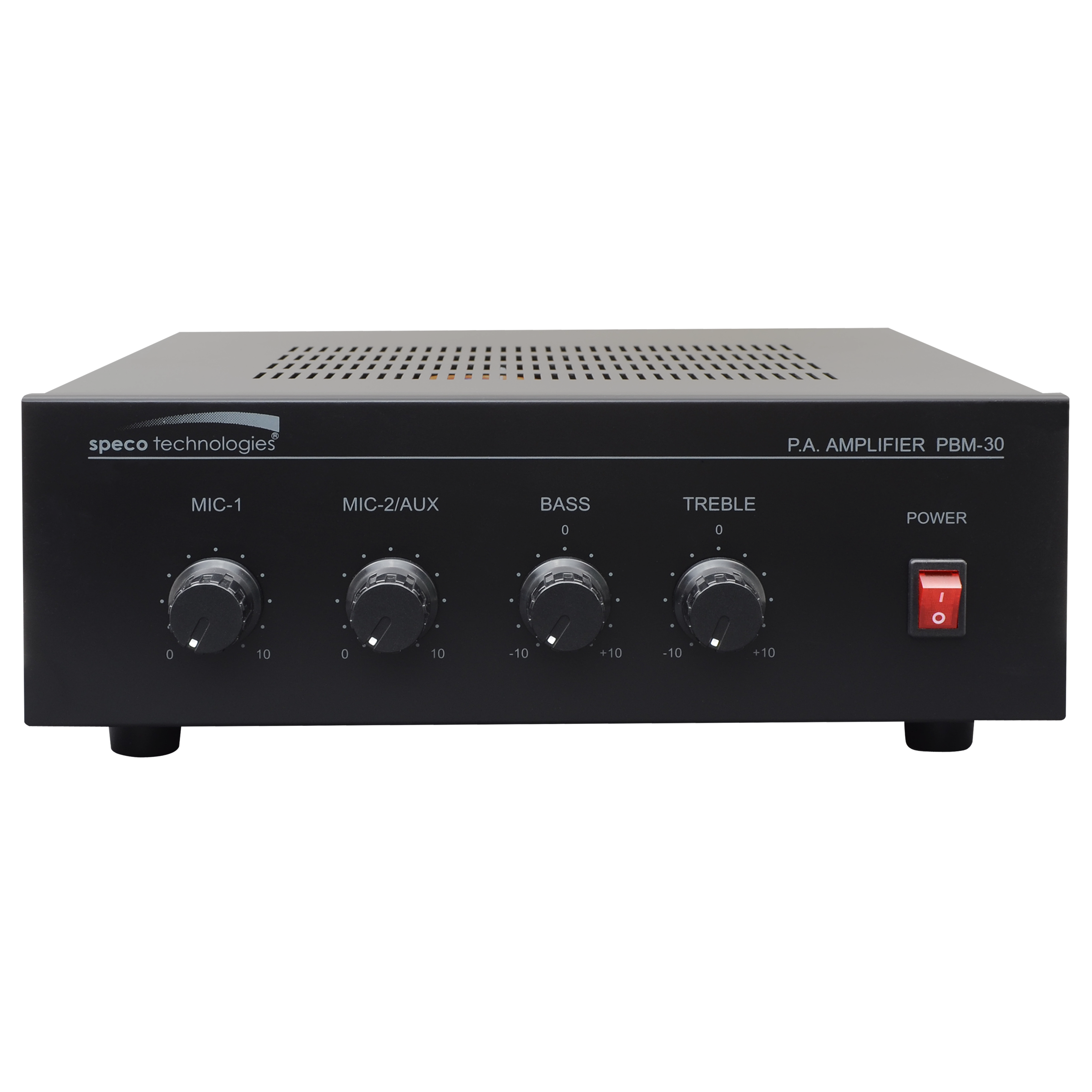

Speco - PBM30 - 30W Contractor Series PA Amplifier UL Listed
Part number:
Price:
Product Overview
Speco Technologies’ UL listed Contractor Series amplifiers are designed for long-running, every day use. They can stand on their own to run a smaller installation, or be incorporated into a much larger job. With RMS power ranging from 30W to 120W, microphone and source-mixing ability, telephone paging interface and music-on-hold capability, there’s practically no job where one of these amplifiers wouldn’t be a perfect fit!
Key Configuration
Model: PBM30 | Type of Amplifier: Mixer
Key Features
- • UL Listed.
- • NDAA Compliant.
- • Telephone paging interface.
- • Music-on-hold capability.
Installation Notes
10.75" (W) × 3.5" (H) × 9.5" (D)
| Full Specifications | |
| Power Output | 30W |
| Type | Mixer |
| Speaker Specifications | |
| Model | PBM30 |
| RMS Output Power | 30W |
| AC Power Consumption | 500W |
| Power Supply | AC 120V, 50/60Hz |
| Zones | 1 |
| Speaker Outputs | 4/8/16 Ohms, 70/25V |

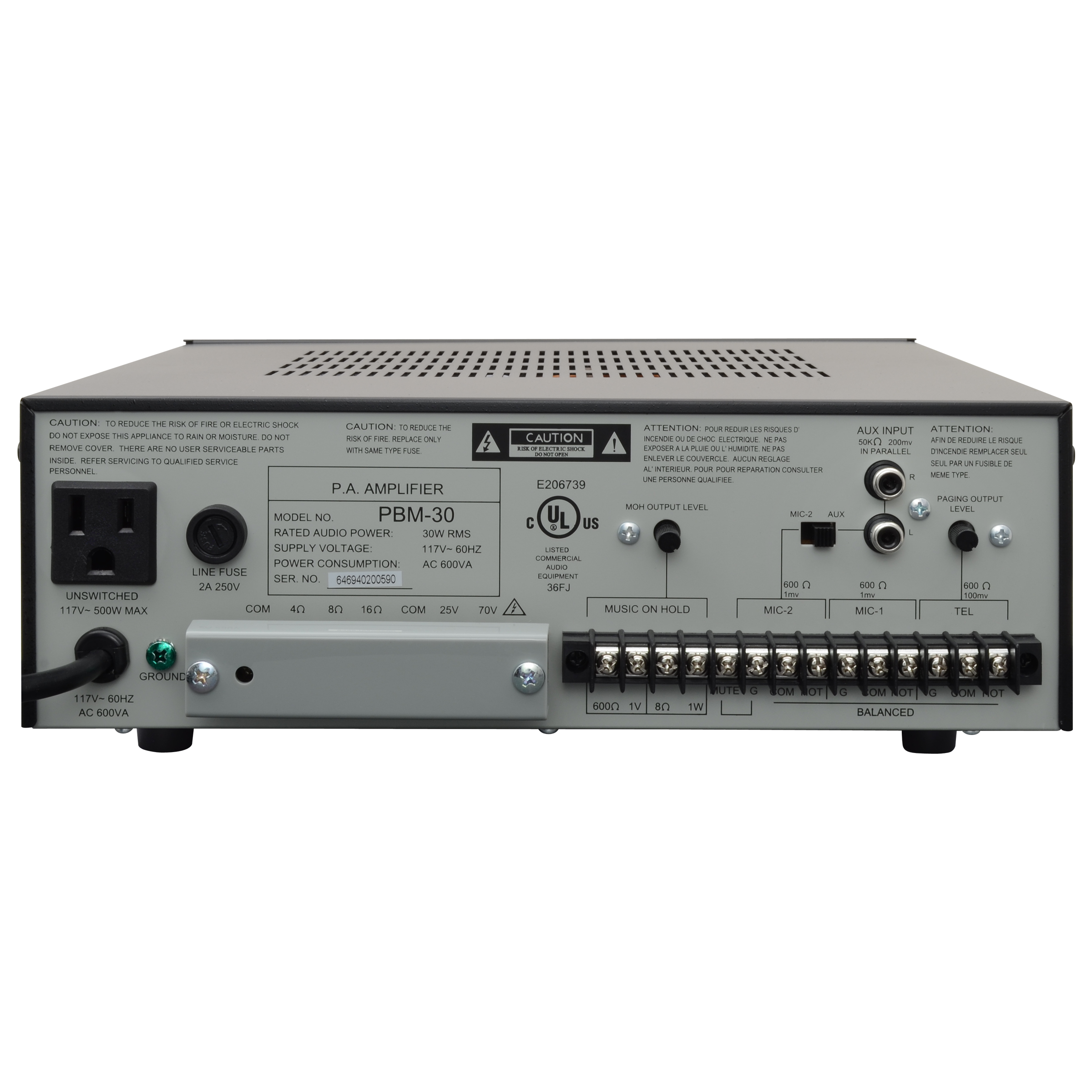

| Inputs | 2 × Mic (Terminal), 1 × Aux (Stereo RCA) |
| Frequency Response | 70Hz ~ 18KHz (±3dB) |
| Tone Control | 50Hz ~ 15KHz (±3dB) |
| THD | Less than 1% @ 1KHz |
| Signal/Noise Ratio | Microphone: >55dB TEL: >60dB Line: >70dB |
| Controls | Volume for each source, Tone, TEL Input Level |
| Telephone | TEL in and MoH Out |
| Indicators | Power |
| Listings | UL, cULm CE, FCC |
Name
Description
Size
Downloads
File
Specification
0.2mb
File
Manual
0.3mb
