Product Overview
• Seven front-selectable 70/25V speaker zones with selectable 70/25V switch • 24 Volt input for emergency backup power • Separate bass and treble controls • Each XLR microphone input has a phantom power toggle • Mic1 selectable priority paging **Products are in compliance with NDAA Section 889 Part B Guidelines**
Key Configuration

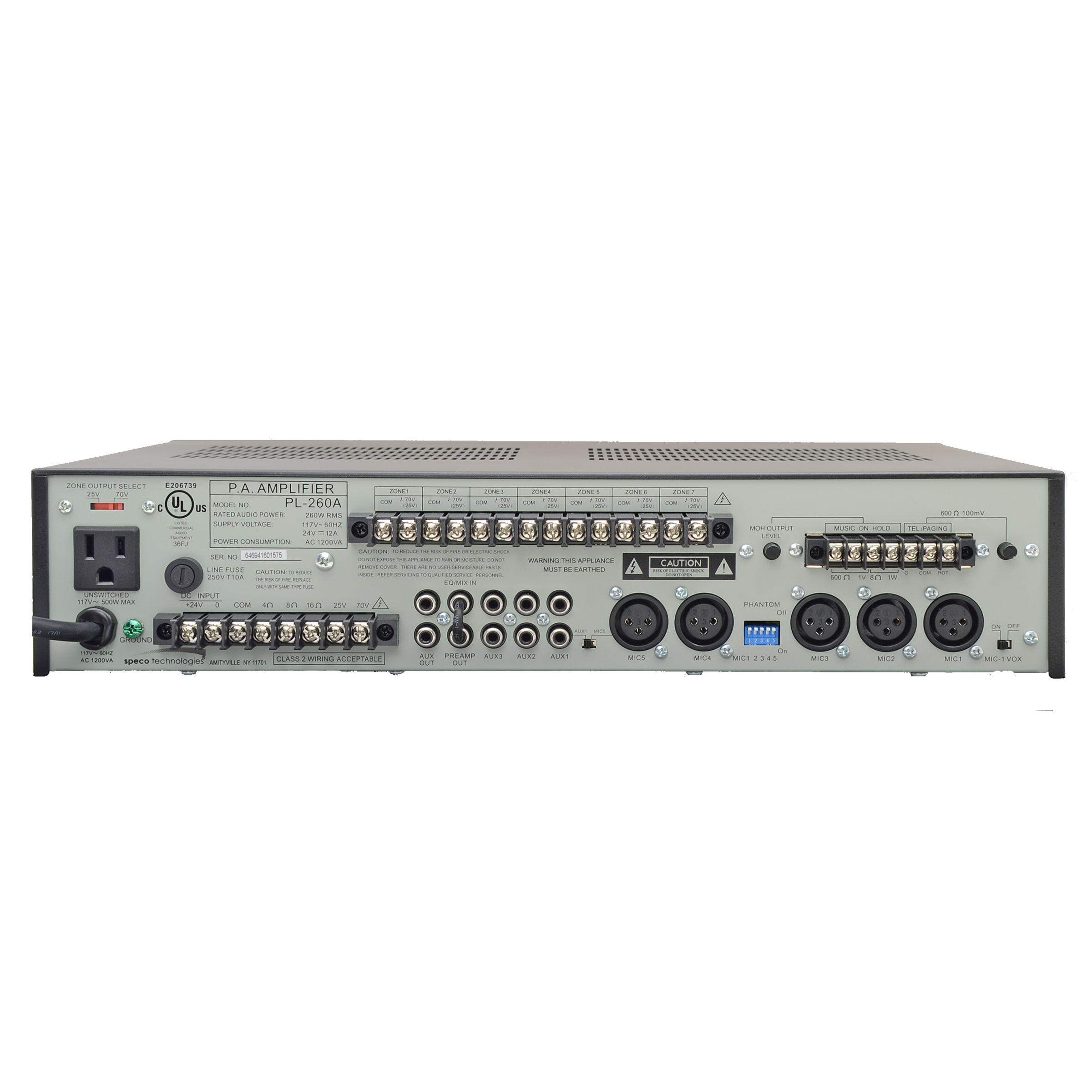

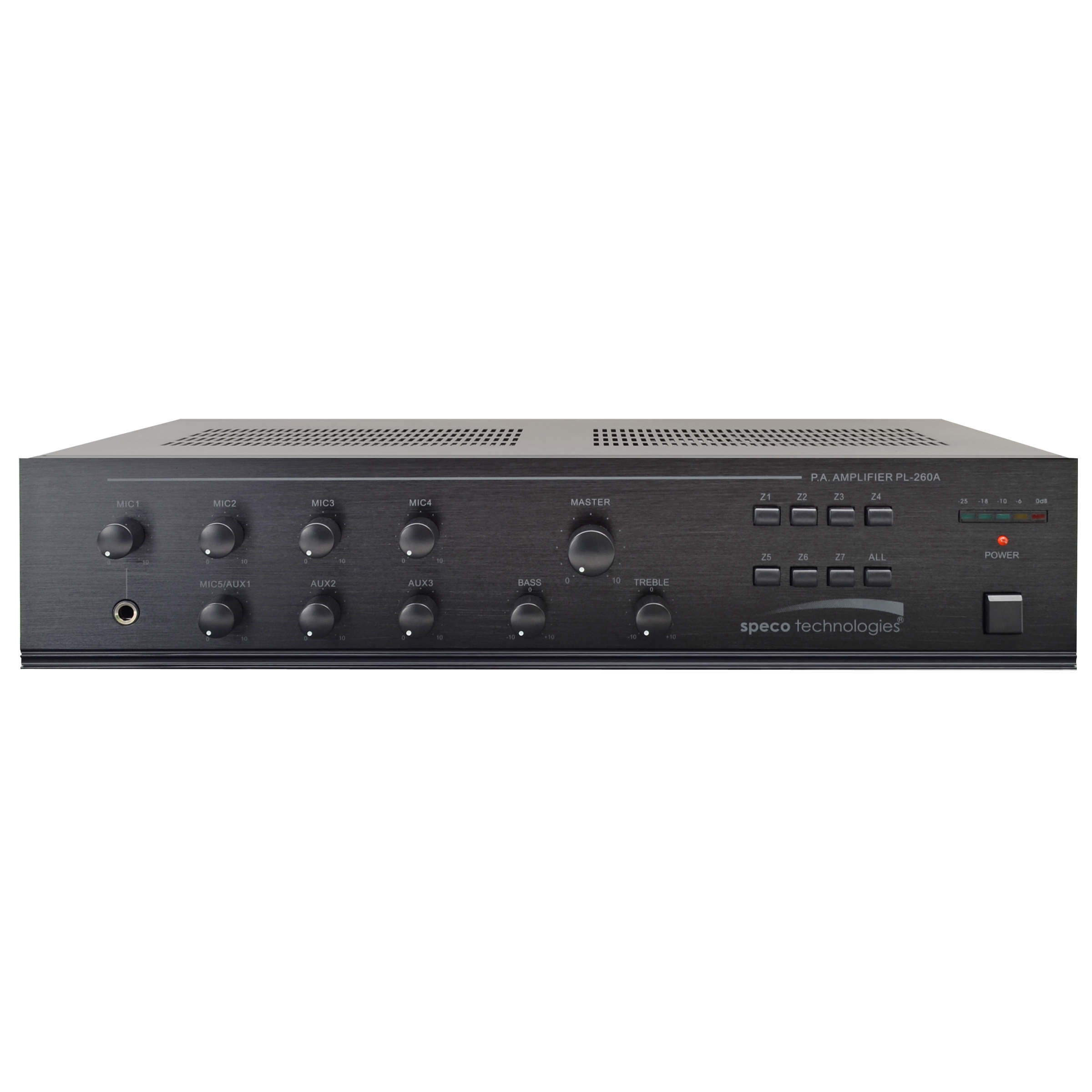

Model: PL260A
Installation Notes
16.9” (W) x 3.5” (H) x 11.6” (D)
| Full Specifications | |
| Type of Amplifier | Mixer |
| RMS Output Power | 260W |
| Max. Output Power | 390W |
| AC Power Consumption | 1200W |
| Power Supply | AC 117V, 60Hz, DC 24V, 12A |
| Zones | 7 |
| Speaker Outputs | 4/8/16 Ohms (non-zoned), 70/25V (zoned) |
| Other Outputs | Aux (Stereo RCA), Pre-Amp (RCA) |
| Inputs | 5 x Mic (XLR), 3 x Aux (Stereo RCA), 1 x EQ/Mix (RCA), 1 x TEL (Terminal) |
| Frequency Response | 50Hz ~ 15KHz (±3dB) |
| Tone Control | Bass ± 10 dB, Treble ± 10dB |
| THD | Less than 1% @1KHz |
| Signal/Noise Ratio | Microphone: >60dB, TEL: >60dB, Line: >70dB |
| Controls | Volume for each source, Master Volume, TEL Input Level, MoH Volume, Tone, Zone Selector, Phantom Power on/off |
| Telephone | TEL in and MoH Out |
| Indicators | Power, power level |
| Listings | UL, cUL, CE, FCC, RoHS |
