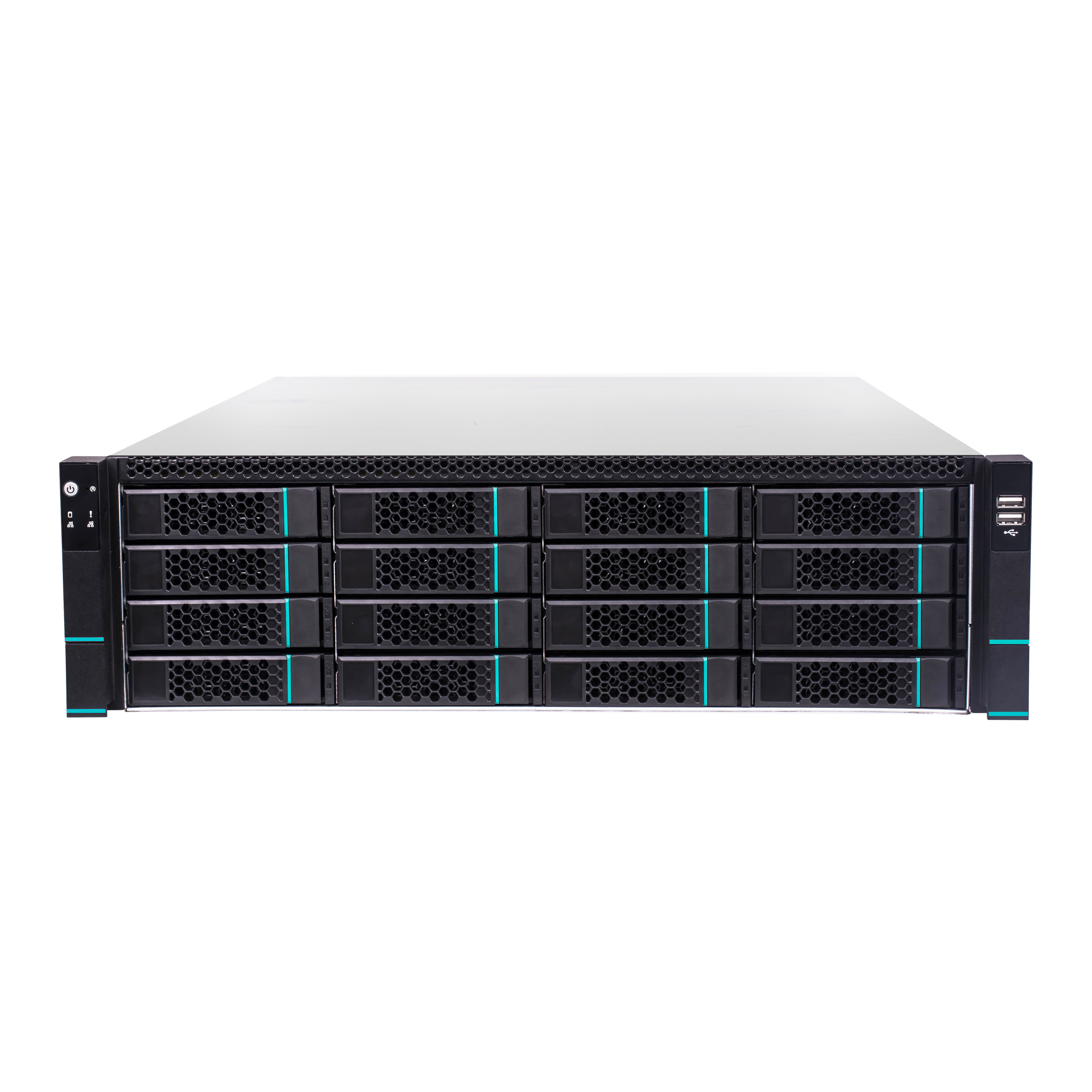

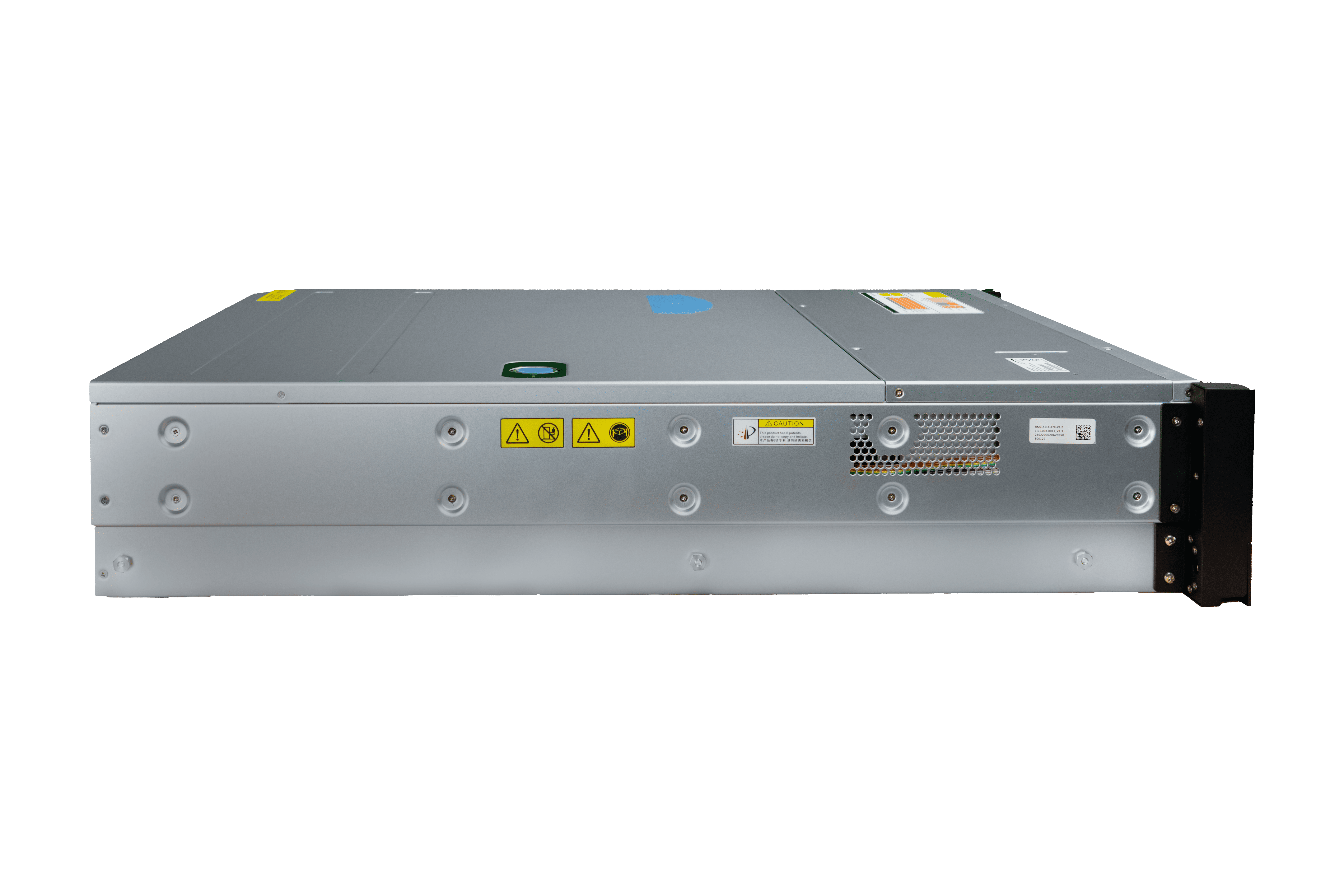

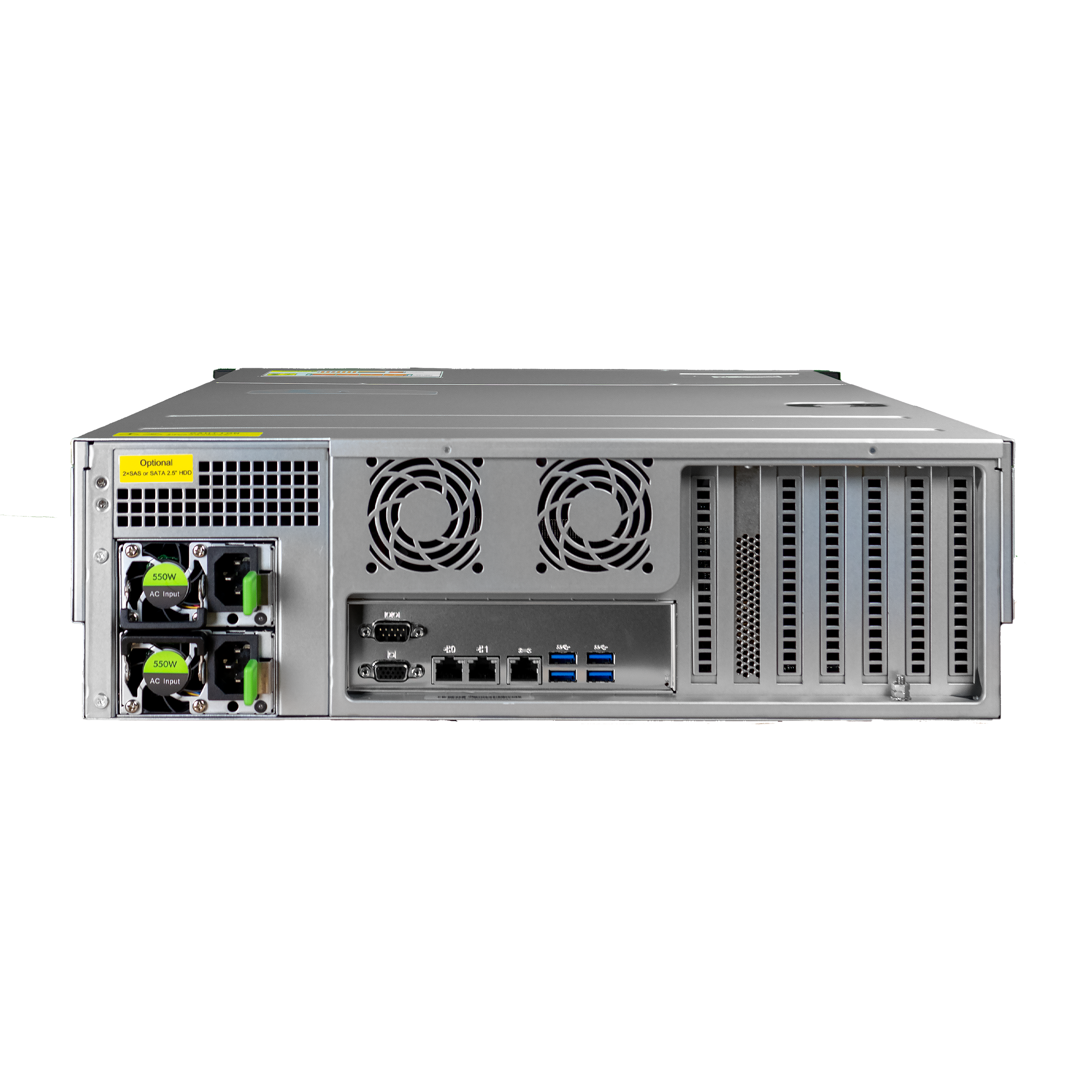

Speco - SB16S64TB - Blue Storage Server - 16bay, 64TB
Part number:
Price:
Product Overview
The Speco SB16S64TB Blue Storage Server is an exceptional solution for Speco Blue installations, boasting a robust 64TB of storage across 16 bays. This server not only acts as a primary recording source but also serves as a reliable redundancy layer for your recorder channels, ensuring your data is always secure and accessible.
Key Configuration
Model: SB16S64TB
Key Features
- • Redundant power supply.
- • Can be managed from a web browser or Speco Blue VMS Enterprise.
- • Comes with a hardware RAID controller that supports RAID 0, 1, 5, 6, 10.
- • Interfaces with management servers (SB01M, SB11M, and SB21M) to store recordings.
| Specifications | |
| Harddrive Size | 64TB |
| Protocols | speco Protocols |
| Features | Audio |
| Operating temperature | -40°F to +131°F (ambient) |
| Specification Sheet | |
| CPU | Intel Xeon Processor E3 |
| Operating System | Linux |
| Memory | 8GB DDR4 ECC |
| HDD | 3.5" SATA x 16 (hot-swappable) |
| HDD Installation | Independent HDD bracket |
| Capacity | Up to 256TB (max 16TB per HDD) |
| RAID | Hardware RAID (Supports RAID 0, 1, 5, 6, 10) |
| Expansion | (1)PCI-E3.0x16 (x8), (1)PCI-E3.0x8, (1)PCE-E3.0x8 (x4) |
| Network Card | Integrated I210-AT dual gigabit network card |
| IPMI | ASPEED AST2400BMC, indpendant IPMI interface (supports iKVM) |
| Monitor Control | Integrated display controller |
| Protocol | TCP, UDP, RTSP |
| Search | Built-in index (accurate to second-level) |
| Performance | Up to 800 Mbps incoming, 800 Mbps recording and 96Mbps for playback or live view |
| Management Access | Web Browser, Speco Blue VMS |
| Management Features | RAID Management, Record Management, System Logs, and Alarm Processing |
| Security | TPM |
| Video Output | VGA |
| USB Interfaces | Front Panel: USB 2.0 x 2, Rear Panel: USB 3.0 x 4 |
| Network Interfaces | 10/100/1000 Ethernet x 2 IPMI x 1 |
| Serial Interfaces | RS 232 x 1 |
| Power Supply | 550W Redundant Power Supply, 100-240V-7~3.4A/50~60Hz |
| Working Temperature | 50°F to 95°F |
| Standby Temperature | -40°F to +131°F (ambient) |
| Relative Humidity | Working: <90% RH (95°F) |
| Noise | Working: <50 Dba |
| ESD | Each item conforms to Intel ambient temperature test standard 15KV |
