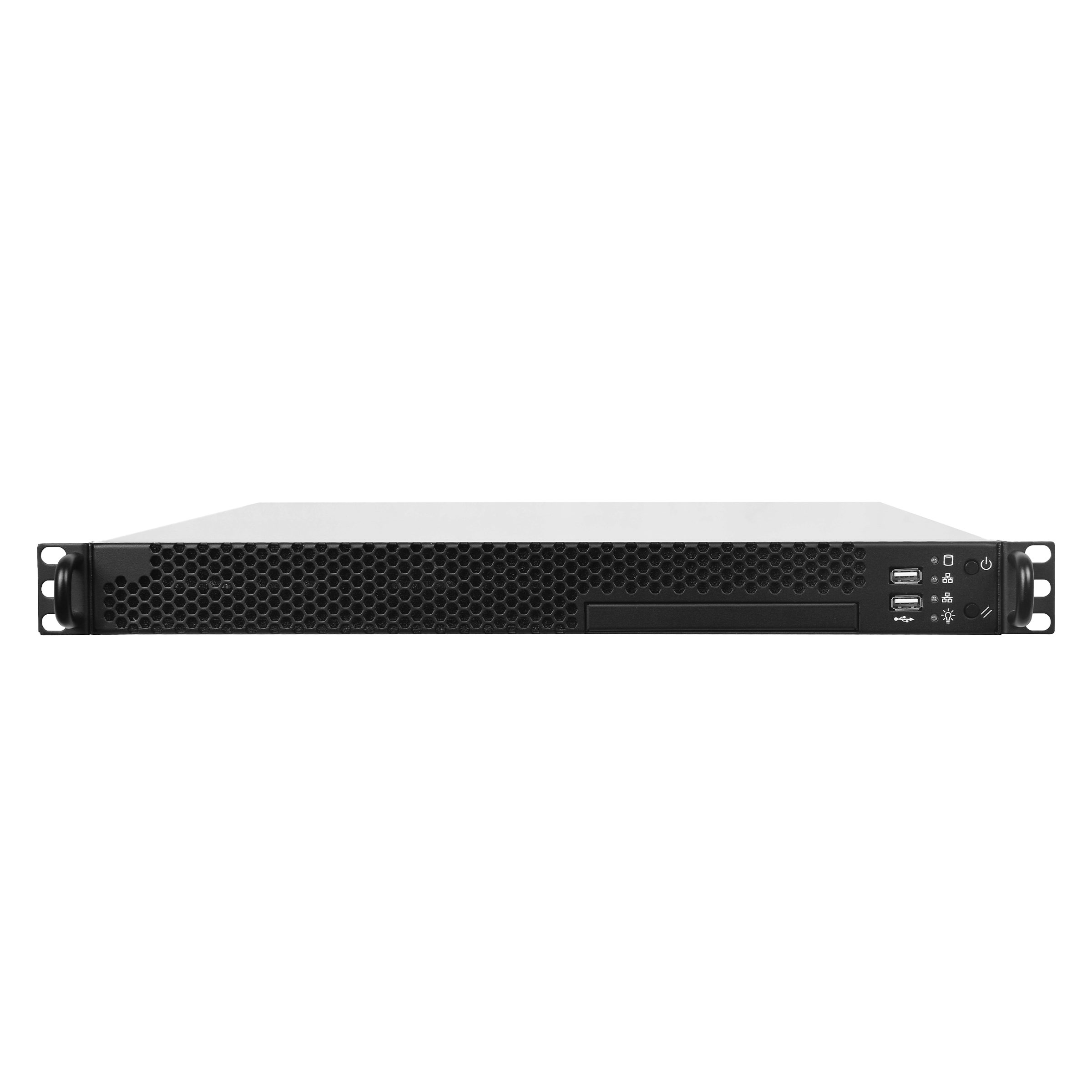

Speco - SB21M - Speco Blue Enterprise Servers to Host and Manage Speco Blue Devices
Part number:
Price:
Product Overview
The Speco Blue Enterprise management servers are designed to meet the requirements for any application, big or small, with their robust performance, scalability, and feature rich platform.
Key Configuration
Model: SB21M
Key Features
- • Comes pre-installed with Speco Blue Enterprise VMS.
- • Supports all Speco Blue Recorders and IP Cameras.
- • Interfaces with separate storage server (SB16S) to store recordings.
- • Can be connected to and configured remotely via Speco Blue Enterprise Client software.
Installation Notes
16.93in x 1.73 in x 19.17in (W x H x D)
| Full Specifications | |
| Type | Rack-mountable Blade Server |
| Channel Support | Supports up to 2048 channels |
| Model | SB21M |
| System CPU | Intel Core Processor E-2200 |
| System Memory | 8GB DDR4, up to 128GB |
| System PCI Expansion | (4) 1stPCI-E3.0®, (8) 1stPCI-E3.0®16 |
| System Operating System | |
| System Viewing Capability | 8-CH @ 8MP or 12-CH @ 5MP or 16-CH @ 4MP or 28-CH @ 1080P or 3-6CH @ 720P or 36-CH @ D1 |
| Software Software | Speco Blue VMS Enterprise |
| Software Supported Protocols | Speco Blue Protocol, QR Code, ONVIF, RTSP |
| Software Max Number of Channels | 2048-CH |
| Software Max Number of Devices | 500 Devices |
| Software Max Decoding Output | 12-CH |
| Software Max Number of Storage Servers | 32 |
| Software Max Outgoing Bandwidth | 640 Mbps |
| Software Max User Access | |
| Software Max Simultaneous Users | 64 |
| Video & Audio HDMI Output | (1) HDMI |
| Video & Audio VGA Output | (1) VGA |
| Video & Audio Display Port | (1) Display Port |
| Video & Audio Audio Output | (1) Line Out |
| Video & Audio Audio Input | (1) Mic Input |
| External Ethernet Interface | (4) RJ45 10/100/1000 Ethernet port |
| External USB Interface | USB 3.1 x 6 |
| Other Power | 100-240V-6-3A/50-60Hz |
| Other Power Consumption | ≤ 300W |
| Other Working Temperature | 50°F to 95°F |
| Other Storing Temperature | -40°F to 158°F |
| Other Working Humidity | 95% |
