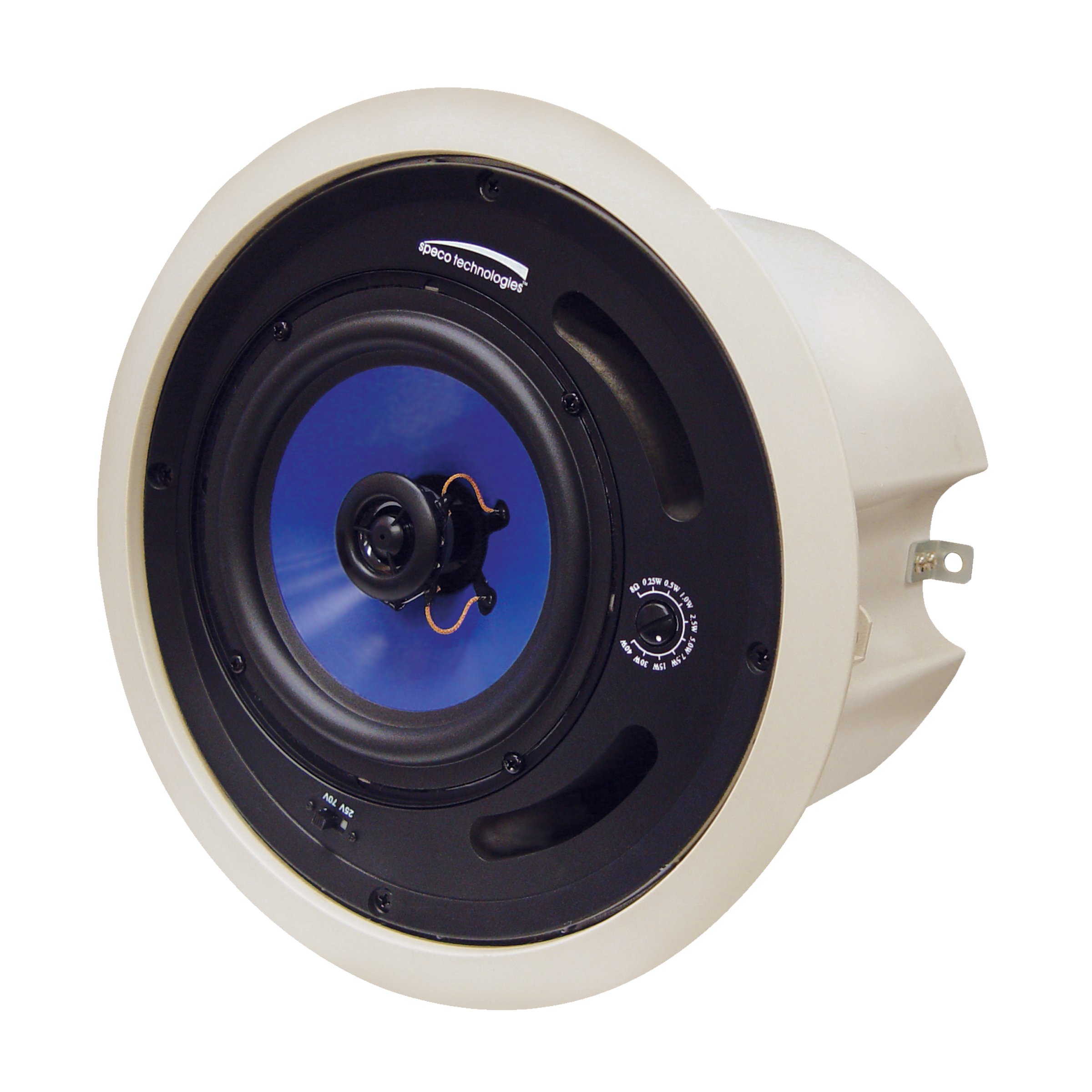

Speco - SP5MAT - 5.25" 25/70V Speaker with Backbox
Product Overview
Speco Technologies’ Multi-Application Series was designed to make the contractor’s work as easy and time-efficient as possible. Our all-in-one unit comes pre-assembled with back can and mounted transformer. It features a quick-flip 70 or 25 Volt selector switch and an easy-select transformer wattage dial. The choice of 8 or 9 individual wattage tap settings covers a complete range of uses. This flame-retardant ABS unit also comes with insulated wires, has an attached metal seismic safety loop and built-in easy mount tabs for securing the unit. The MA Series is the ideal, all-purpose value speaker covering a wide range of commercial applications. The furnished 8 Ohm tap selector also means the speakers can be kept on-hand for unexpected residential installation needs.
Key Configuration
Model: SP5MAT
Installation Notes
9.43" (Dia.) × 6.12" (D)
| Full Specifications | |
| Woofer Size | 5.25 |
| Speaker Color | Off-White or Black |
| Speaker Specifications | |
| Model | SP5MAT/SP5MATB |
| RMS Power | 30W |
| Max Output Power | 60W |
| Transformer Type | 70/25V (selectable) |
| Transformer Power Taps | 30W, 15W, 7.5W, 2.5W, 1W, 0.5W, 0.25W, & 8 Ohms |
| Termination Type | Press Terminal |
| Sensitivity (1W/1M) | 87dB |
| Maximum SPL (Pmax/1M) | 91.4dB |
| Driver Impedance | 8 Ohms |
| Magnet | 10 oz. ferrite |
| Frequency Response Range | 57Hz ~ 20kHz |
| Dispersion @ 1000Hz | 120° Conical |
| Drivers | 5.25" Polypropylene woofer 1" Mylar tweeter |
| Speaker Dimensions | 9.43" (Dia.) × 6.12" (D) |
| Mounting Dimensions | 8.38" (Dia.) |
| Weight | 4.5lbs |
| Material | Baffle: Fire-resistant ABS Backcan: Fire-resistant ABS Grille Material: Metal |
