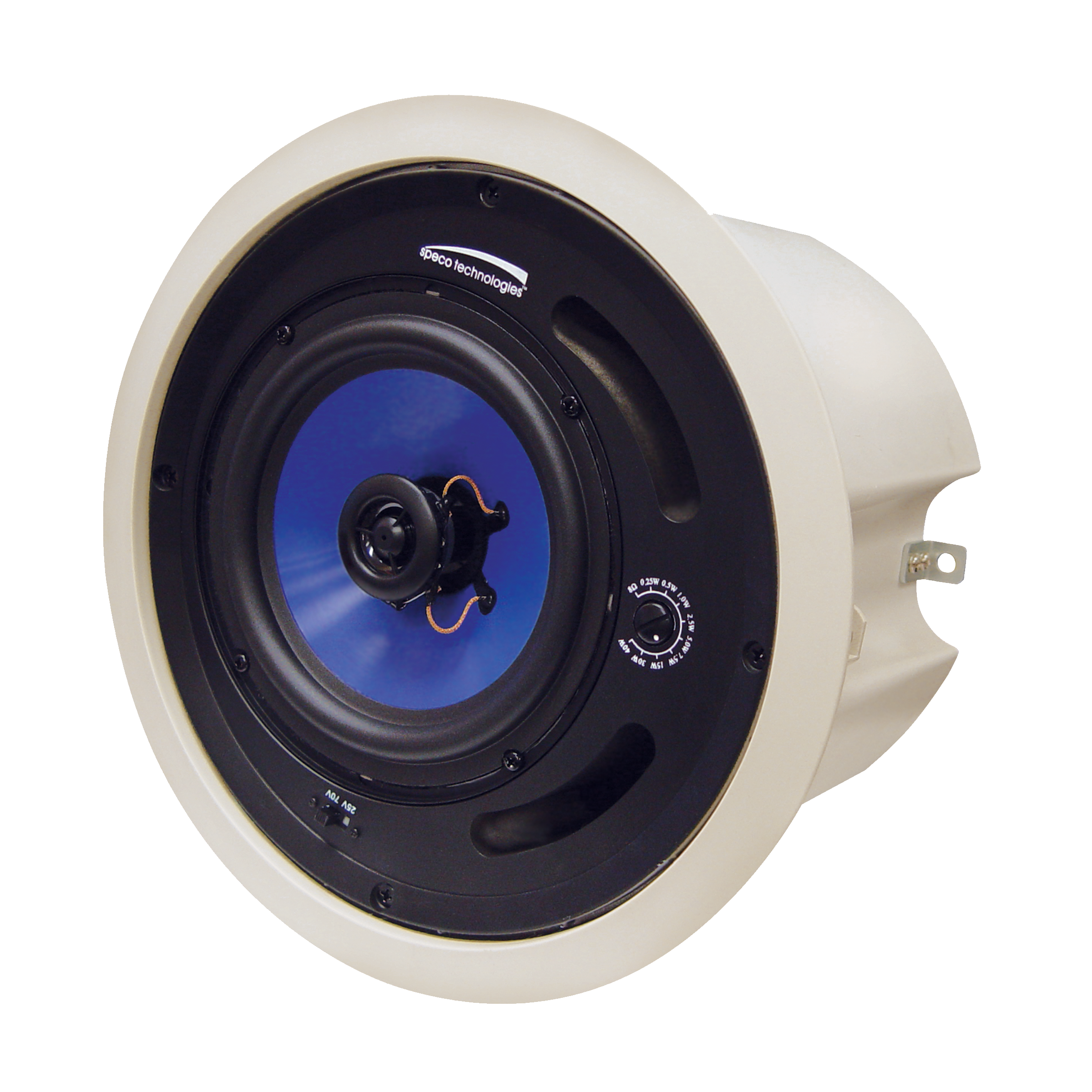

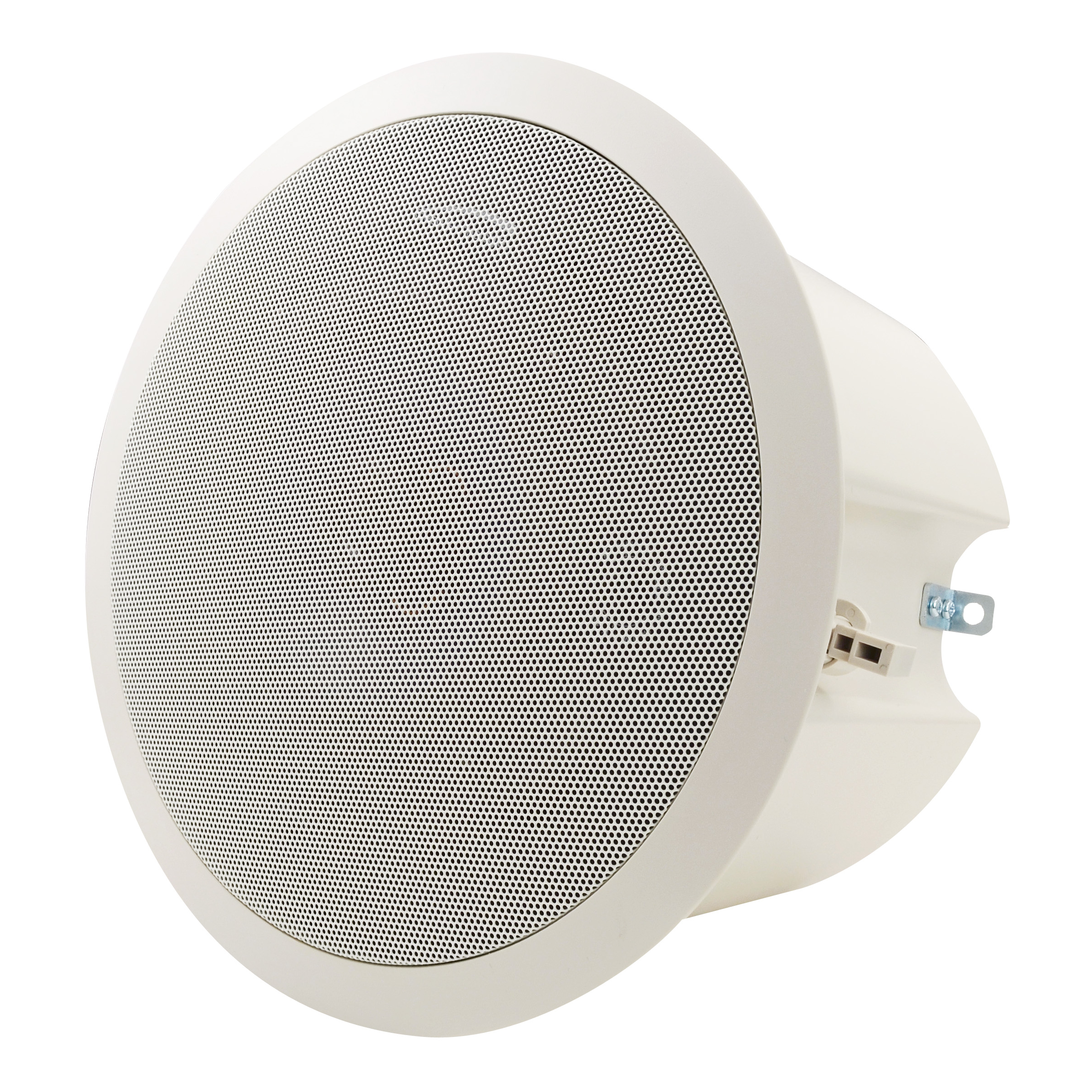

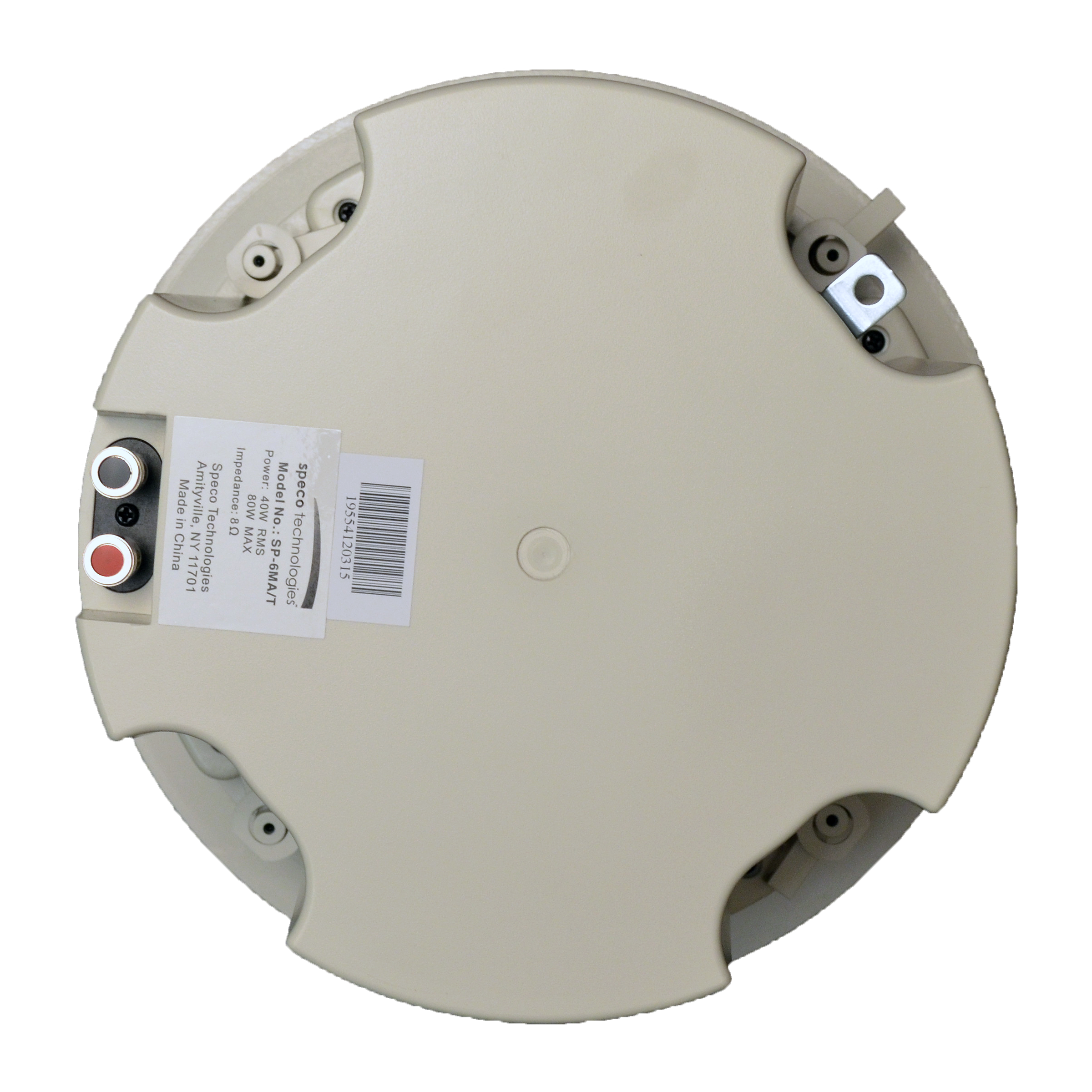

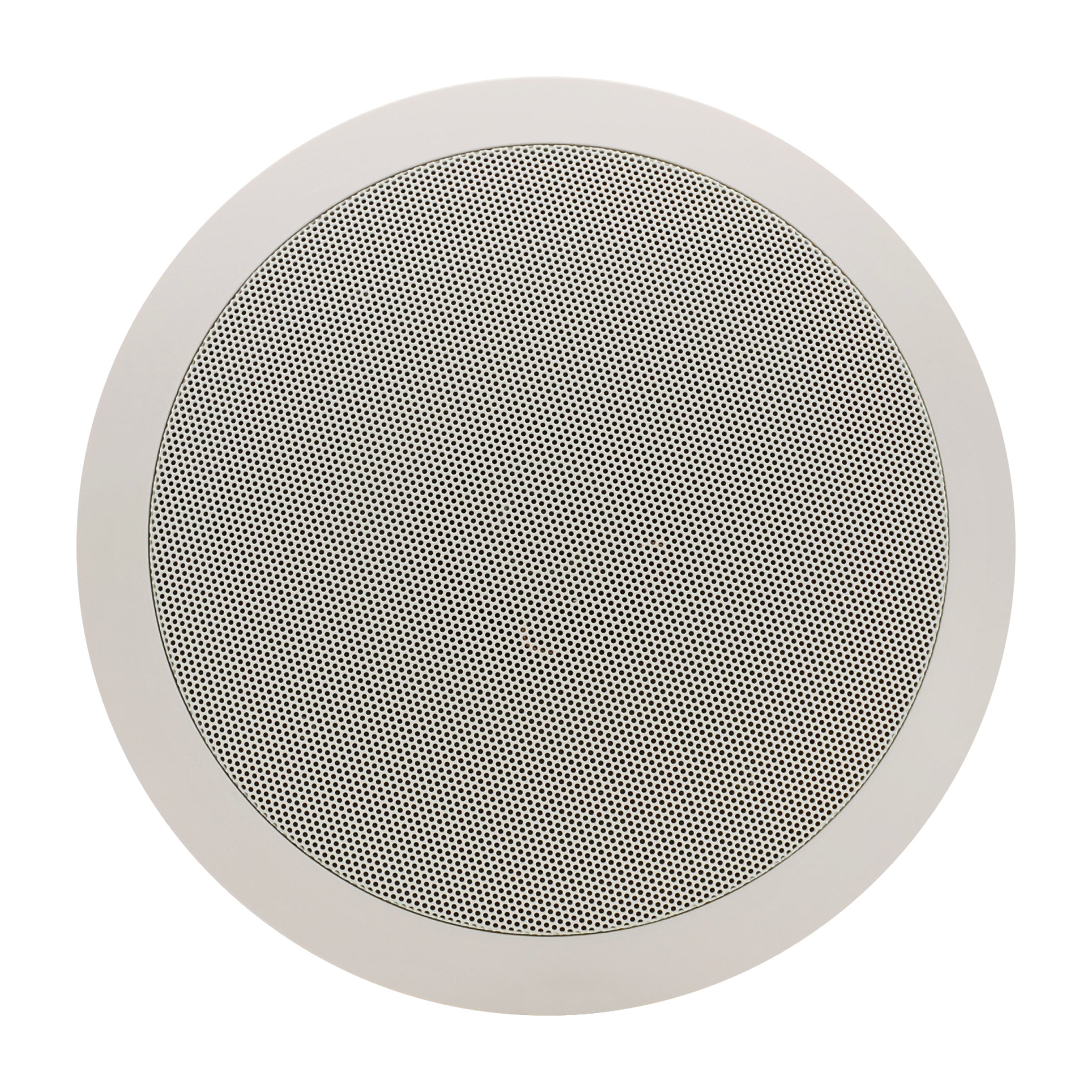

Speco - SP6MAT - 6.5″ 25/70V Speaker with Backbox

Part number:
Price:

Product Overview

Speco Technologies’ Multi-Application Series was designed to make the contractor’s work as easy and time-efficient as possible. Our all-in-one unit comes pre-assembled with back can and mounted transformer. It features a quick-flip 70 or 25 Volt selector switch and an easy-select transformer wattage dial. The choice of 8 or 9 individual wattage tap settings covers a complete range of uses. This flame-retardant ABS unit also comes with insulated wires, has an attached metal seismic safety loop and built-in easy mount tabs for securing the unit. The MA Series is the ideal, all-purpose value speaker covering a wide range of commercial applications. The furnished 8 Ohm tap selector also means the speakers can be kept on-hand for unexpected residential installation needs.



Key Configuration

Model: SP6MAT | Woofer Size: 6.5 | Speaker Color: Off-White



Key Features

  • • Designed for easy and time-efficient installation.
  • • Pre-assembled with back can and mounted transformer.
  • • Quick-flip 70 or 25 Volt selector switch.
  • • Easy-select transformer wattage dial.
  • • Choice of 8 or 9 individual wattage tap settings.



Installation Notes

11.02" (Dia.) × 7.58" (D)

Full Specifications
Woofer Size6.5
Speaker ColorOff-White or Black
Speaker Specifications
ModelSP5MAT/SP5MATB
RMS Power40W
Max Output Power80W
Transformer Type70/25V (selectable)
Transformer Power Taps40W, 30W, 15W, 7.5W, 5W, 2.5W, 1W, 0.5W, 0.25W, & 8 Ohms
Termination TypePress Terminal
Sensitivity (1W/1M)88dB
Maximum SPL (Pmax/1M)92.3dB
Driver Impedance8 Ohms
Magnet10 oz. ferrite
Frequency Response Range34Hz ~ 20kHz
Dispersion @ 1000Hz120° Conical
Drivers6.55" Polypropylene woofer 1" Mylar tweeter
Speaker Dimensions11.02" (Dia.) × 7.58" (D)
Mounting Dimensions9.88" (Dia.)
Weight5.5lbs
MaterialBaffle: Fire-resistant ABS Backcan: Fire-resistant ABS Grille Material: Metal
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
File
User Manual
0.2mb
