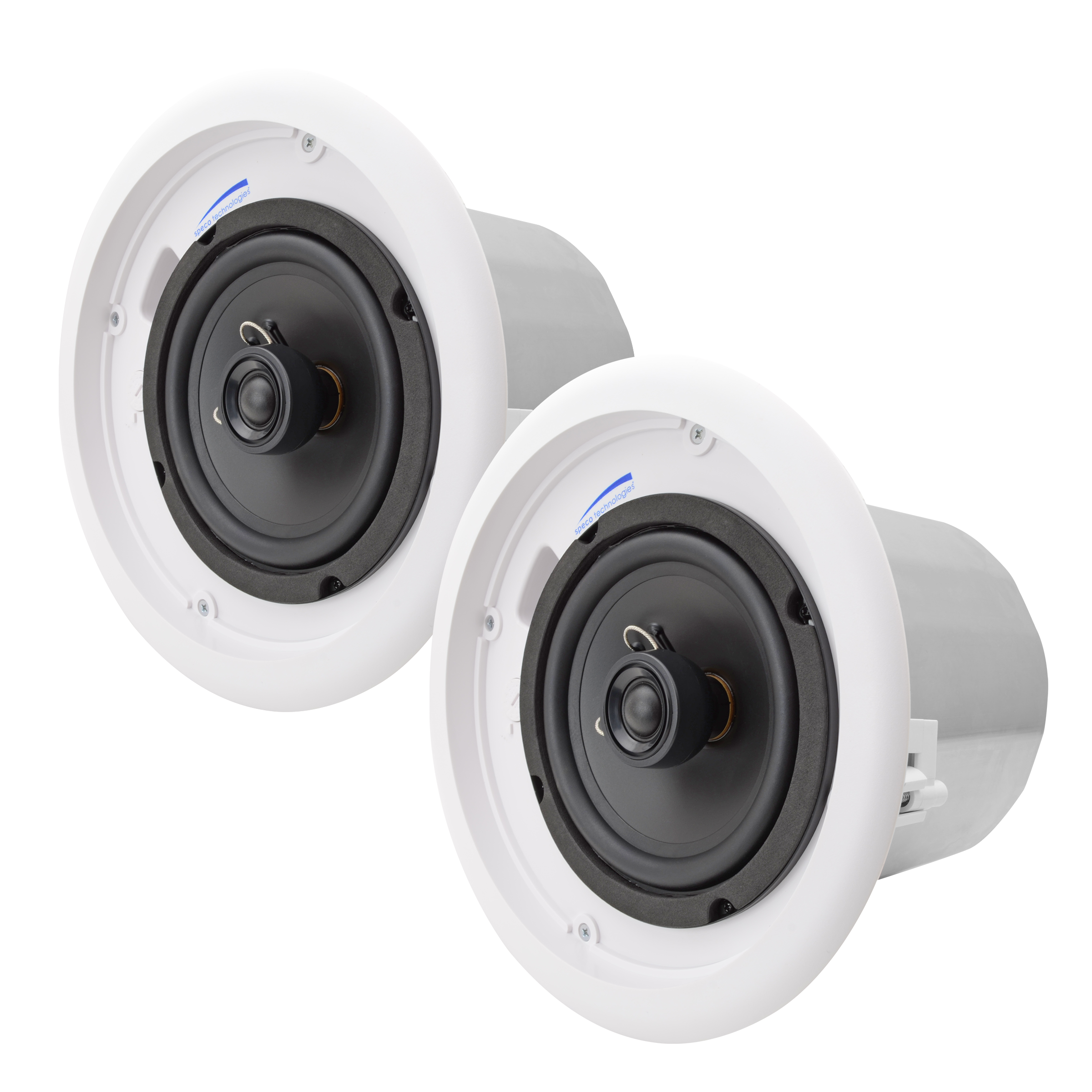

Speco - SP6NXCTUL - 6.5″ UL Listed Metal Back can Speakers w/ 70V Transformer, Bracket Included, Pair
Part number:
Price:
Product Overview
Heavy-duty, industrial metal back cans that provide component protection and safety while enhancing the speakers’ full-range bass sound. NEXUS ™ UL ® Contractor Series 70V Commercial Metal Back Can Speakers
Key Configuration

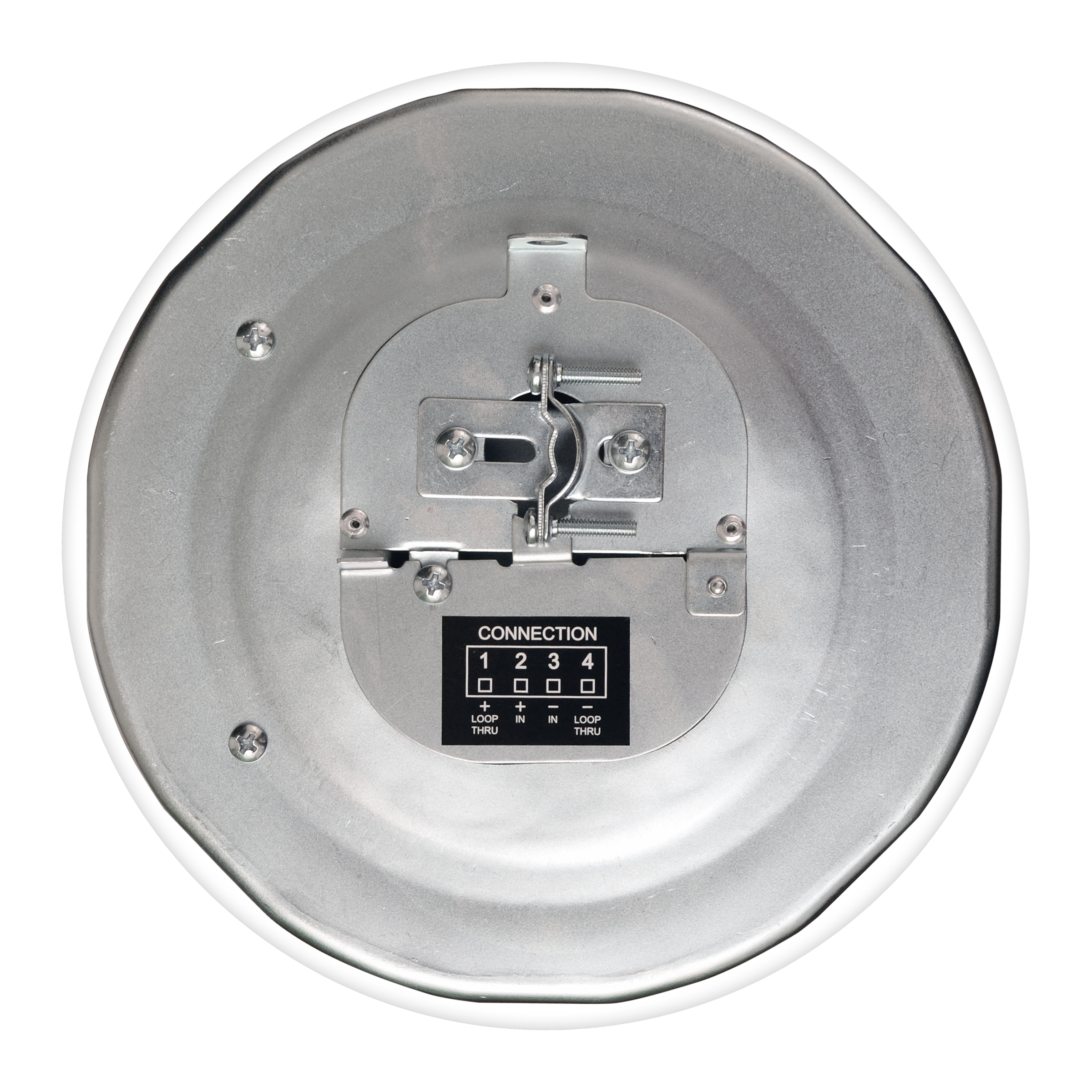

Model: SP6NXCTUL | Removable 'Quick-Snap' connection terminals provide easy access and optimal angles for connecting speaker wire. | A wattage selector dial simplifies transformer settings. | Mounted security loops allow for a support cable run and drop ceiling support brackets are included. | The 5.25" model has met the strict UL1480 requirements, while the 6.5" model has met both UL1480 and UL2043.
Key Features
- • Products are in compliance with NDAA Section 889 Part B Guidelines.
- • Easy select transformer dial.
- • Fire retardant metal backcan UL LISTED.
- • Safety loop for additional mounting security.
- • Ported bass.
Installation Notes
9.25” (Dia.) x 7.25” (D)
| Full Specifications | |
| Woofer Size | 6.5 |
| Speaker Color | White |
| RMS Power | 40W |
| Max. Power | 80W |
| Transformer Type | 70V |
| Transformer Power Taps | 10W, 5W, 2.5W 0.625W & 8 Ohms |
| Sensitivity (1W/1M) | 88dB |
| Maximum SPL (Pmax/1M) | 96dB |
| Driver Impedance | 8 Ohms |
| Magnet | 12 oz. ferrite |
| Frequency Response Range | 75Hz ~ 20kHz |
| Dispersion @ 1000Hz | 110º conical |
| Driver | 6.5” polypropylene woofer, 0.75” silk tweeter |
| Speaker Dimensions | 9.25” (Dia.) x 7.25” (D) |
| Mounting Dimensions | 10.25” (Dia.) x 7.75 (D) |
| Minimum Mounting Depth | 8.75” (Dia.) |
| Weight | 7.2 lbs. |
| Material | Baffle: Fire-resistant ABS Backcan: Heavy guage plated steel Grille: Steel |
| Color | White |
| UL Rating | UL1480 |
