Speco - SP6PTB - 6.5″ 70/25V Premium Combo Speaker, Black
Part number:
Price:
Product Overview

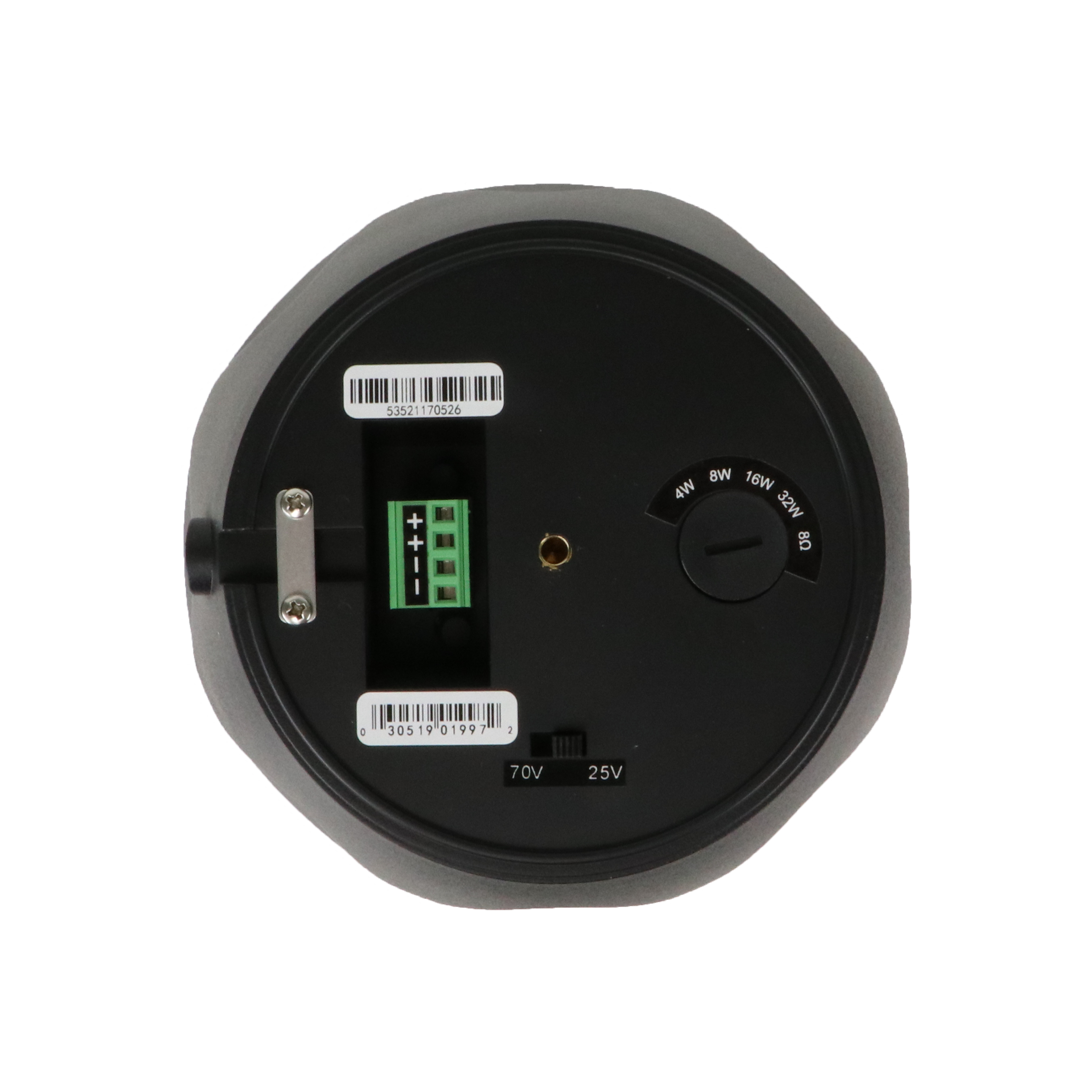

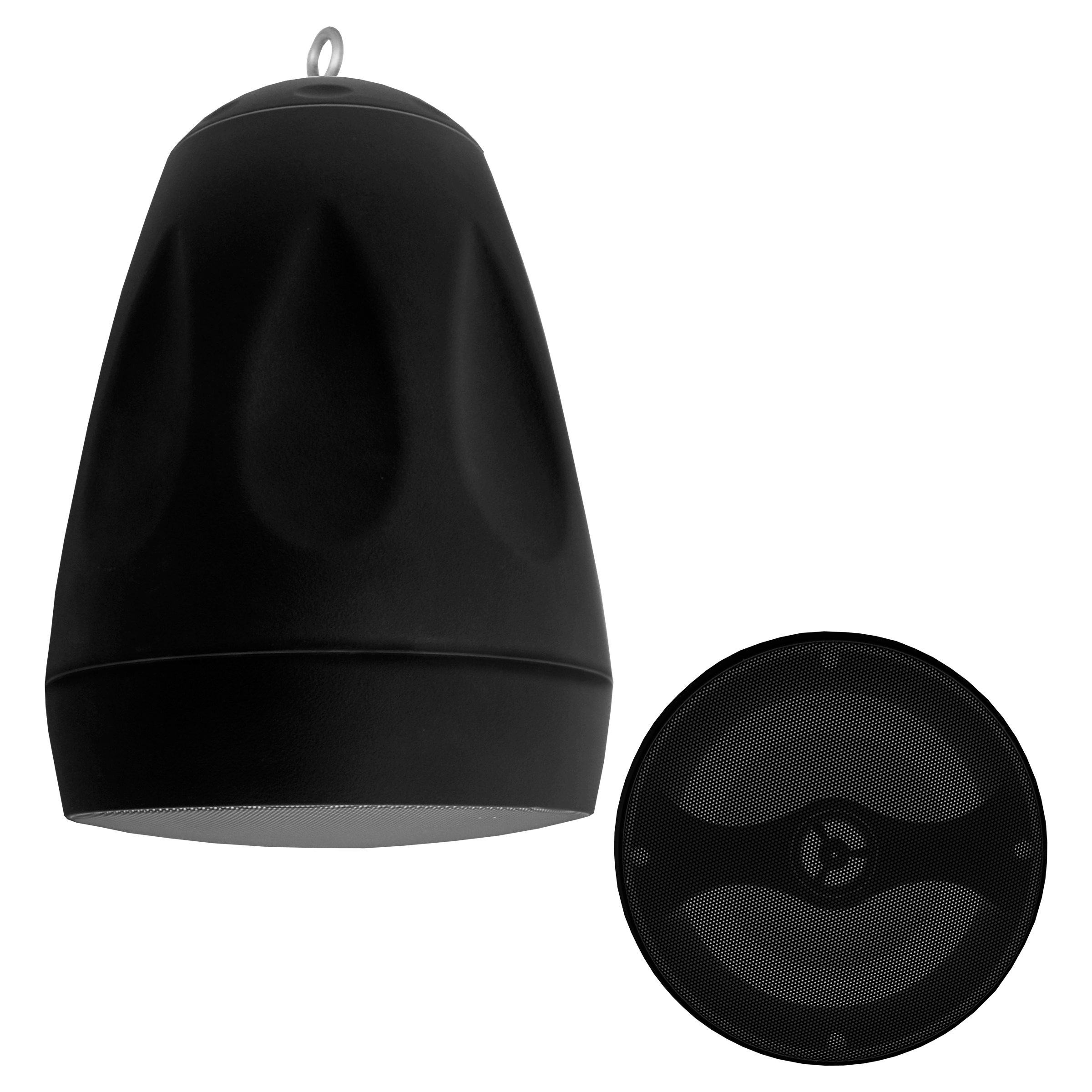

• Versatile speakers capable of being mounted as pendant, as wall mount, or as ground mount/landscape speakers (optional mounting kits required for wall/ground) • Premium construction for commercial and residential installations • Built-in selectable 70/25V transformer with settings of 32W, 16W, 8W, 4W and 8 Ohms • Includes Pendant Mount accessories • Optional mounting kit available for wall mounting or landscape mounting speaker *also available in white **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: SP6PTB | Woofer Size: 6.5 | Speaker Color: Black
Installation Notes
8.1" (Dia.) x 12.6" (H)
| Specifications | |
| RMS Power ..... 32W | 32W |
| Max. Power..... 64W | 64W |
| Transformer Type ..... N/A | 70/25V |
| Transformer Power Taps .... N/A | 32, 16, 8, 4W and 8 Ohms |
| Termination Type ..... Phoenix Connector | Phoenix Connector |
| Sensitivity (1W/1M)..... 88dB | 88dB |
| Maximum SPL ..... 92dB | 92dB |
| Magnet Size & Material ..... 15.5 oz. ferrite | 15.5 oz. ferrite |
| Frequency Reponse Range ... 98Hz~20kHz | 98Hz~20kHz |
| Dispersion @ 1000Hz ..... 100° | 100° |

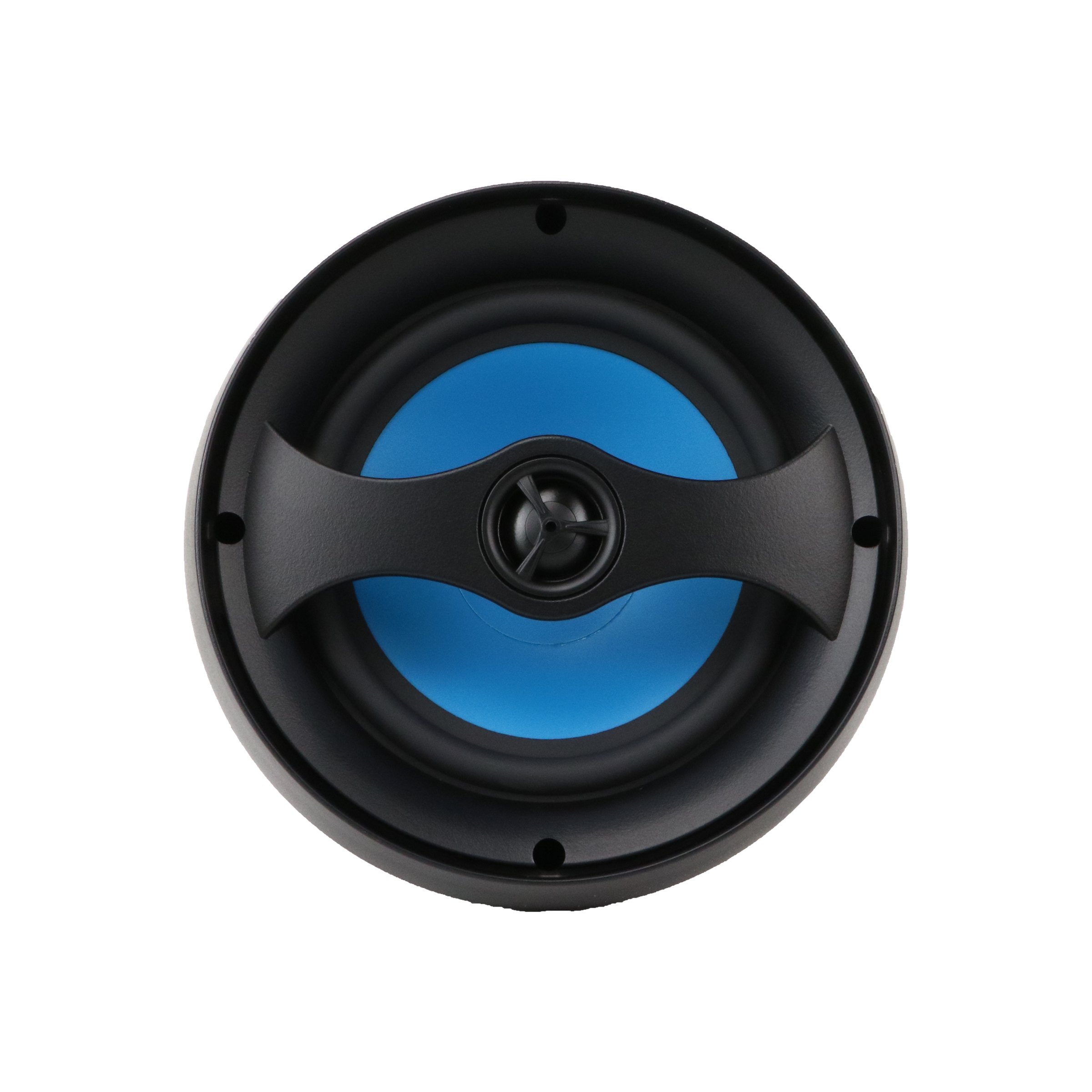

| Driver ..... 6.5" Polypropylene Woofer, 1" Polyurethane Tweeter | 6.5" Polypropylene Woofer, 1" Polyurethane Tweeter |
| Driver Impedance ..... 8 Ohms | 8 Ohms |
| Unit Dimensions ..... 8.1" (Dia.) x 12.6" (H) | 8.1" (Dia.) x 12.6" (H) |
| Unit Weight..... 7 lbs. | 7 lbs. |
| Unit Material ..... Polypropylene Composite | Polypropylene Composite |
| Unit Color..... Black | Black |
| Optional Mounting Kit..... SP6PMNTB | SP6PMNTB |
Name
Description
Size
Downloads
File
Specification Sheet
0.5mb
File
User Manual
0.4mb
