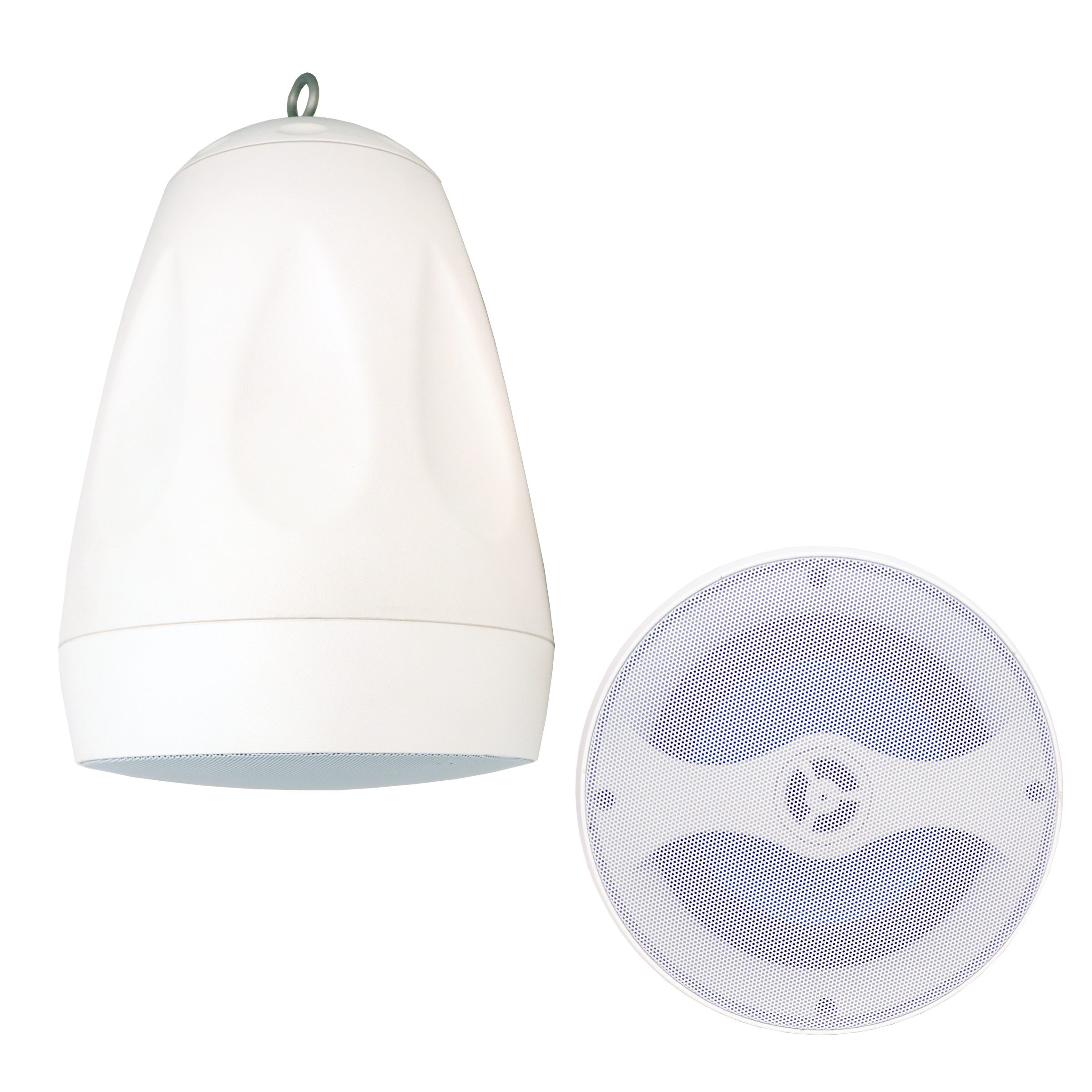

Speco - SP6PTW - 6.5″ 70/25V Premium Combo Speaker, White
Part number:
Price:
Product Overview
Versatile speakers capable of being mounted as pendant, as wall mount, or as ground mount/landscape speakers (optional mounting kits required for wall/ground). Premium construction for commercial and residential installations. Built-in selectable 70/25V transformer with settings of 32W, 16W, 8W, 4W and 8 Ohms. Includes Pendant Mount accessories. Optional mounting kit available for wall mounting or landscape mounting speaker. *Also available in black. **Products are in compliance with NDAA Section 889 Part B Guidelines.
Key Configuration
Model: SP6PTW
Installation Notes
8.1" (Dia.) x 12.6" (H)
| Full Specifications | |
| Woofer Size | 6.5 |
| Speaker Color | White |
| RMS Power ..... | 32W |
| Max. Power..... | 64W |
| Transformer Type ..... | 70/25V |

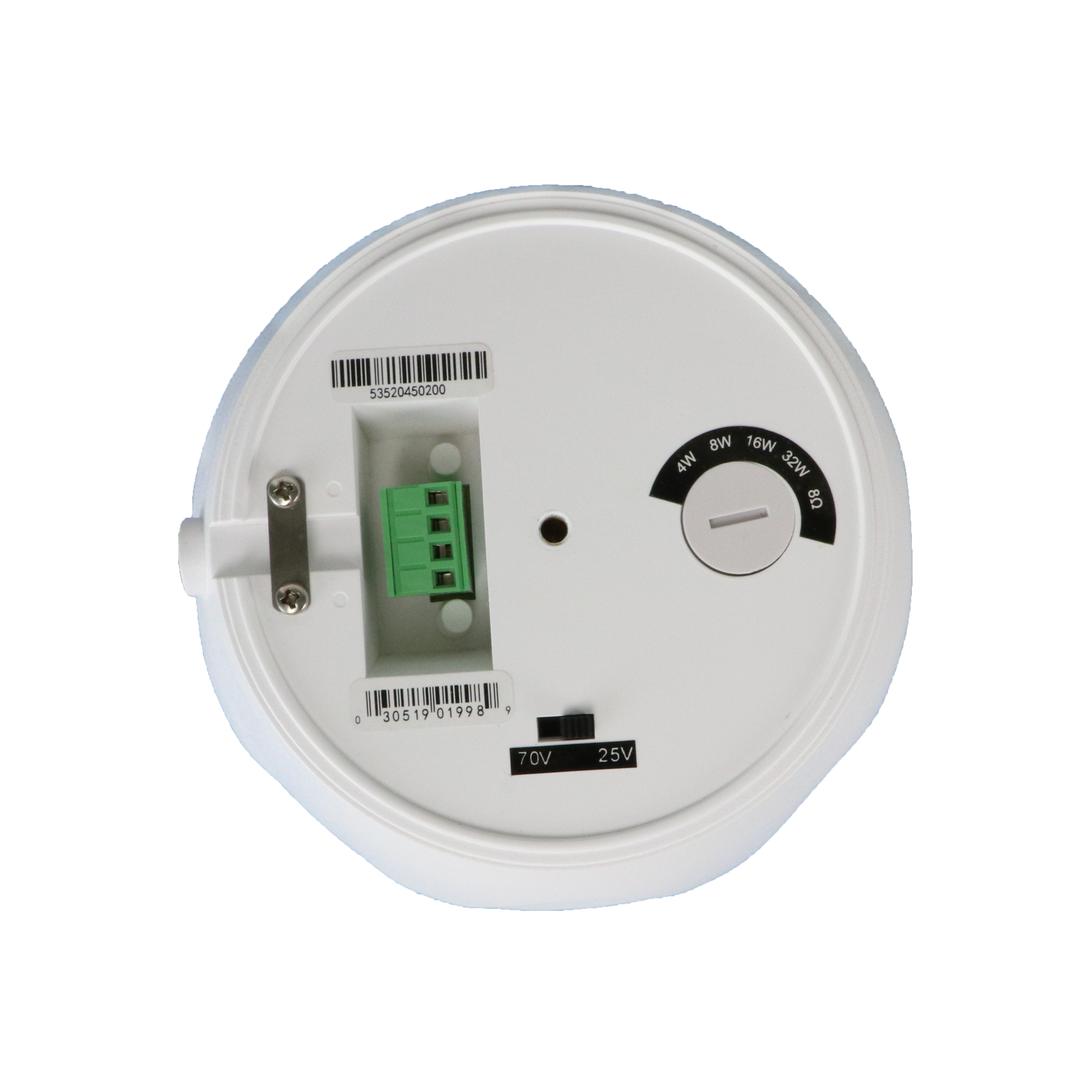

| Transformer Power Taps .... | 32, 16, 8, 4W and 8 Ohms |
| Termination Type ..... | Phoenix Connector |
| Sensitivity (1W/1M)..... | 88dB |
| Maximum SPL ..... | 92dB |
| Magnet Size & Material ..... | 15.5 oz. ferrite |
| Frequency Reponse Range ... | 98Hz~20kHz |
| Dispersion @ 1000Hz ..... | 100° |

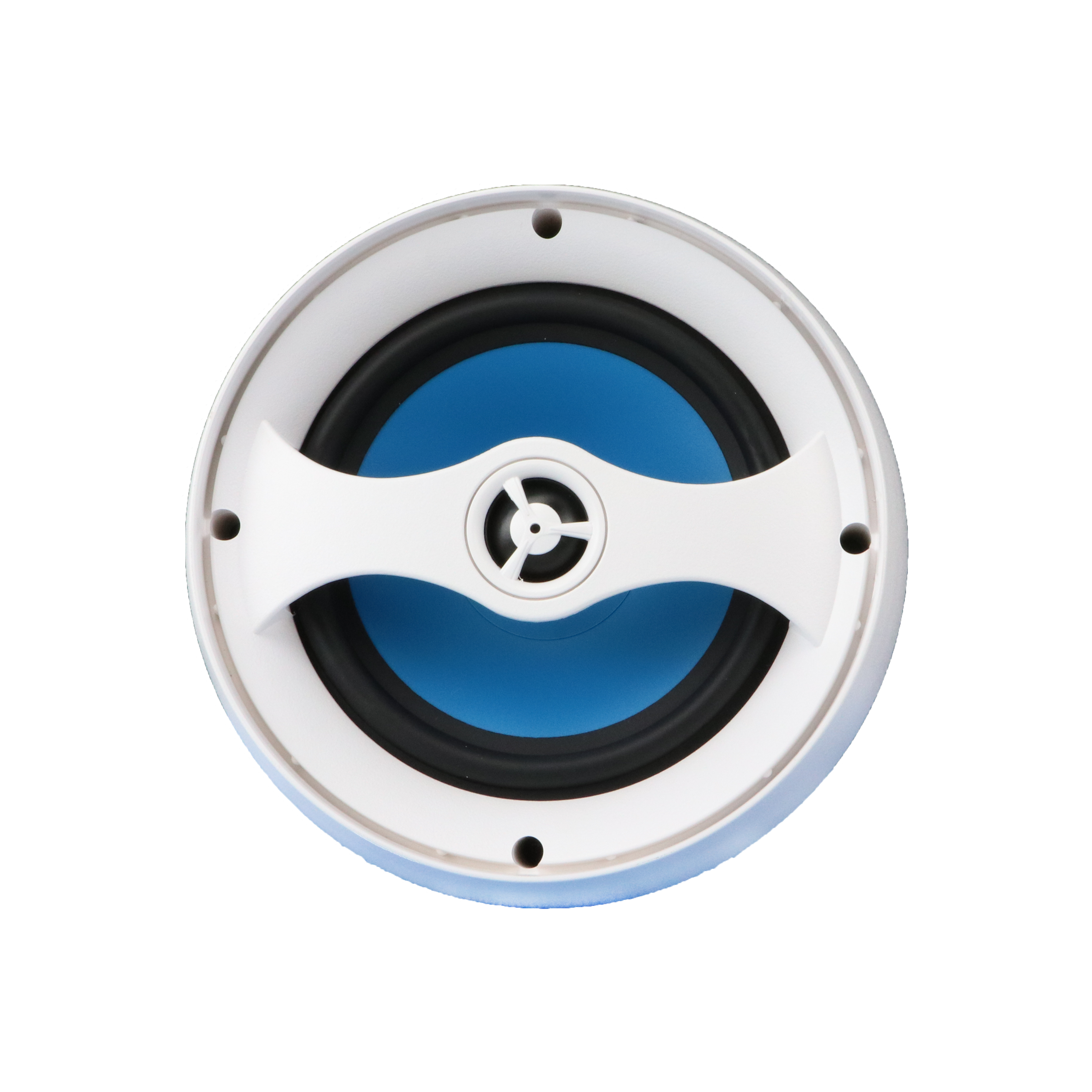

| Driver ..... | 6.5" Polypropylene Woofer, 1" Polyurethane Tweeter |
| Driver Impedance ..... | 8 Ohms |
| Unit Dimensions ..... | 8.1" (Dia.) x 12.6" (H) |
| Unit Weight..... | 7 lbs. |
| Unit Material ..... | Polypropylene Composite |
| Unit Color..... | White |
| Optional Mounting Kit..... | SP6PMNT |
Name
Description
Size
Downloads
File
Specification Sheet
0.5mb
File
User Manual
0.4mb
