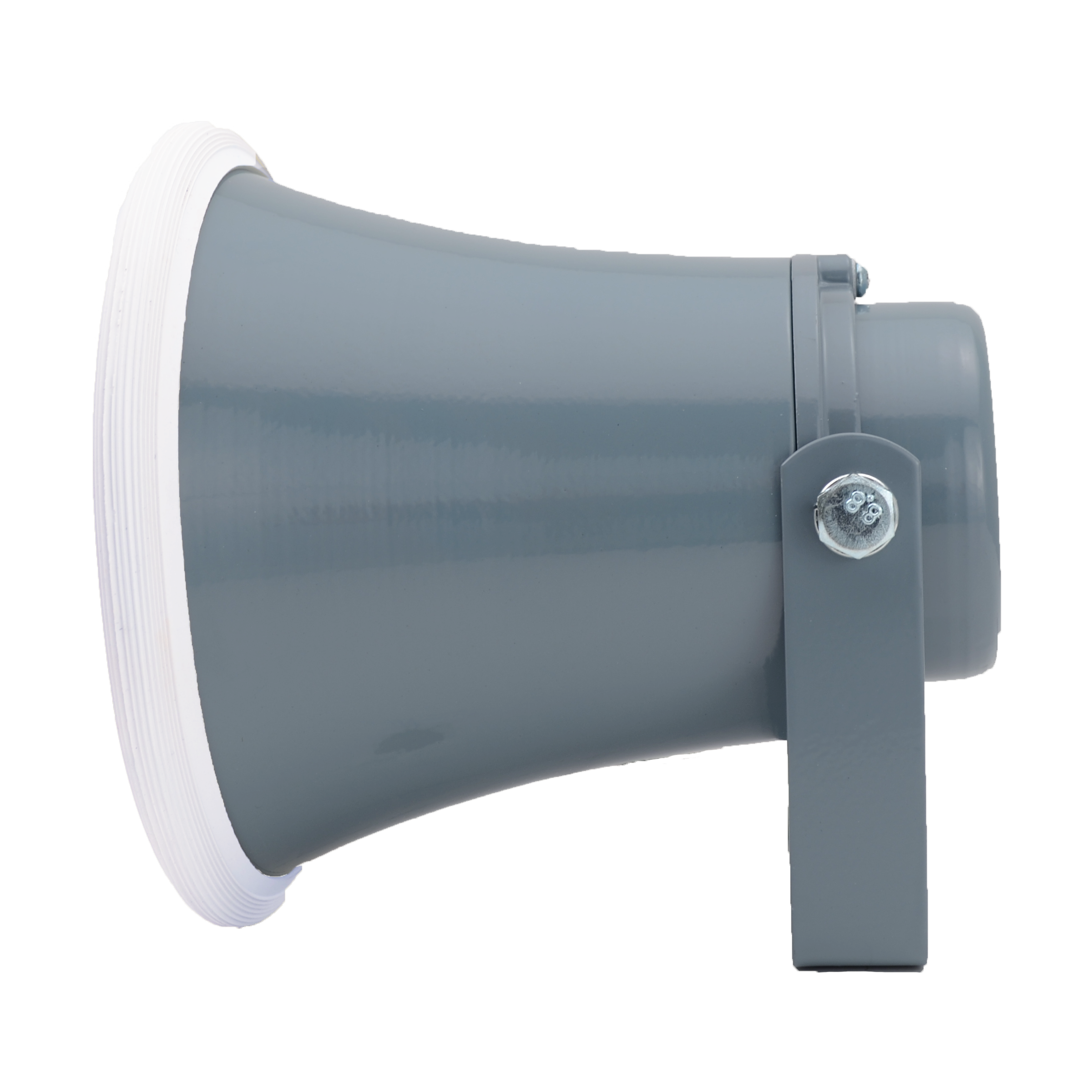

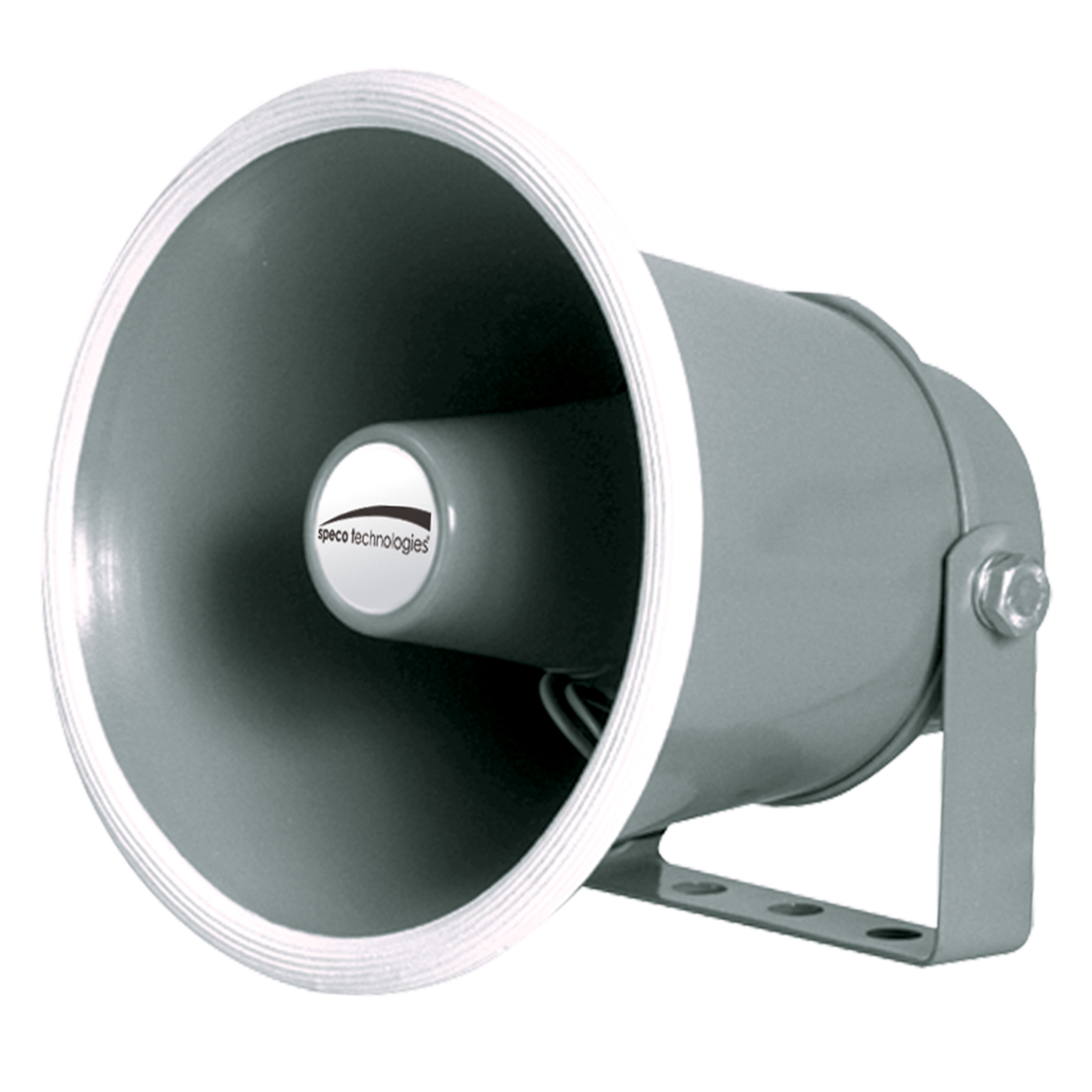

Speco - SPC104 - 6" 4 Ohm Weatherproof PA Speaker
Part number:
Price:
Product Overview
Frequency Response: 250Hz ~ 15kHz Max Power: 15W Sensitivity: 105dB 1W/1M Impedance: 4 Ohms Size: 6” Diameter x 5-7/8” Length Weatherproof aluminum construction Products are in compliance with NDAA Section 889 Part B Guidelines Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Key Configuration
Model: SPC104
Key Features
- • Weather-resistant, aluminum construction.
- • Includes mounting bracket.
- • Rubber bell protector.
- • 2 year warranty.
Installation Notes
6” Diameter x 5-7/8” Length
| Full Specifications | |
| Frequency Response | 250Hz ~ 15kHz |
| Max Power | 15W |
| Sensitivity | 105dB 1W/1M |
| Impedance | 4 Ohms |
| Size | 6” Diameter x 5-7/8” Length |
| RMS Power | 10W |
| Termination Type | Wire strip |
| Sensitivity (1W/1M) | 105dB |
| Maximum SPL (Pmax/1m) | 108dB |
| Driver Impedance | 4 Ohms |
| Magnet | 5.4 oz. ferrite |
| Frequency Response Range | 250Hz ~ 15kHz |
| Dispersion@100Hz | 65º conical |
| Speaker Dimensions | 6” (Dia.) x 5.9” (D) |
| Weight | 1.9 lbs. |
| Material | Aluminum |
| Color | Grey |
