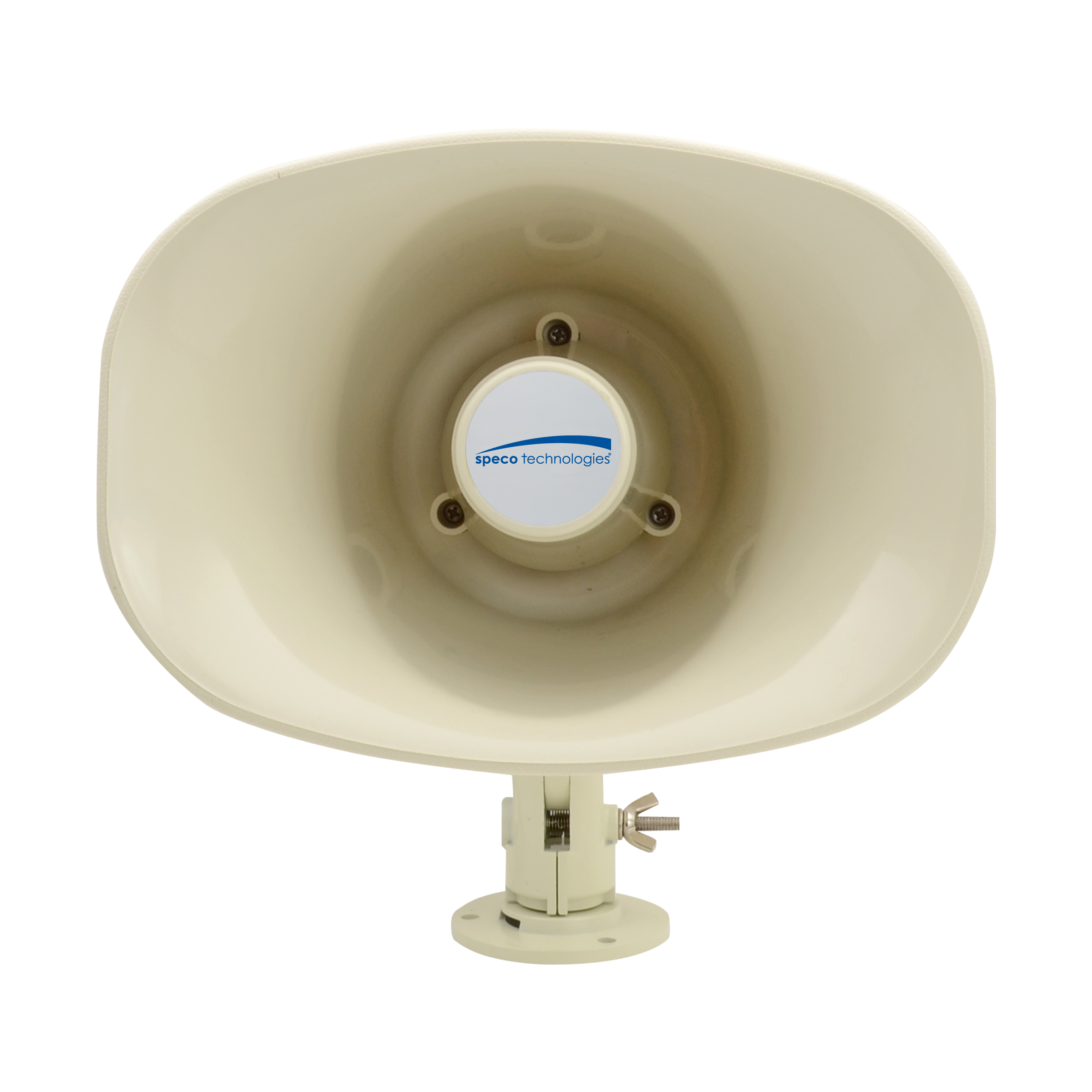

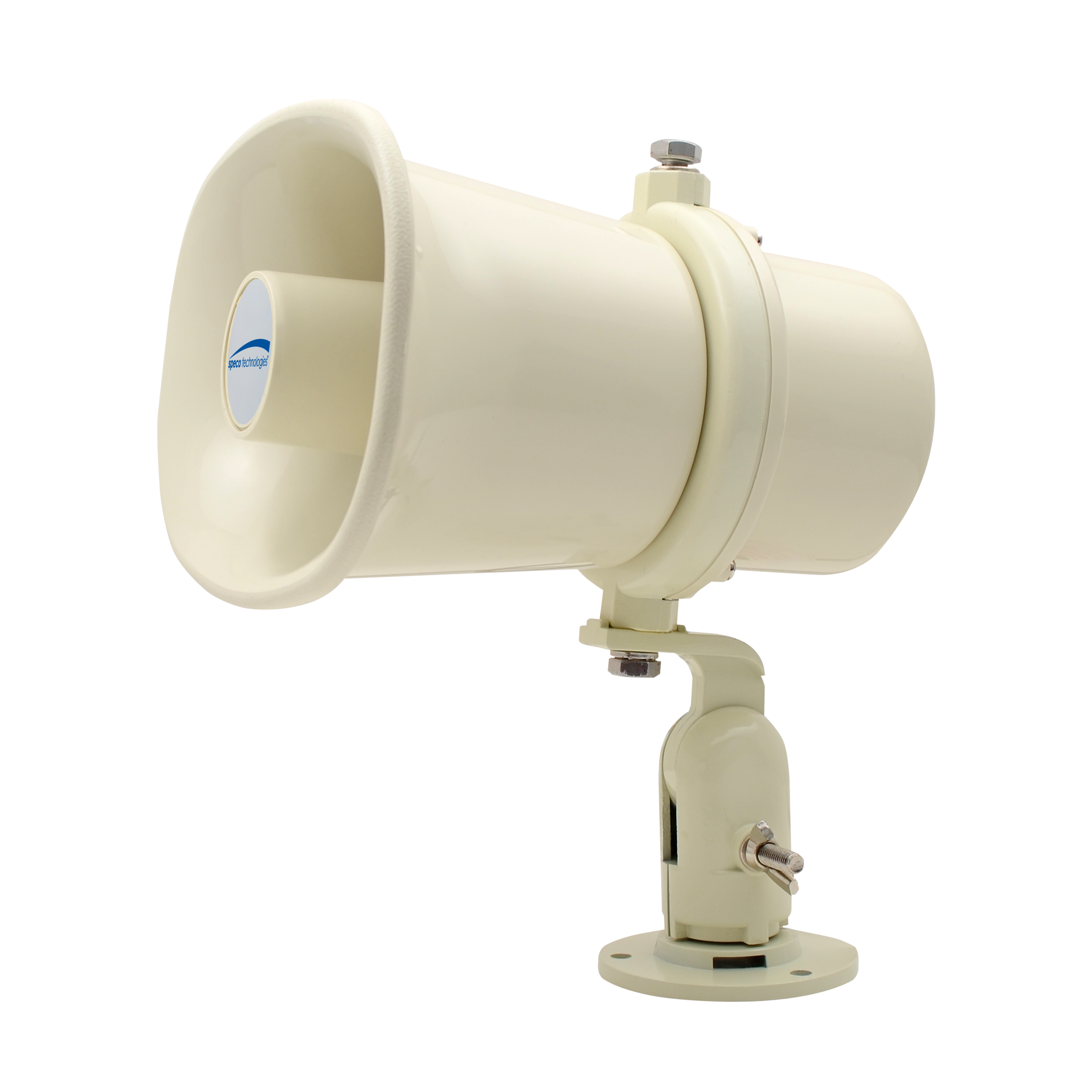

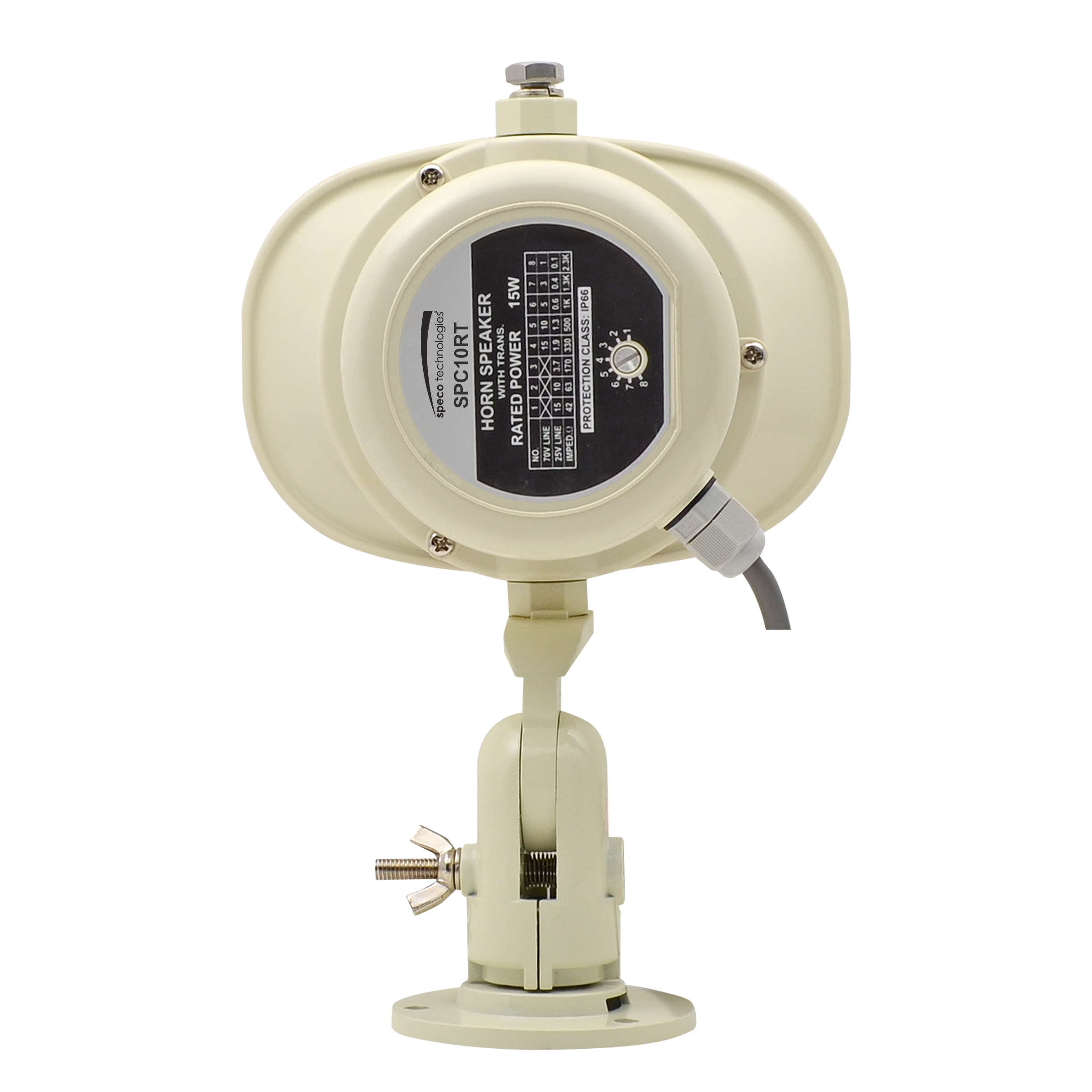

Speco - SPC10RT - 5" x 7" Weatherproof Speaker with Transformer
Part number:
Price:
Product Overview
• Stylish appearance • Weather-resistant, ABS construction • Includes mounting bracket • 2 year warranty *also available in 15W and 30W **Products are in compliance with NDAA Section 889 Part B Guidelines 7” x 5” P.A. Horn Speaker - 70/25V
Key Configuration
Model: SPC10RT
Installation Notes
7” (W) x 5” (H) x 5” (D)
| Full Specifications | |
| Speaker Color | Off-White; Khaki (Specification Sheet) |
| Specifications SPC10RT | |
| RMS Power | 10W |
| Max. Power | 20W |
| Transformer Type | 70/25V |
| Transformer Power Taps | 70V: 10W, 5W, 3W, 1W 25V: 10W, 5W, 1.3W, 0.6W, 0.4W, 0.1W |
| Termination Type | Wire strip |
| Sensitivity (1W/1M) | 103dB |
| Maximum SPL (Pmax/1m) | 113dB |
| Driver Impedance | 8 Ohms |
| Magnet | 4.1 oz. |
| Frequency Response Range | 500Hz ~ 15kHz |
| Dispersion@100Hz | 65º conical |
| Speaker Dimensions | 7” (W) x 5” (H) x 5” (D) |
| Weight | 3 lbs. |
| Material | ABS |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
File
User Manual
0.1mb
