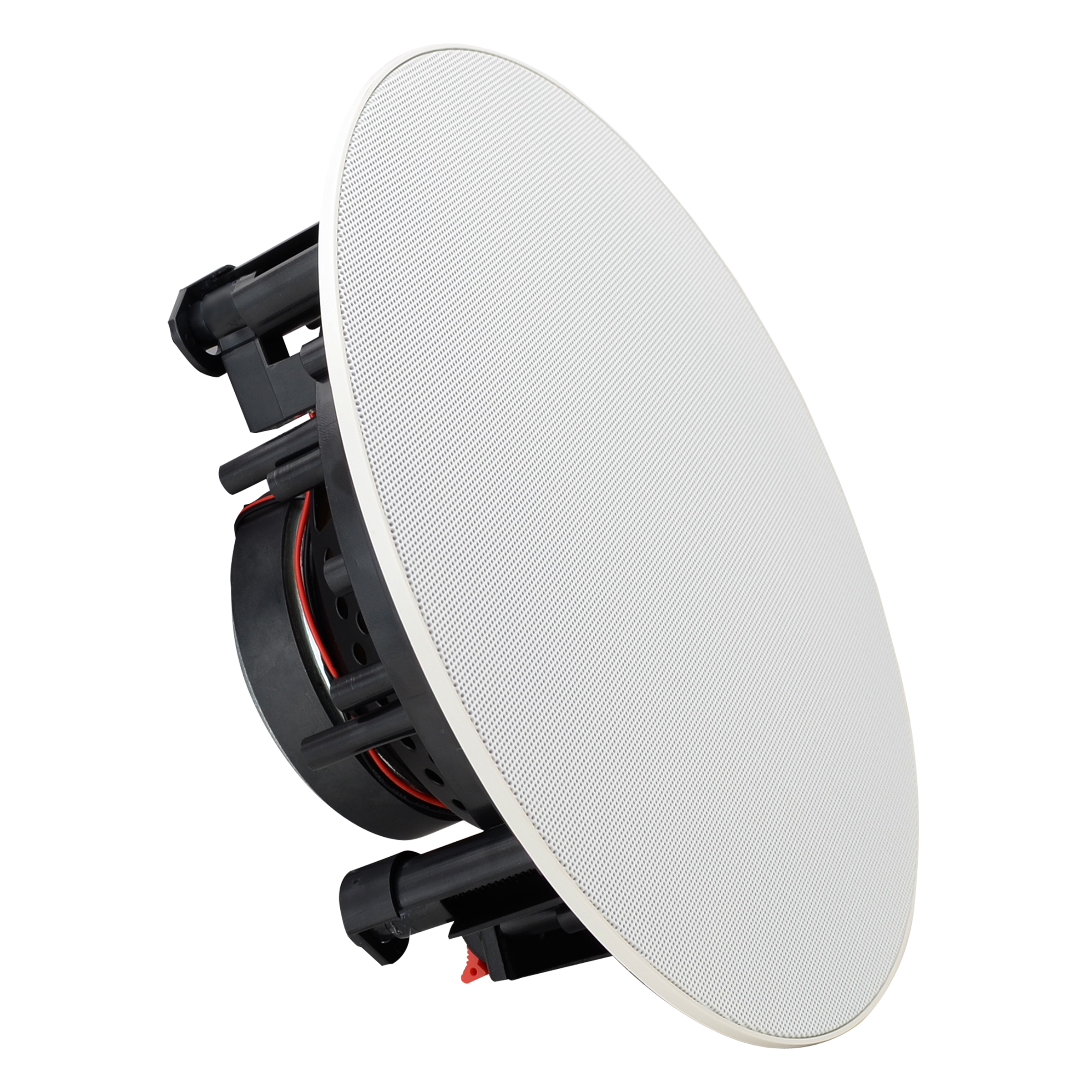

Speco - SPCDC6 - 6.5″ Custom Designer Series In-Ceiling Speaker (Pair)
Part number:
Price:
Product Overview
• Integrated C-clamp mounting system • Polymer woofer cones for improved acoustic response • Liquid-cooled titanium anodized tweeters with a minimum diffraction pivoting island • Powder coated grille may be painted to match any décor • Lifetime warranty Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: SPCDC6
Installation Notes
9” (Dia.) 3.46” (D)
| Full Specifications | |
| Speaker Color | White |
| Tweeter | 1/2” (zero diffraction) pivoting poly-laminate, liquid cooled dome |

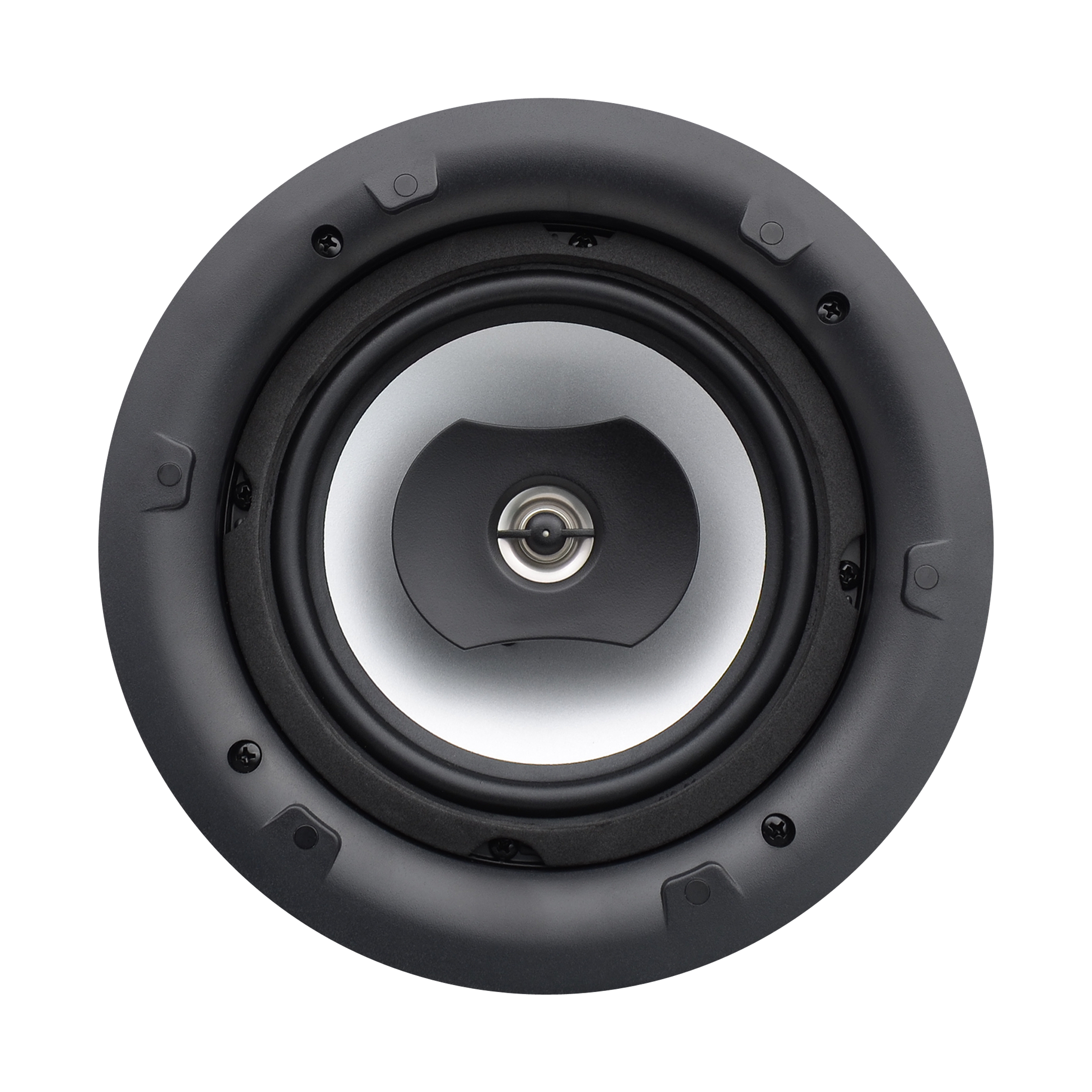

| Woofer | 6.5” mica filled poly laminate cone with rubber surround |
| Crossover | 6dB per octave electro-acoustic |

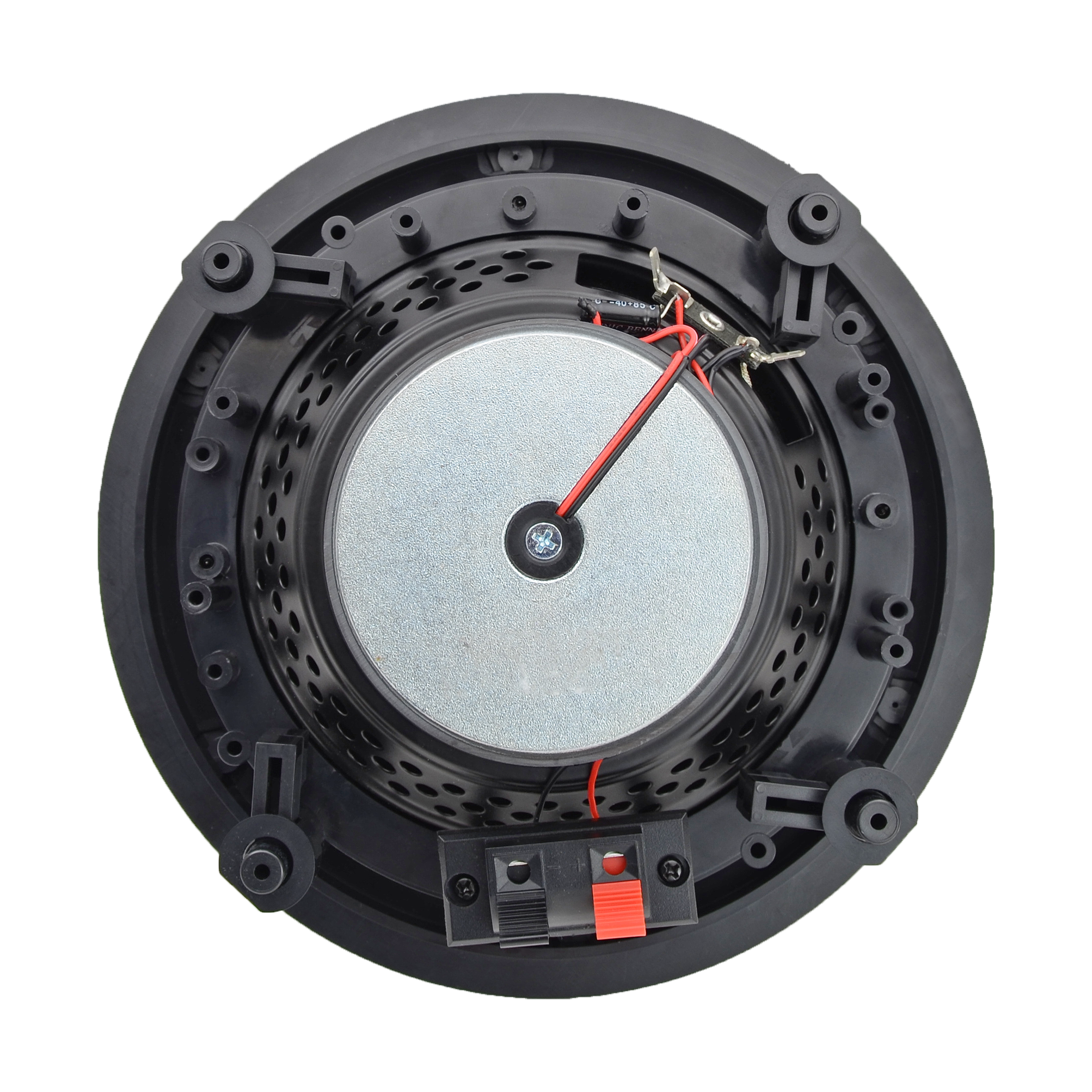

| Input Connection | Push terminals |
| Recommended Amplifier Power | 5W to 65W (100 watts peak) |
| Impedance | 8 Ohms |
| Frequency Response | 48Hz ~ 21kHz |
| Sensitivity (1W/1M) | 90dB |
| Baffle | Poly-carbonate for reduced resonance with C-clamp mounting system |

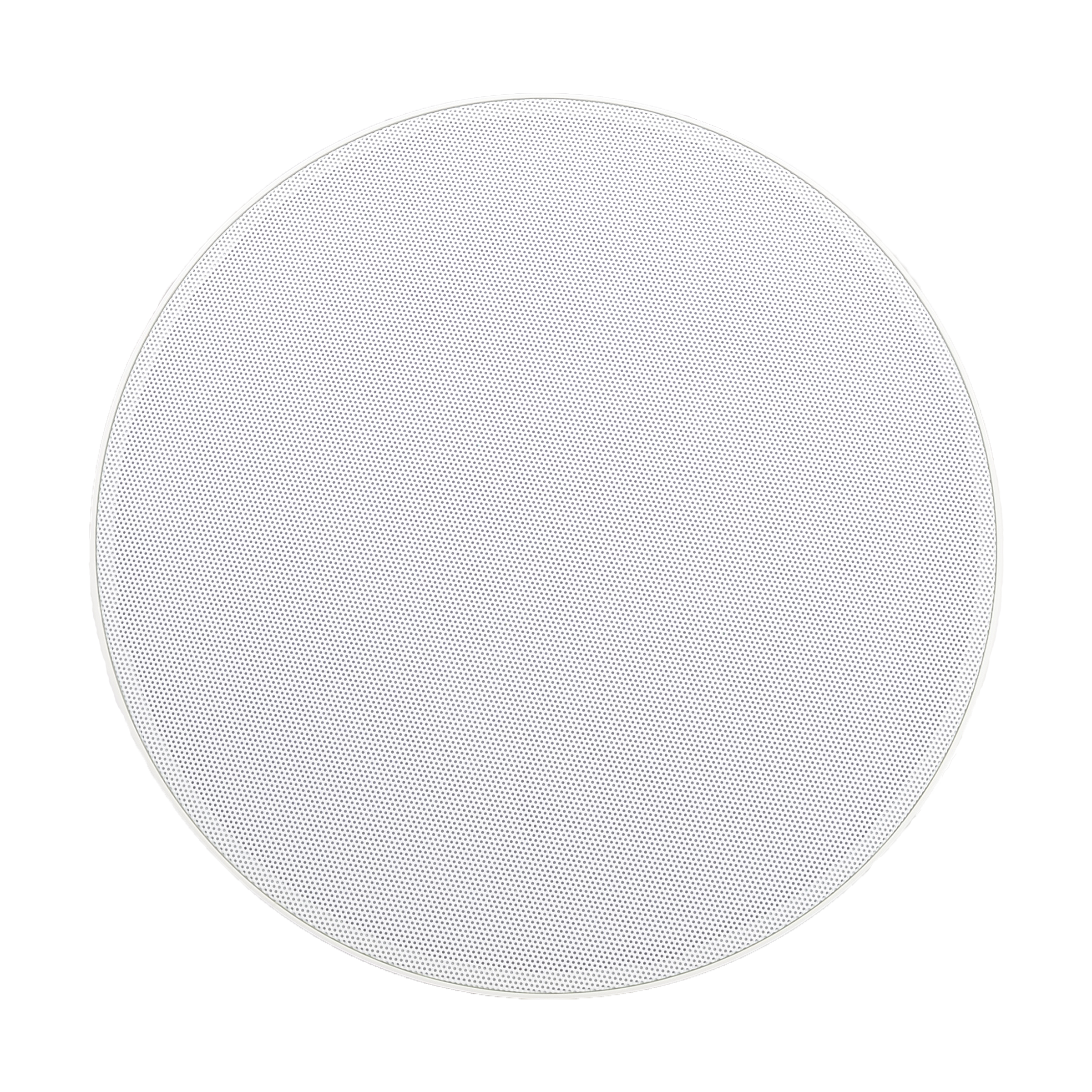

| Grille | Corrosion resistant powder coated metal, magnetic |
| Outside Dimensions | 9” round (Dia.) |

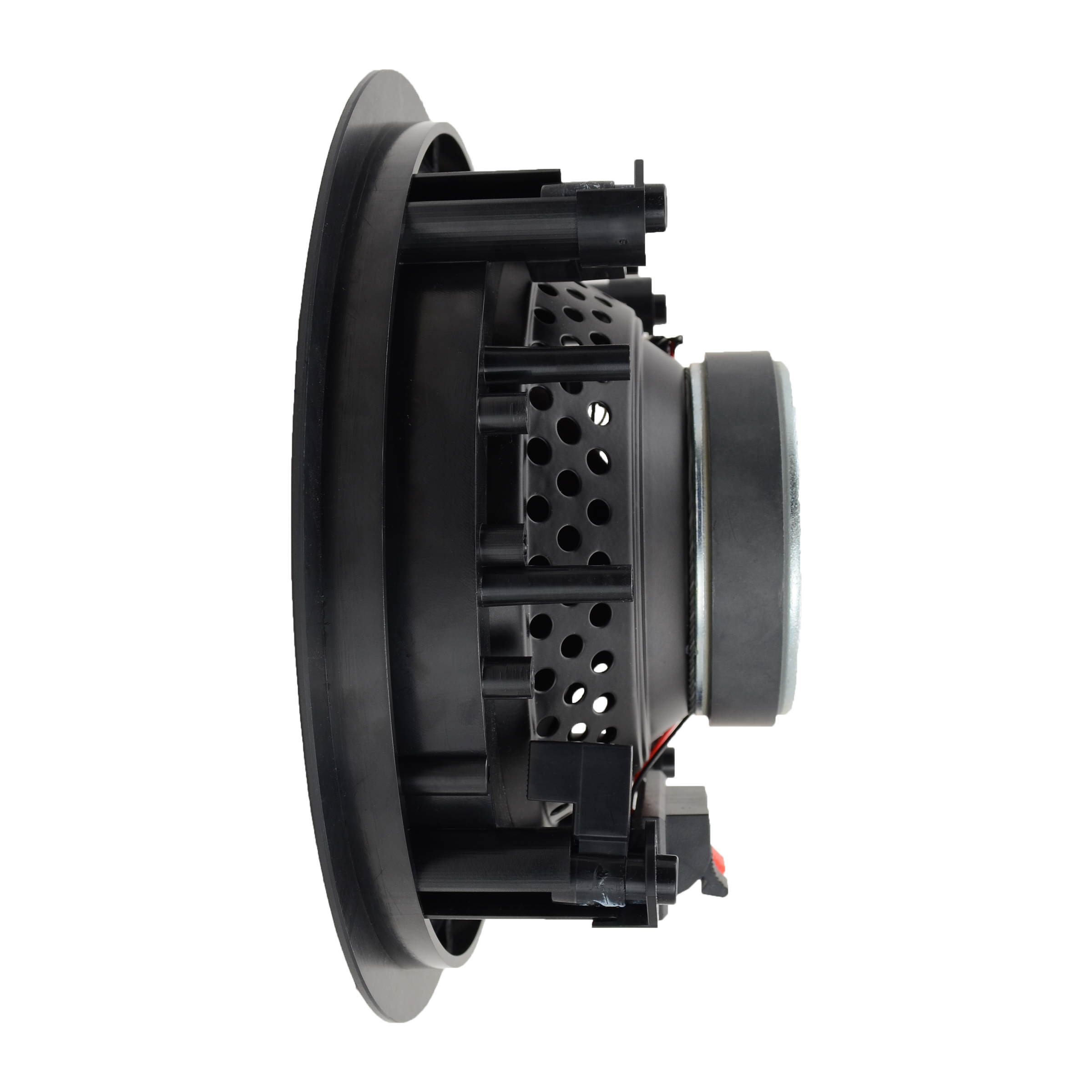

| Depth | 3.46” (mounted in 1/2” drywall) |
| Retrofit Cutout Diameter | 7.75” (use template before cutting) |
| NDAA COMPLIANT | *Products are in compliance with NDAA Section 889 Part B Guidelines |
Name
Description
Size
Downloads
File
Specification Sheet
0.6mb
File
User Manual
0.9mb
