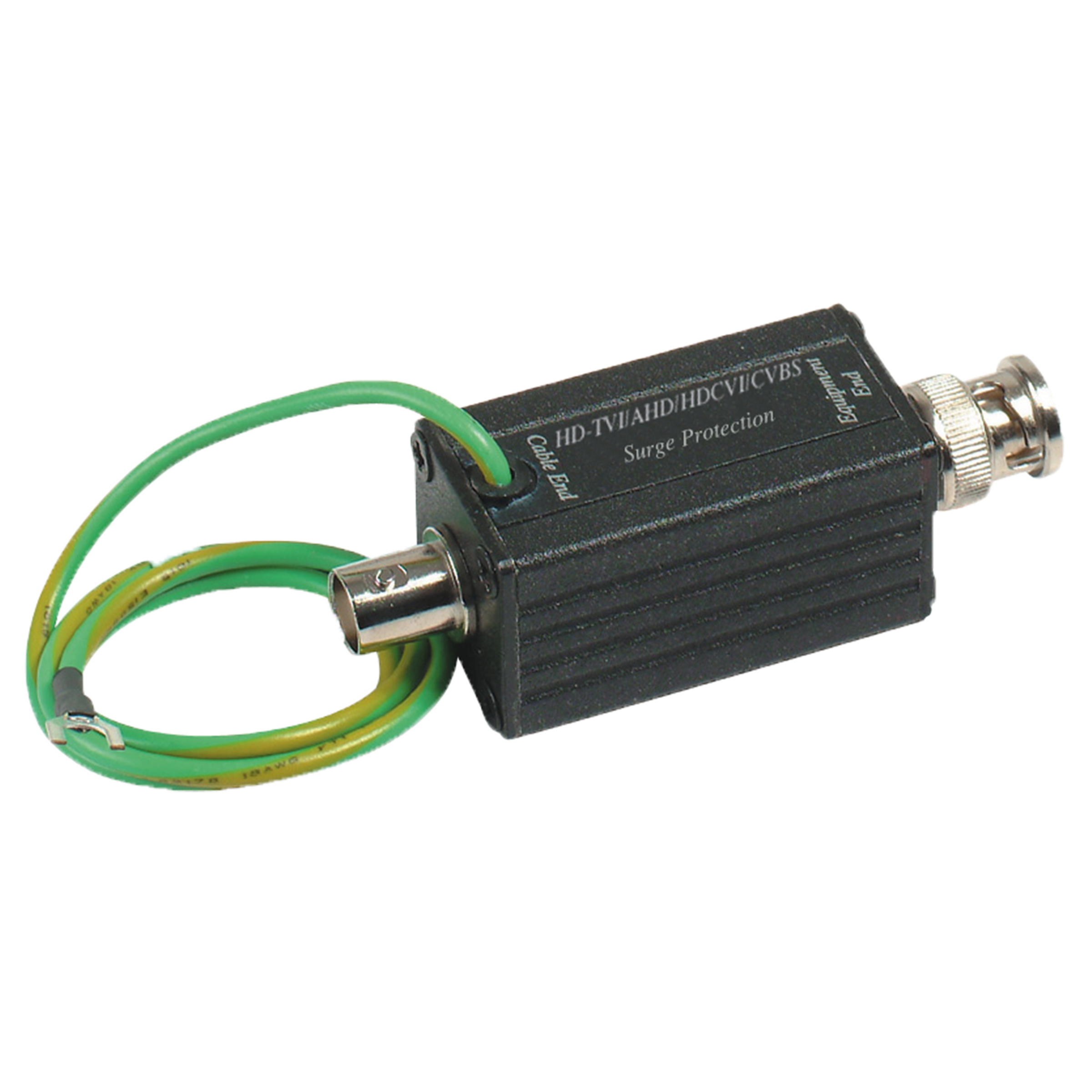

Speco - SPCOAX2 - Coaxial Video Surge Protector, TVI, CVI, AHD, 960H
Part number:
Price:
Product Overview
• lBNC male to BNC female • lProvides protection for analog HD-TVI, HDCVI, AHD, and CVBS cameras • lComply with IEC 61000-4-5 • lBuilt in EFT (impulse noise) lightning protection • lSold each but recommended to use in pairs to protect both camera and recorder **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: SPCOAX2
Installation Notes
3.12" × 1" × 1" (79.3 × 25.4 × 25.4 mm)
| Full Specifications | |
| SKU | SPCOAX2 |
| Protection Type | Lightning Protection |
| Connector Type | lBNC male to BNC female |
| Compliance | IEC 61000-4-5 |
| Input and output interface | BNC (Male) × 1 & BNC (Female) × 1 |
| Surge Protection Attack Time | <1nS |
| Starting voltage surge | 6V |
| Maximum Clamping Voltage | 25V |
| Reference Standard | IEC 61000-4-5 |
| Signal insertion loss | 0.8db @ 42 MHz |
| Maximum discharge current | 15 KA (MAX) |
| Environmental Specifications | Operation: 32 to 131 °F (0 to 55 ), Storage: -4 to 185°F (-20 to 85 ), Humidity: up to 95% |
| Frequency Response Range | 140Hz - 20kHz |
| Dimensions (L × W × H) | 3.12" × 1" × 1" (79.3 × 25.4 × 25.4 mm) |
| Weight | .2 lbs (75g) |
