Speco - SPCT8T - 8" Ceiling Tile Speaker w/ 70/25V Transformer & Cross Tee
Part number:
Price:
Product Overview
Easy select transformer dial, 25V or 70V selector switch, fits directly into a 2’x2’ ceiling tile grid, smooth vent facade design, includes 2’ rail for mounting in a 2’ x 4’ ceiling grid, lifetime warranty. This is manufacturer documentation for product model SPCT8T.
Key Configuration
Model: SPCT8T
Key Features

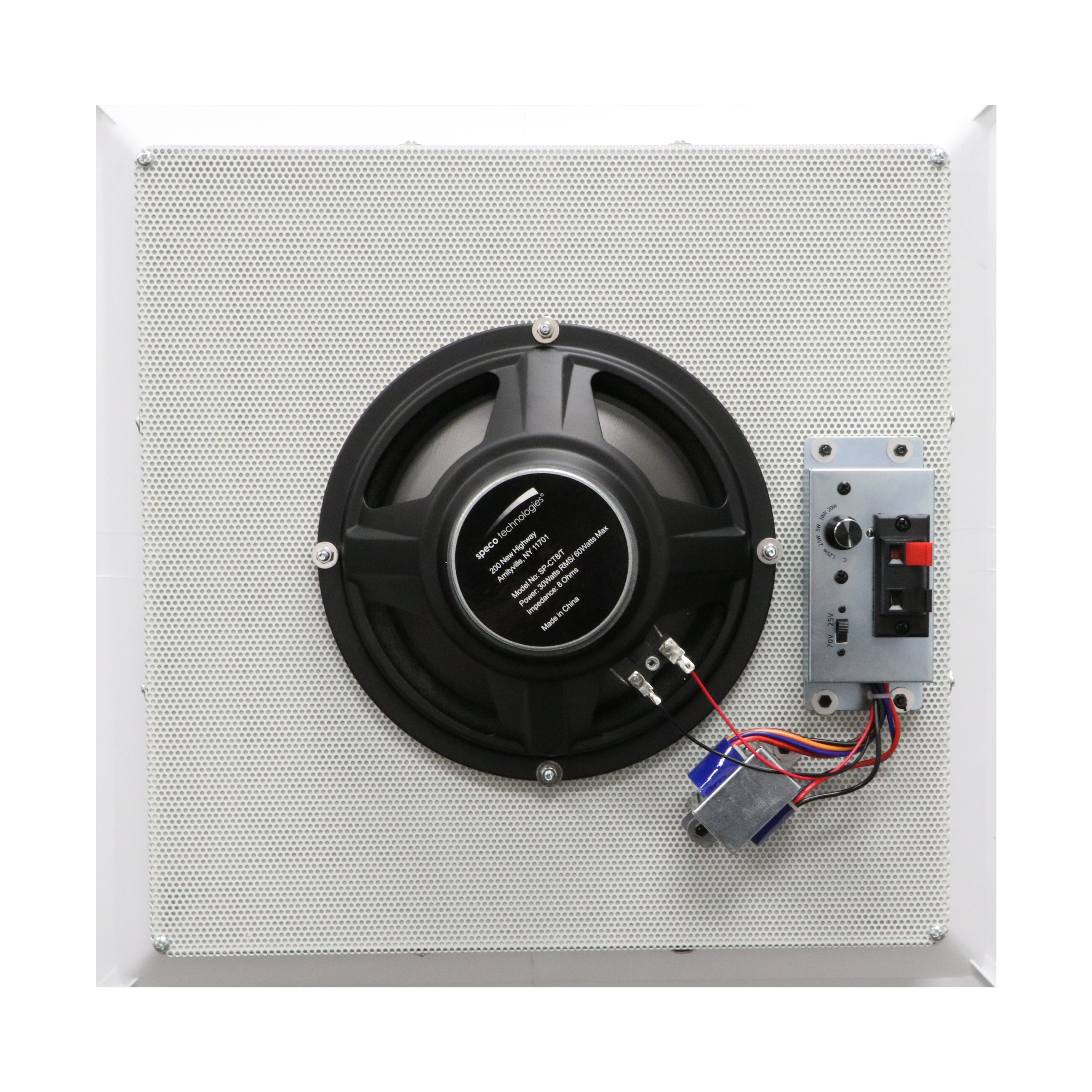

- • Easy select transformer dial.
- • 25V or 70V selector switch.
- • Fits directly into a 2’x2’ ceiling tile grid.

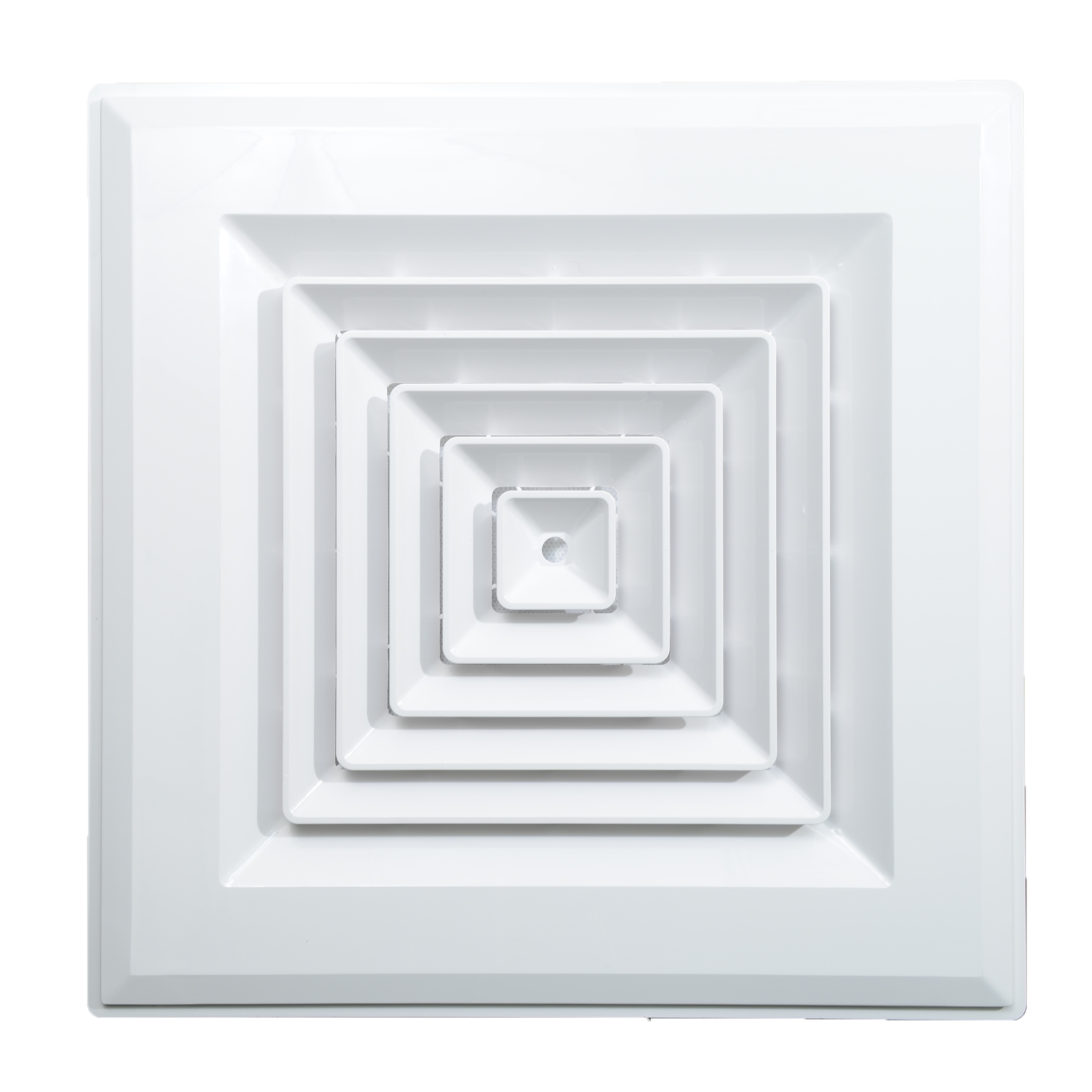

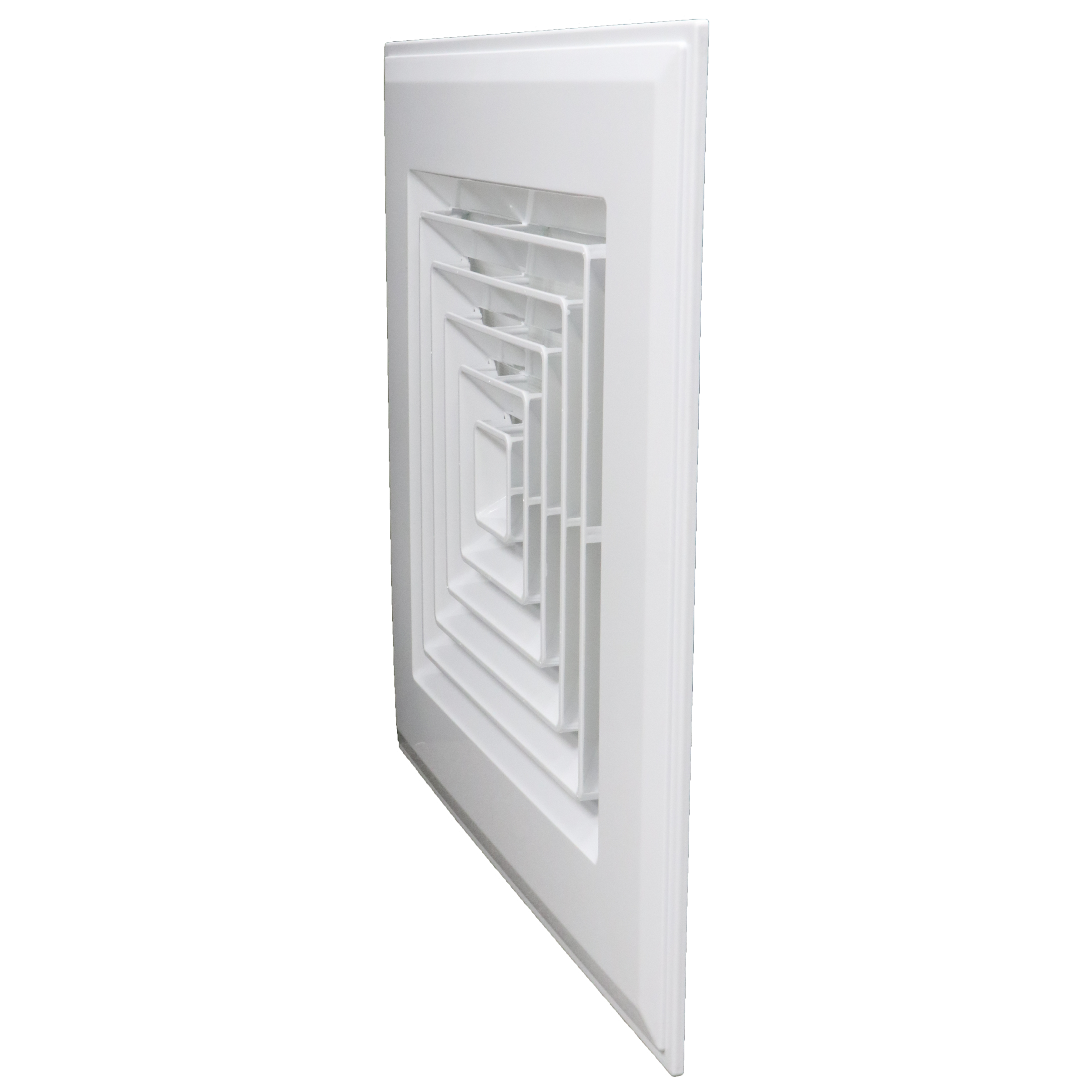

- • Smooth vent facade design.
- • Includes 2’ rail for mounting in a 2’ x 4’ ceiling grid.
Installation Notes

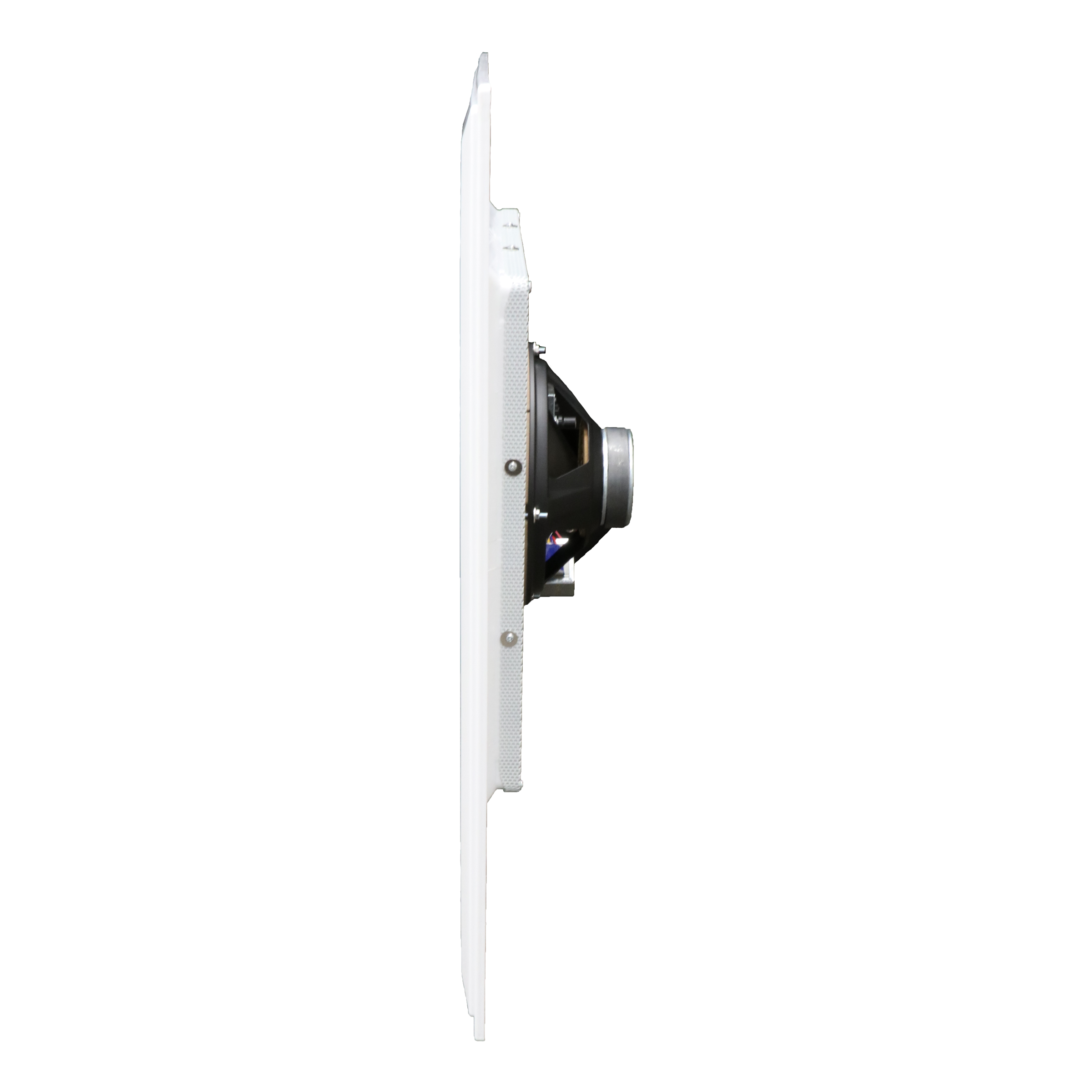

23.78” (W) x 23.78” (H) x 4.94” (D)
| Full Specifications | |
| Woofer Size | 8 |
| RMS Power | 30W |
| Max. Power | 60W |
| Transformer Type | 70/25V (selectable) |
| Transformer Power Type | 20W, 10W, 5W, 2.5W, 1.25W & 8 Ohms |
| Termination Type | Press terminal |
| Sensitivity (1W/1M) | 89dB |
| Maximum SPL (Pax/1M) | 97.1dB |
| Driver Impedance | 8 Ohms |
| Magnet | 10 oz. ferrite |
| Frequency Response Range | 50Hz ~ 20kHz |
| Dispersion @ 1000Hz | 160º Conical |
| Driver | 8” polypropylene woofer, 0.75” Mylar tweeter |
| Speaker Dimensions | 23.78” (W) x 23.78” (H) x 4.94” (D) |
| Minimum Mounting Depth | 6.5” (Dia.) |
| Weight | 7.26 lbs. |
| Material | Baffle: High impact polystyrene |
| Color | White |
