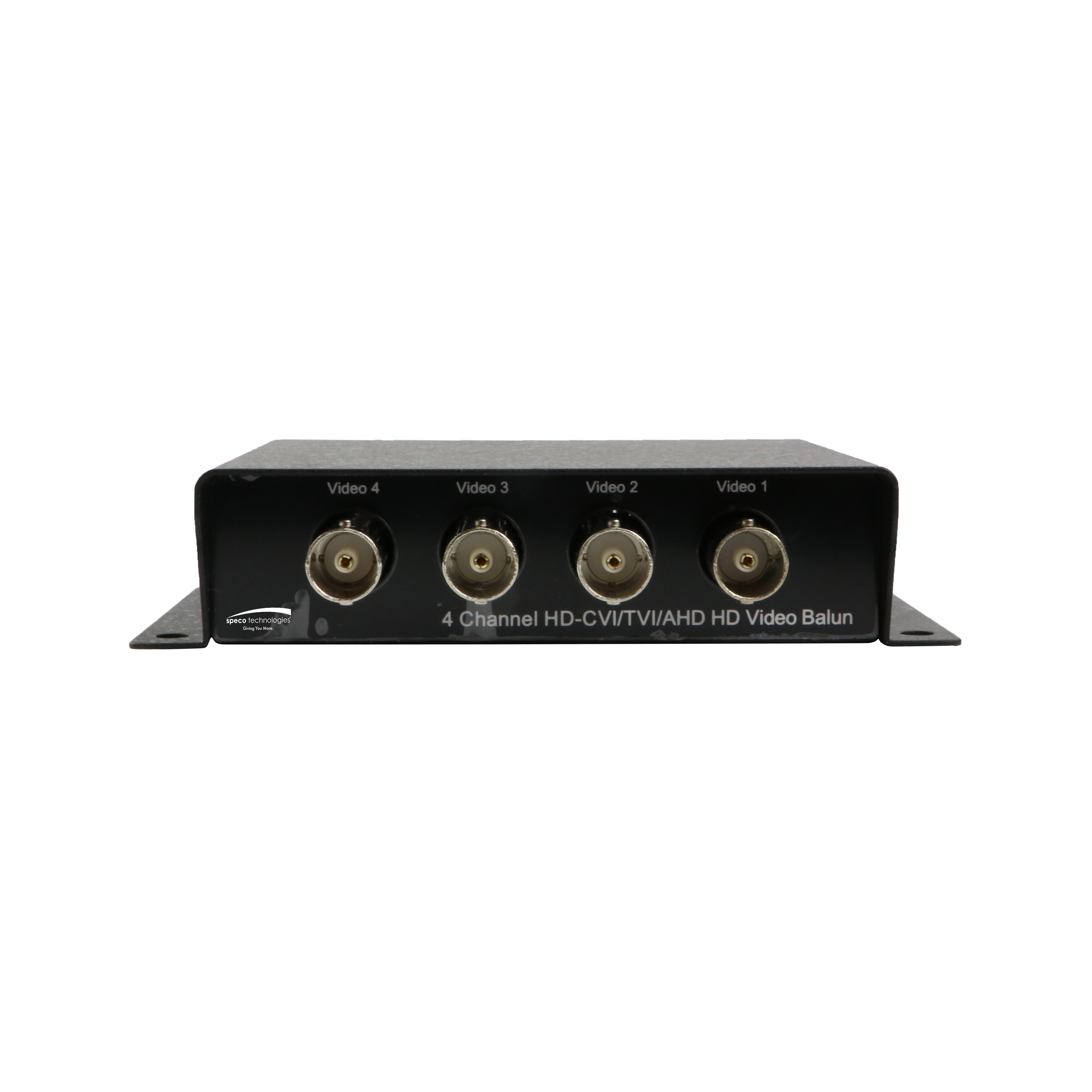

Speco - TVIUTP4 - 4-Port HD-TVI Video Balun
Part number:
Price:
Product Overview
HD-TVI Resolution up to 5MP. HD-TVI Signal extension up to 820’ (250M) over UTP CAT5e/6 depending on resolution and cable quality. Also supports AHD, HD-CVI, and standard analog. Male BNC to terminal block design. No power required. Built-in ESD, EFT (impulse noise) and transient protection. This is manufacturer documentation for product model TVIUTP4.
Key Configuration
Model: TVIUTP4
Installation Notes
4.3 x 3.2 x 1" (110 x 80.6 x 26.3mm)
| Full Specifications | |
| Resolution | up to 5MP |
| Signal extension | up to 820’ (250M) over UTP CAT5e/6 |
| Design | Male BNC to terminal block |
| Power | No power required |
| Protection | Built-in ESD, EFT and transient protection |
| Support | |
| Video Format | HD-TVI, AHD, HDCVI, CVBS |
| Max. Transmission Distance | 5MP |
| HD-TVI Transmission Distance | Up to 820' (250M)@2MP |
| Bandwidth | 50Hz to 60MHz (-3dB) |
| Ports & Interfaces | |
| Video Input/ Output | 4 x BNC (1V p-p, 75 Ω ) |
| Link Interface | 1 x 8-Pin Terminal (UTP), 1 x RJ45 |
| ESD Protection | 30 KV(Air), 15 KV (Contact), IEC 61000-4-2 |
| EFT Protection | 40A(5/50ns), IEC 61000-4-4 |
| Lightning Protection | 2A (8/20 μ s), IEC 61000-4-5 |
| Response Time | <1 nS |
| Ambient Temperature | |
| Operation | 32 to 131°F (0 to 55°C) |
| Storage | -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 95% |
| Physical Characteristics | |
| Dimensions | 4.3 x 3.2 x 1" (110 x 80.6 x 26.3mm) |
| Weight | 0.4 lbs (195g) |
