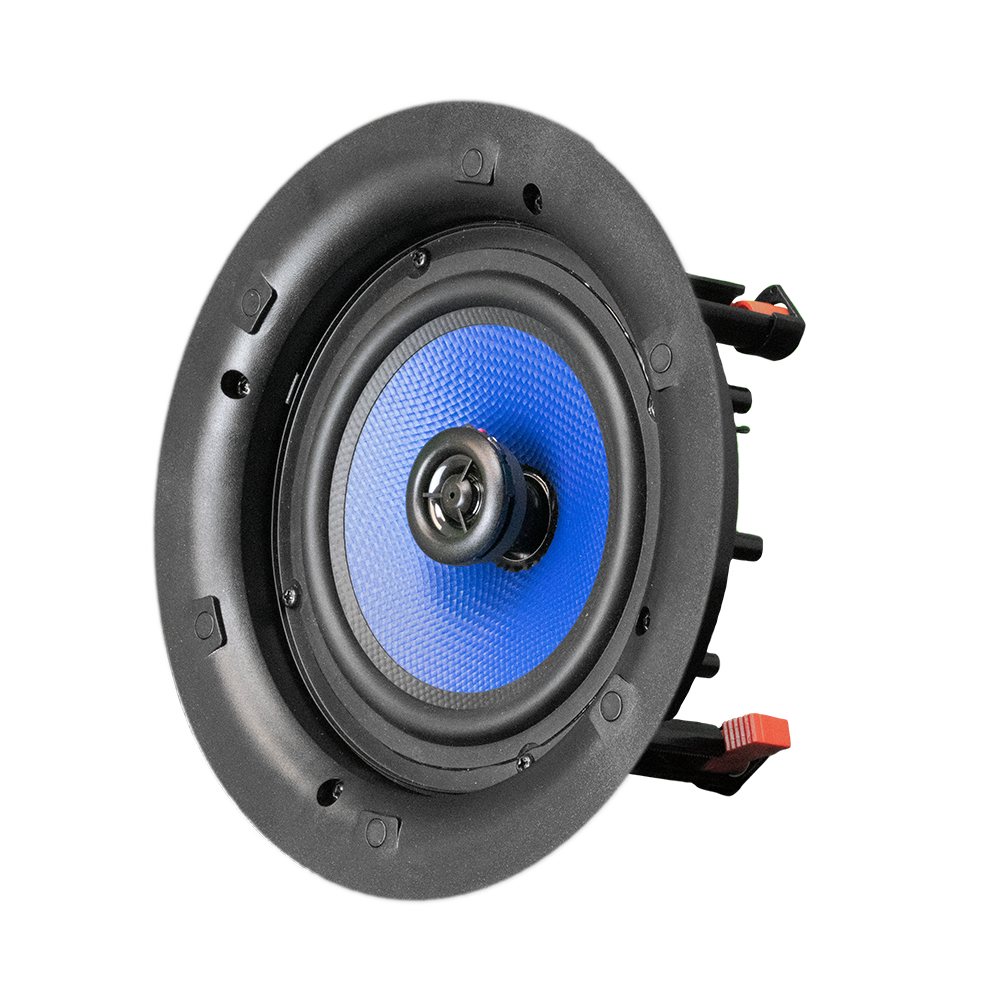

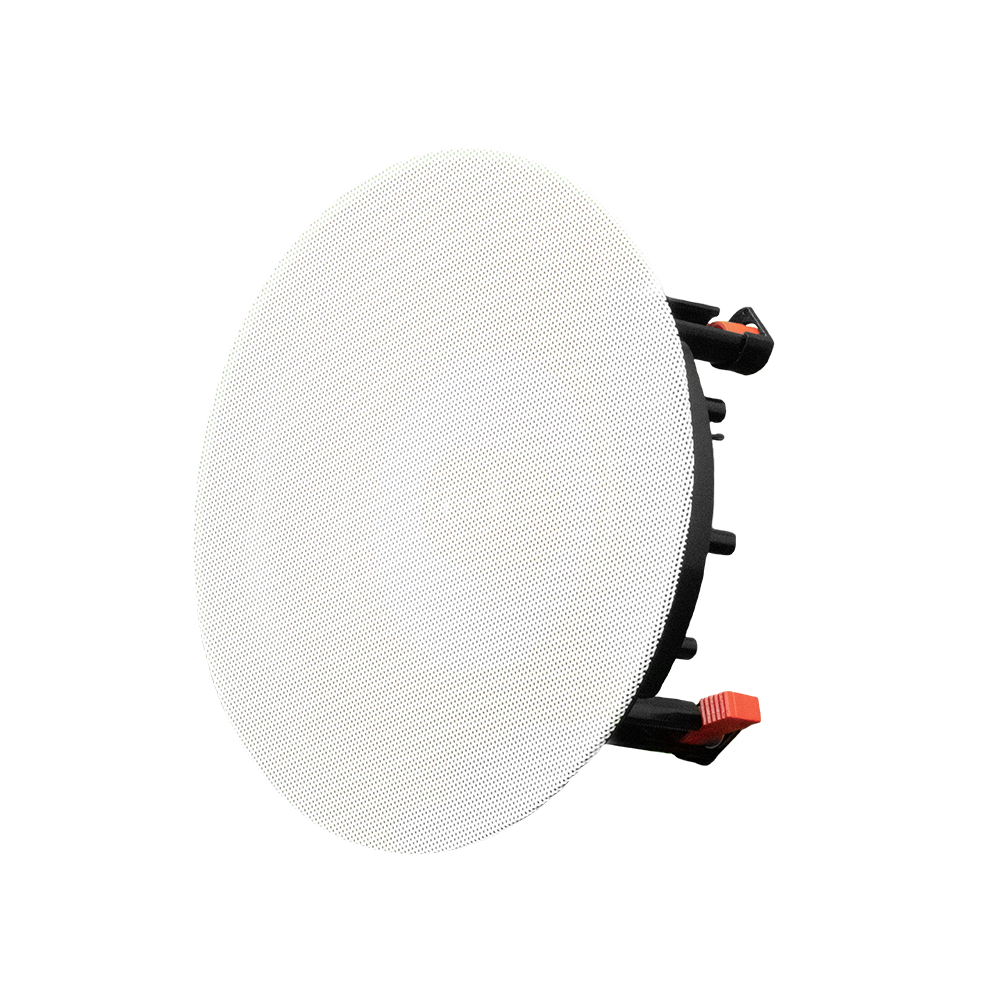

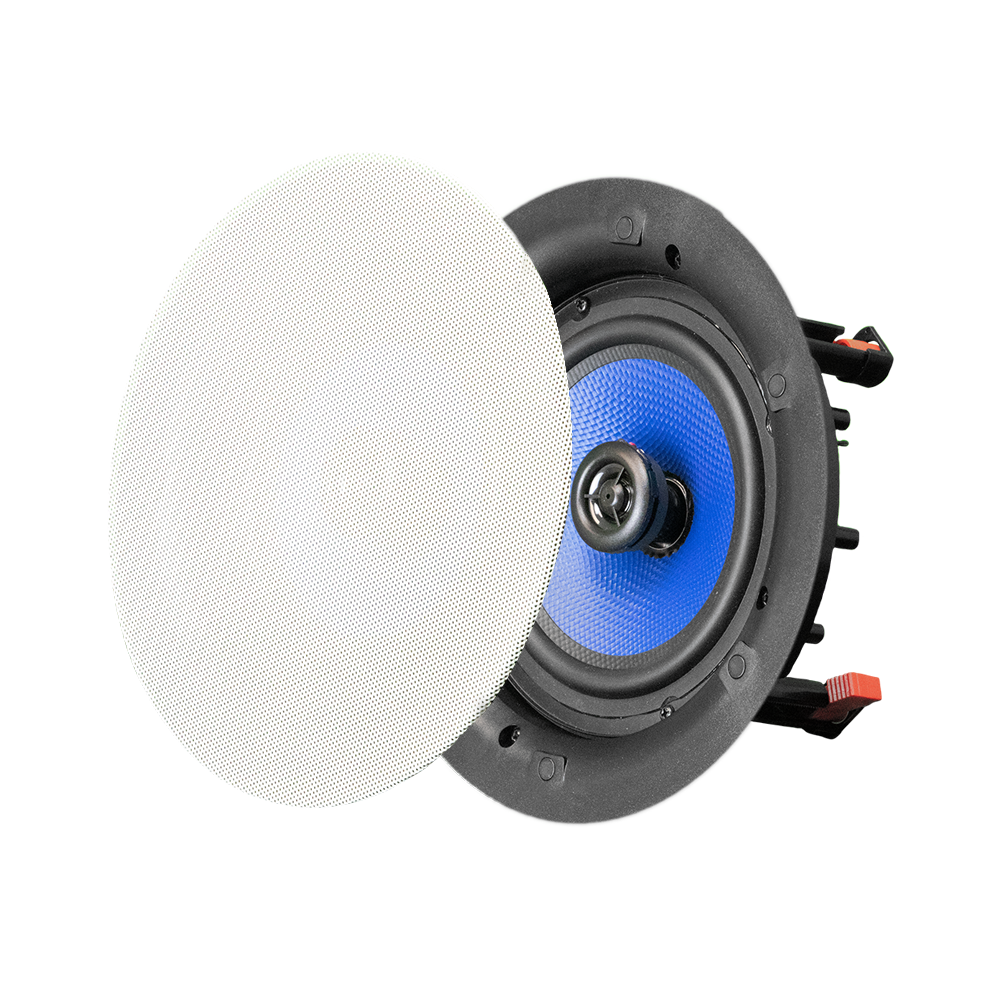

Speco - SPG6MT - 6.5” 25/70V In-Ceiling Speaker
Part number:
Price:
Product Overview
- Magnetic grille for quick and easy installations - 70 or 25V transformer with settings up to 5W - NDAA compliant - Optional back can for protection and improved sound SPG6MTCAN (Sold separately) - Sold each
Key Configuration
Model: SPG6MT
Installation Notes
9.25" (Dia.) x 3.74" D
| Full Specifications | |
| Speaker Color | White |
| RMS Power | 15W |
| Max Output Power | 22.5W |
| Transformer Type | 70/25V |
| Transformer Power Taps | 5, 2.5, 1W |
| Termination Type | Colored leads |
| Sensitivity (1W/1M) | 86dB |
| Maximum SPL (Pmax/1M) | 93dB |
| Driver Impedance | 8 Ohms |
| Magnet | 8 oz. Ferrite |
| Frequency Response Range | 70Hz ~ 20kHz |
| Disperson @ 1000Hz | 150 degrees |
| Drivers | 6.5" Polypropylene Woofer 0.5" Mylar Dome Tweeter |
| Speaker Dimensions | 9.25" (Dia.) x 3.74" D |
| Mounting Dimensions | 8" (Dia.) x 3.5" D |
| Weight | 2.9 Lbs. |
| Material | Baffle: ABS Grille: Steel |
| Color | White Grille, Black baffle |
Name
Description
Size
Downloads
File
Quick Installation Guide
0.5mb
File
Specification Sheet
1.4mb
File
User Manual
0.7mb
