Product Overview
IP Audio Encoder
Key Configuration
Model: SPIP200M
Key Features
- • Turn your speakers into network IP Speakers.
- • Works with most 8 Ohm Speakers.
- • Supports Two-way communication.
- • Supports 48k OPUS audio codec.
- • Compatible with SIP and ONVIF.
Installation Notes
4.4" x 4.1" x 1.14"
| Specifications | |
| Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Audio Codec | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
| Network Interface | RJ45, 10BASE-T/100BASE-TX |

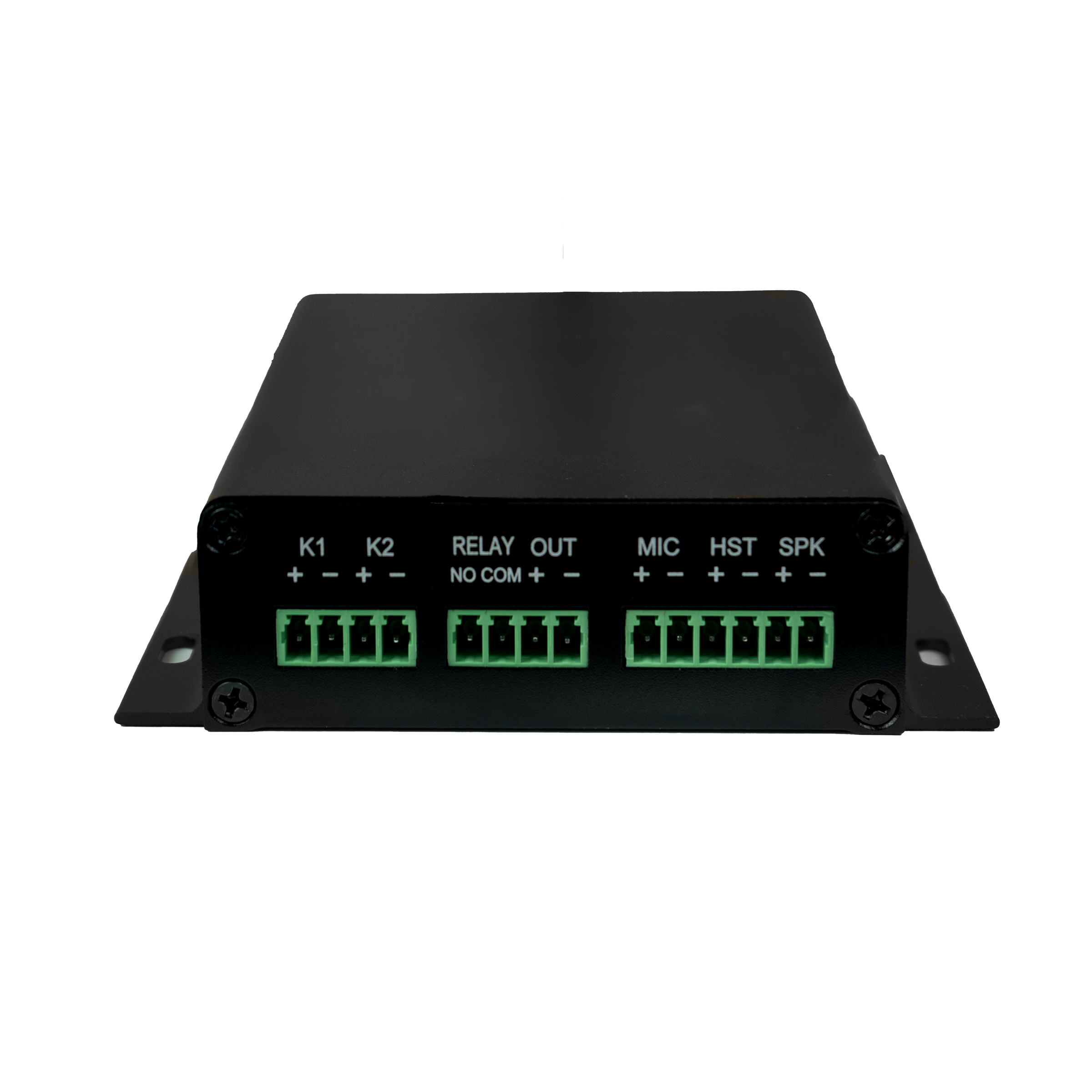

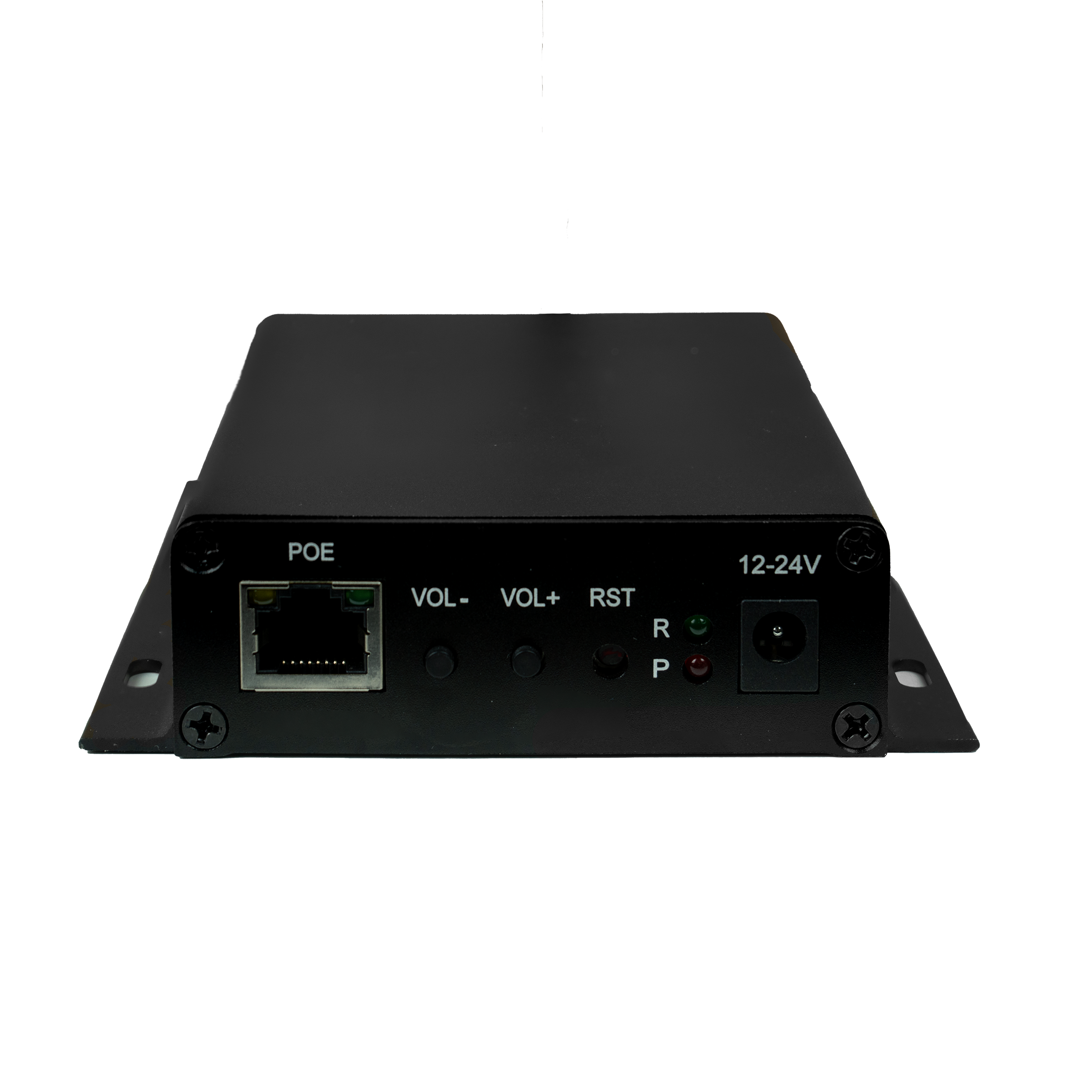

| Interface | 1*MIC input, 1* Speaker output, 2* IO Alarm input, 1* Reset, 1 Headset output, 1 Alarm, 2 Relay Alarm output |
| Power | PoE or DC 12V/24V |
| Rated Power | 15W |
| Material | Metal |
| Operating Temperature | -22°F ~+140°F |
| Operating Humidity | 5%-85% |
| Function | Compatible with VoIP devices and ONVIF VMS, support two-way communication, pre-recorded messages, schedule play, GPIO in, HTTP control |
Name
Description
Size
Downloads
File
Quick Guide
0.3mb
File
Specification Sheet
0.2mb
File
Specification Sheet
0.4mb
