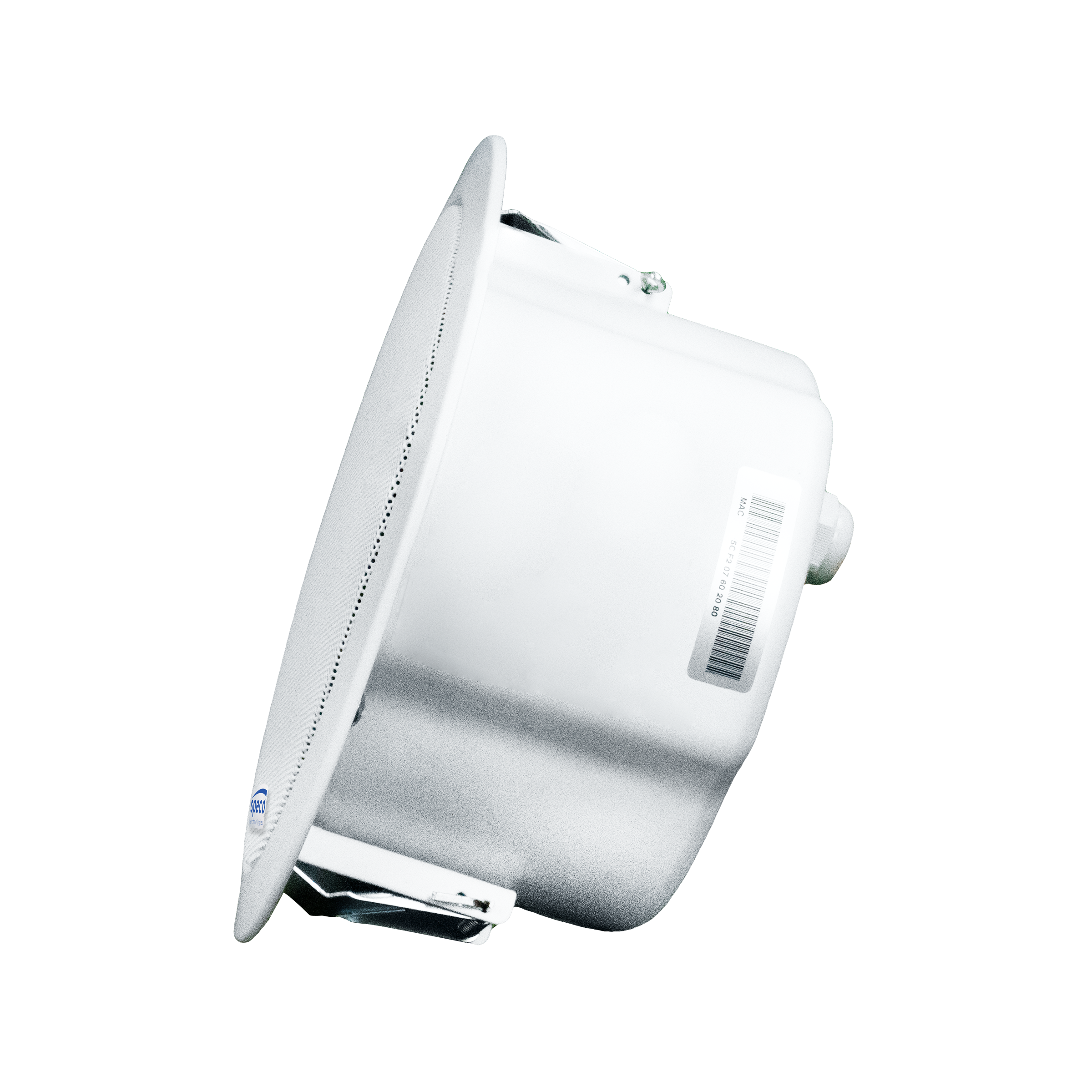

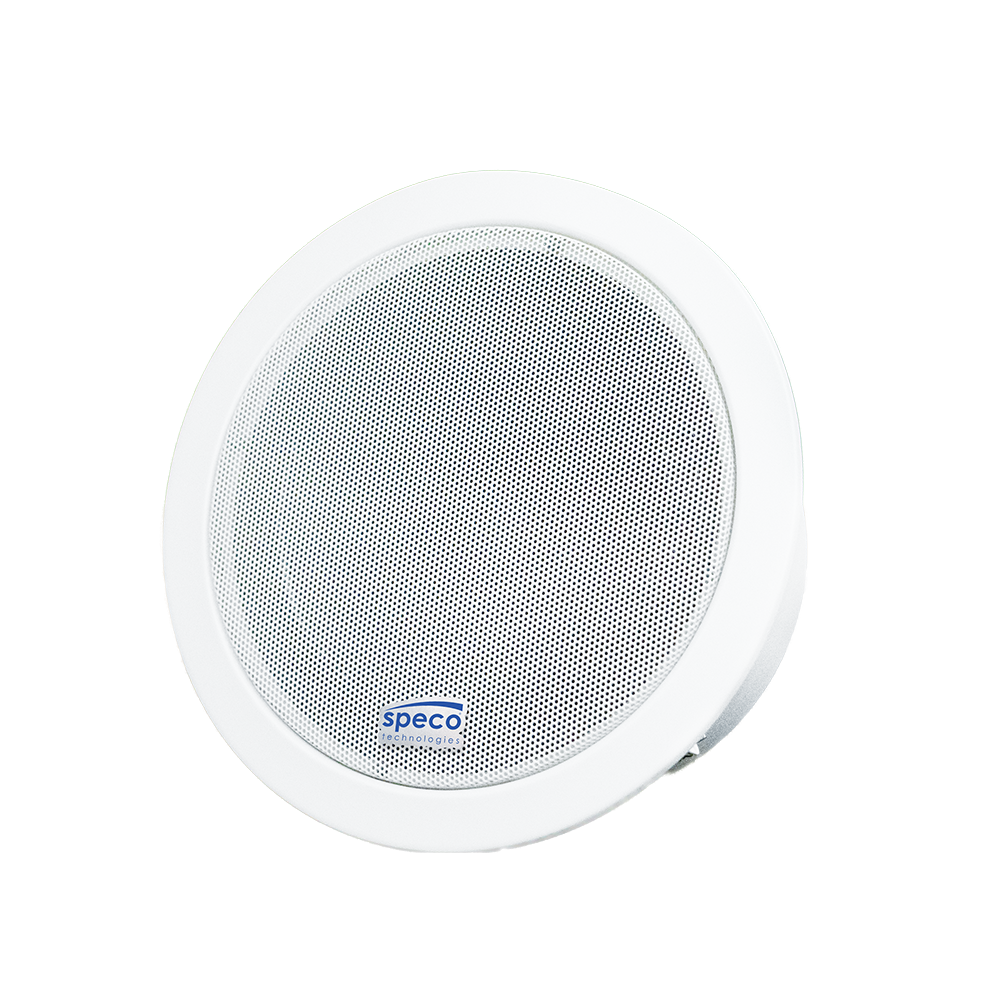

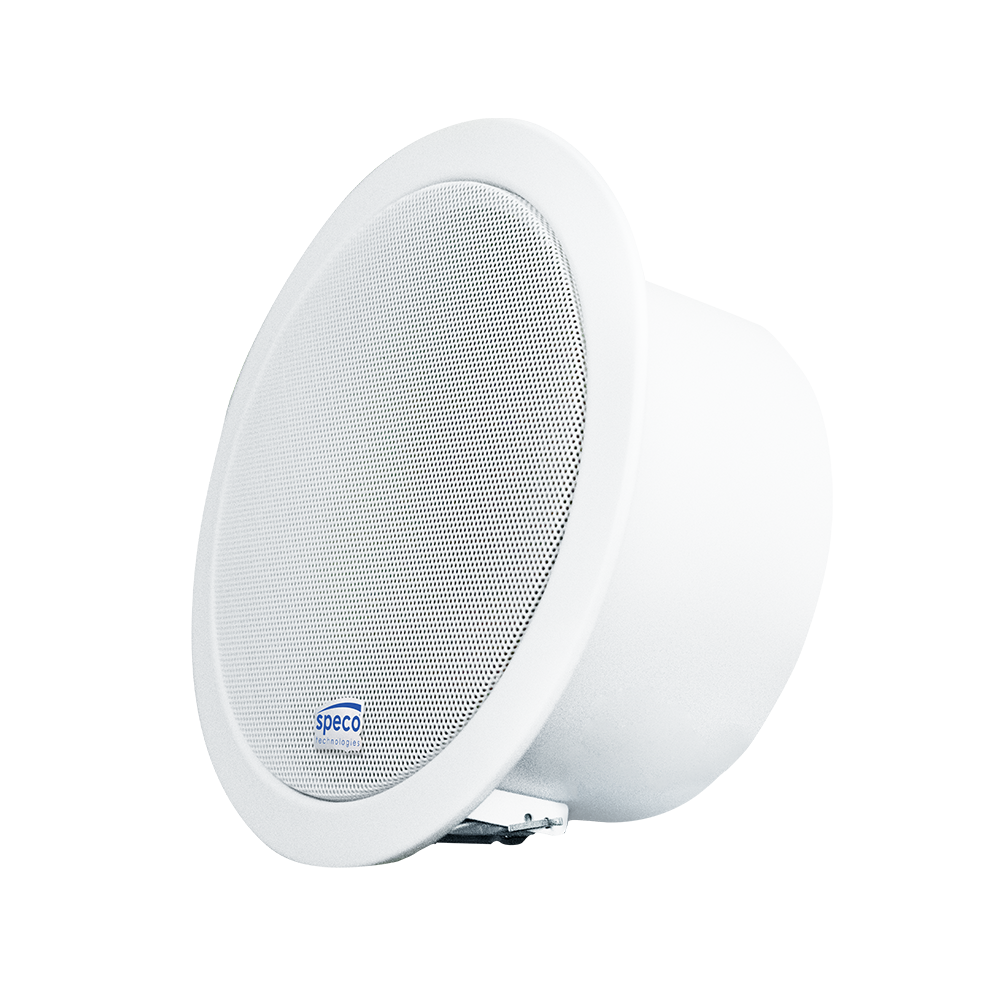

Speco - SPIPC6AM - 15W IP Ceiling Speaker with Mic Input
Part number:
Price:
Product Overview
- Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP - PoE or 12/24VDC - Compatible with SecureGuard® VMS via ONVIF - Supports pre-recorded messages, schedules, and alarm trigger using SecureGuard® software - Two-way audio support with mic input - NDAA Compliant* IP Speaker with Built-in Mic
Key Configuration
Model: SPIPC6AM
Key Features
- • Works with Speco Audio Manager Software.
- • *SPIPC6AM only.
Installation Notes
7.9” (Dia.) x 3.5” (D)
| Full Specifications | |
| Speaker Color | White |
| Audio | |
| Codec | OPUS 48kHz, MP3 44.1kHz, G.722 ADPCM 16kHz, G.711 PCMU 8kHz, G.711 PCMA 8kHz |
| Speaker | |
| Max Sound Pressure Level | 96dB |
| Frequency Response | 100Hz~18kHz |
| Low Frequency Range | 500-2KHz ± 10dB |
| High Frequency Range | 400-12KHz ± 20dB |
| Harmonic Distortion | 0.1@1kHz |
| Signal to Noise Ratio | 91dB |
| Network | |
| Security | Password protection, IP address filtering, digest authentication, user access log, firewall |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | |
| Support for SIP protocol | for integration with VoIP systems, integrated with SIP/PBX. |
| Accounts | 2 SIP Accounts, SIP Direct IP Call, RTP Multicast |
| Audio Specification | |
| Inputs | (2) Alarm Inputs |
| Built-in MIC | SPIPC6A: No, SPIPC6AM: Yes |
| General | |
| Material | Metal |
| Operating Temperature | -22˚F - 140˚F |
| Operating Humidity | 5% - 85% |
| Rate Power | 15W |
| Power Supply | PoE or 12-24V |
