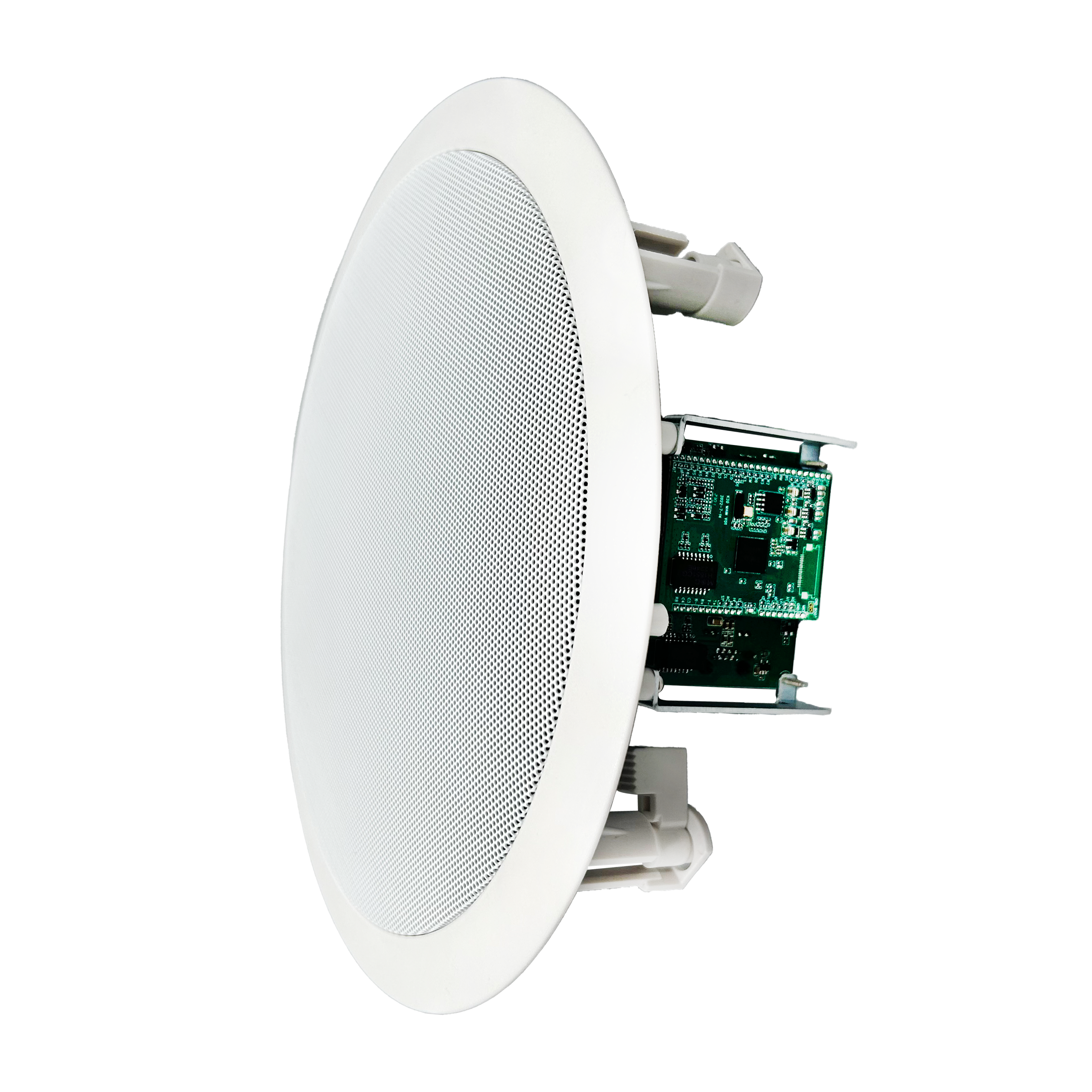

Speco - SPIPG86T - 8" IP Modern Grille In-Ceiling Speaker
Part number:
Price:
Product Overview
8” IP Modern Grille In-Ceiling Speaker.
Key Configuration
Model: SPIPG86T
Key Features
- • Works with Speco Audio Manager Software.
- • Compatible with SecureGuard® VMS via ONVIF.
- • Supports pre-recorded messages, schedules, and alarm trigger.
- • PoE or 12/24VDC.
- • Two-way audio support with mic input.
Installation Notes
10.75" (Dia.) x 3.5" (D)
| Full Specifications | |
| Speaker Color | White |
| RMS Power | 10W |
| Max. Power | 15W |
| Maximum SPL (Pax/1M) | 90dB |
| Driver Impedance | 8 Ohms |
| Frequency Response Range | 120Hz ~ 20kHz |
| Dispersion @ 1000Hz | 120° Conical |
| Driver | 8" paper cone woofer, 0.8" dual cone tweeter |
| Speaker Dimensions | 10.75" (Dia.) x 3.5" (D) |
| Mounting Dimensions | 9.5" (Dia.) |
| Minimum Mounting Depth | 2.8" |
| Weight | 2.2 lbs. |
| Material | Baffle: High impact polystyrene Grille: Steel |
| Color | Off-White |
Name
Description
Size
Downloads
File
Specification
1.3mb
