Product Overview

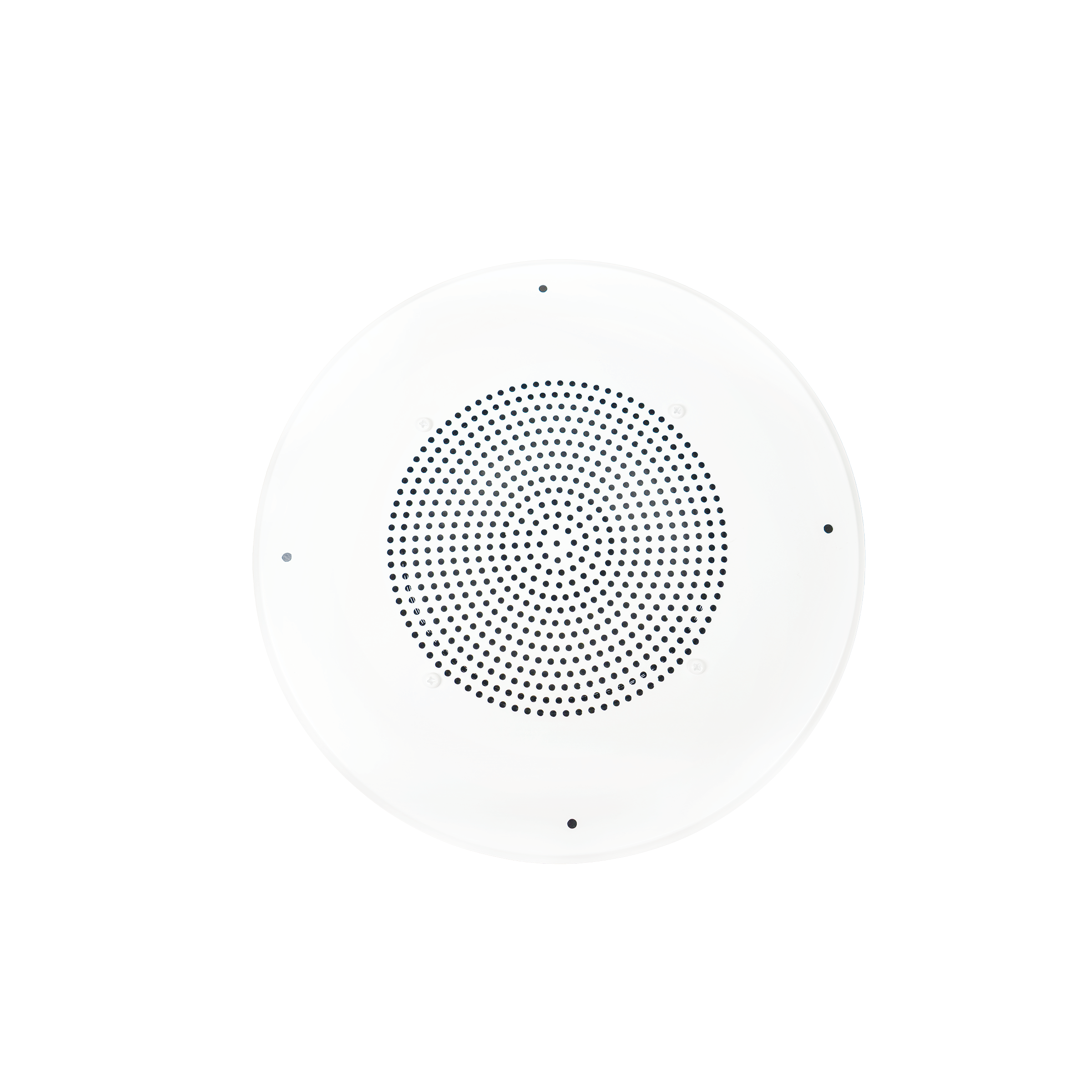

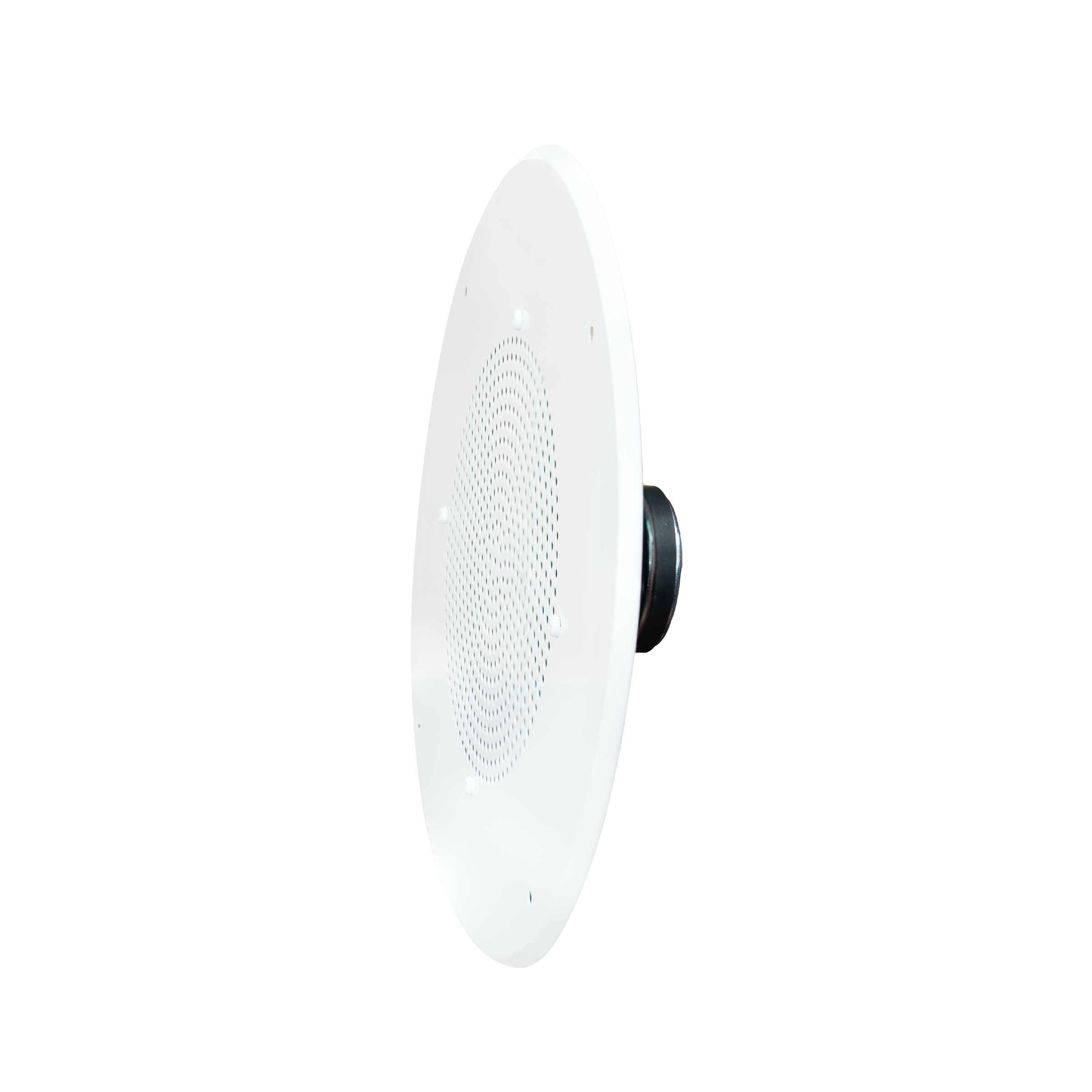

8” Classic Grille In-Ceiling Speaker
Key Configuration
Model: SPIPG86TG | Works with Speco Audio Manager Software | Compatible with SecureGuard® VMS via ONVIF | Supports pre-recorded messages, schedules, and alarm trigger | PoE or 12/24VDC | Two-way audio support with mic input
Key Features
- • Works with Speco Audio Manager Software.
- • Compatible with SecureGuard® VMS via ONVIF.
- • Supports pre-recorded messages, schedules, and alarm trigger.
- • PoE or 12/24VDC.
- • Two-way audio support with mic input.
Installation Notes
13" (Dia.) x 3.5" (D)
| Full Specifications | |
| Speaker Color | White |
| RMS Power | 10W |
| Max. Power | 15W |
| Maximum SPL (Pax/1M) | 90dB |
| Driver Impedance | 8 Ohms |
| Frequency Response Range | 85Hz ~ 18kHz |
| Dispersion @ 1000Hz | 120° Conical |
| Driver | 8" paper cone woofer, 0.8" dual cone tweeter |
| Speaker Dimensions | 13" (Dia.) x 3.5" (D) |
| Mounting Dimensions | 11.3" (Dia.) |
| Minimum Mounting Depth | 2.7" |
| Weight | 2.7 lbs. |
| Material | Grille: steel |
| Color | Off-White |
| Network Specifications | |
| Security | Password protection, IP address filtering, digest authentication, user access log, firewall |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | Support for SIP protocol for integration with VoIP systems, integrated with SIP/PBX. 2 SIP Accounts, SIP Direct IP Call, RTP Multicast Codec: OPUS, MP3, G.722, PCMU, PCMA |
| Amplifier | Built-in 15W Amplifier |
