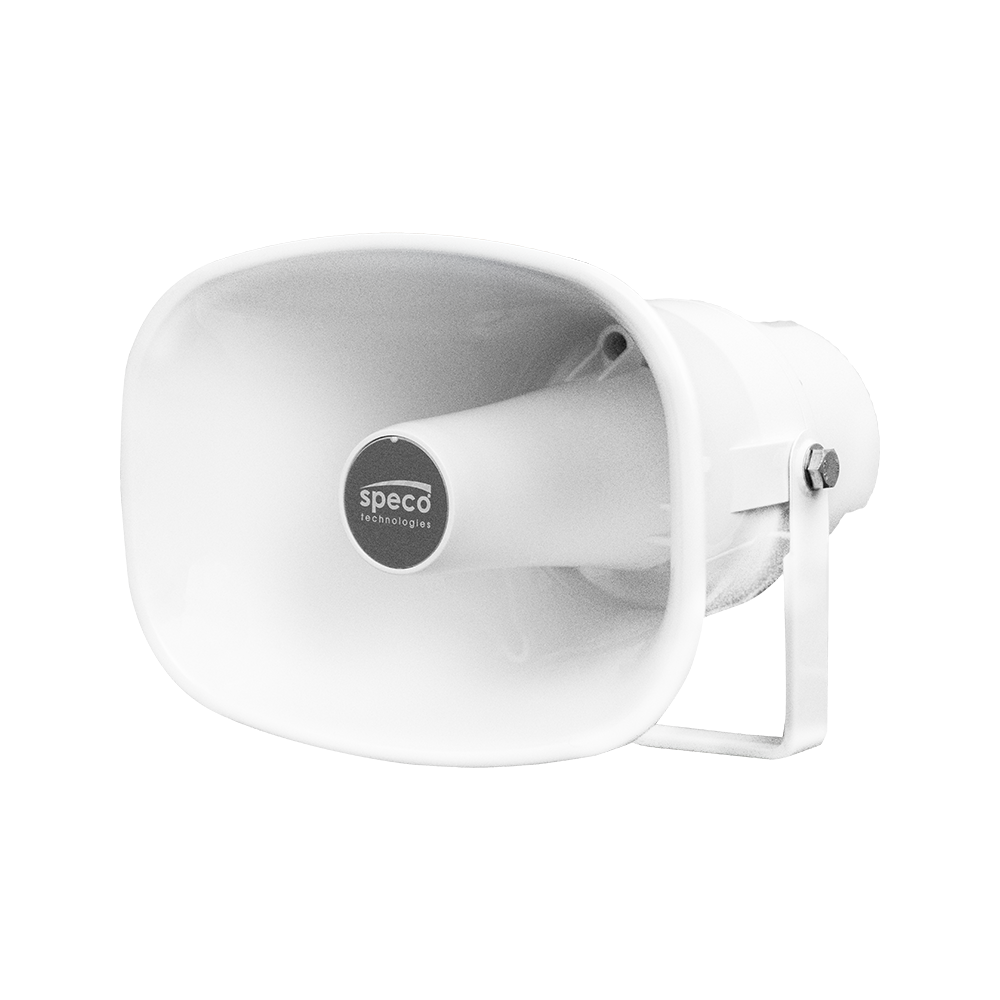

Product Overview
Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP. IP67 waterproof design is ideal for outdoor installations. PoE or 12/24VDC. Compatible with SecureGuard® VMS via ONVIF. Supports pre-recorded messages, schedules, and alarm trigger using SecureGuard® software. NDAA Compliant. IP Speaker with Built-in Mic
Key Configuration
Model: SPIPH8A
Key Features
- • Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP.
- • IP67 waterproof design is ideal for outdoor installations.
- • PoE or 12/24VDC.
- • Compatible with SecureGuard® VMS via ONVIF.
- • Supports pre-recorded messages, schedules, and alarm trigger using SecureGuard® software.
Installation Notes
8.86” (W) x 6.5”(H) x 9.45”(D)
| Full Specifications | |
| Speaker Color | White |
| Audio | |
| Codec | OPUS 48kHz, MP3 44.1kHz, G.722 ADPCM 16kHz, G.711 PCMU 8kHz, G.711 PCMA 8kHz |
| Speaker | |
| Max Sound Pressure Level | 113dB |
| Frequency Response | 300Hz~8kHz |
| Low Frequency Range | 500-KHz ± 10dB |
| High Frequency Range | 400-12kKHz ± 20dB |
| Harmonic Distortion | 0.1@1kHz |
| Signal to Noise Ratio | 91dB |
| Network | |
| Security | Password protection, IP address filtering, digest authentication, user access log, firewall |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | 2 SIP Accounts, SIP Direct IP Call, RTP Multicast Codec: OPUS, MP3, G.722, PCMU, PCMA |
| Audio Specification | |
| Inputs | (2) Alarm Inputs |
| Microphone | Built-in MIC |
| Amplifier | Amplifier Description |
| SPIPH8A | No |
| SPIPH8AM | Yes |
| General | |
| Built-in 15W Amplifier | |
| Operating Temperature | -22˚F - 140˚F |
| Operating Humidity | 5% - 85% |
| Material | ABS (IP67 waterproof) |
| Rate Power | 15W |
| Power Supply | PoE or 12-24V |
Name
Description
Size
Downloads
File
Quick Start Guide
0.3mb
File
User Manual
0.7mb
File
Specification Sheet
0.8mb
File
Installation Manual
0.3mb
