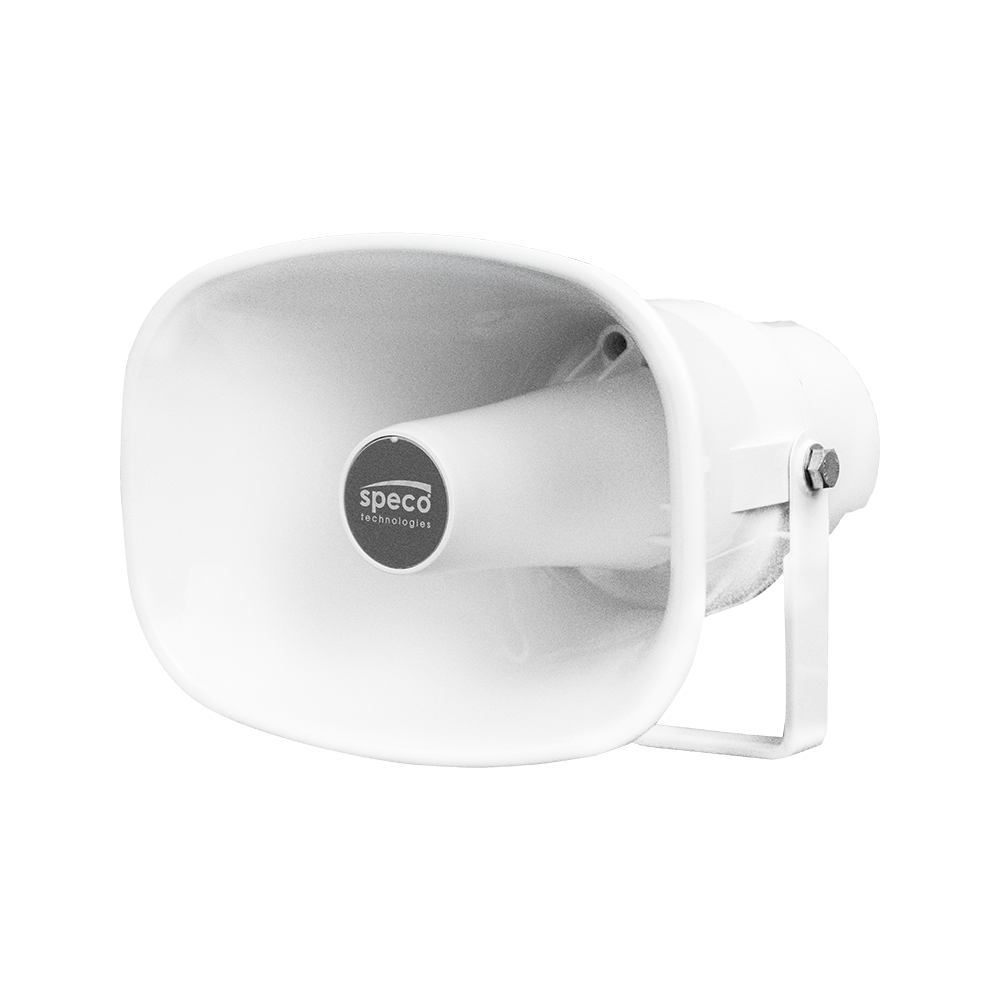

Speco - SPIPH8AM - 15W IP POE Horn Speaker with Built-In Mic
Part number:
Price:
Product Overview
15W IP POE Horn Speaker with Built-In Mic
Key Configuration
Model: SPIPH8AM
Key Features
- • Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP.
- • IP67 waterproof design is ideal for outdoor installations.
- • PoE or 12/24VDC.
- • Compatible with SecureGuard® VMS via ONVIF.
- • Supports pre-recorded messages, schedules, and alarm trigger using SecureGuard® software.
Installation Notes
8.86” (W) x 6.5”(H) x 9.45”(D)
| Full Specifications | |
| Speaker Color | White |
| Audio | |
| Codec | OPUS 48kHz, MP3 44.1kHz, G.722 ADPCM 16kHz, G.711 PCMU 8kHz, G.711 PCMA 8kHz |
| Speaker | |
| Max Sound Pressure Level | 113dB |
| Frequency Response | 300Hz~8kHz |
| Low Frequency Range | 500-KHz ± 10dB |
| High Frequency Range | 400-12kKHz ± 20dB |
| Harmonic Distortion | 0.1@1kHz |
| Signal to Noise Ratio | 91dB |
| Network | |
| Security | Password protection, IP address filtering, digest authentication, user access log, firewall |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 Support for SIP protocol for integration with VoIP systems, integrated with SIP/PBX. |
| VoIP | 2 SIP Accounts, SIP Direct IP Call, RTP Multicast Codec: OPUS, MP3, G.722, PCMU, PCMA |
| Audio Specification | |
| Inputs | (2) Alarm Inputs |
| Microphone | Built-in MIC |
| Amplifier | Built-in 15W Amplifier |
| General | |
| Operating Temperature | -22˚F - 140˚F |
| Operating Humidity | 5% - 85% |
| Material | ABS (IP67 waterproof) |
| Rate Power | 15W |
| Power Supply | PoE or 12-24V |
Name
Description
Size
Downloads
File
Quick Guide
0.3mb
File
User Manual
0.7mb
File
Specification Sheet
0.8mb
File
Installation Guide
0.3mb
