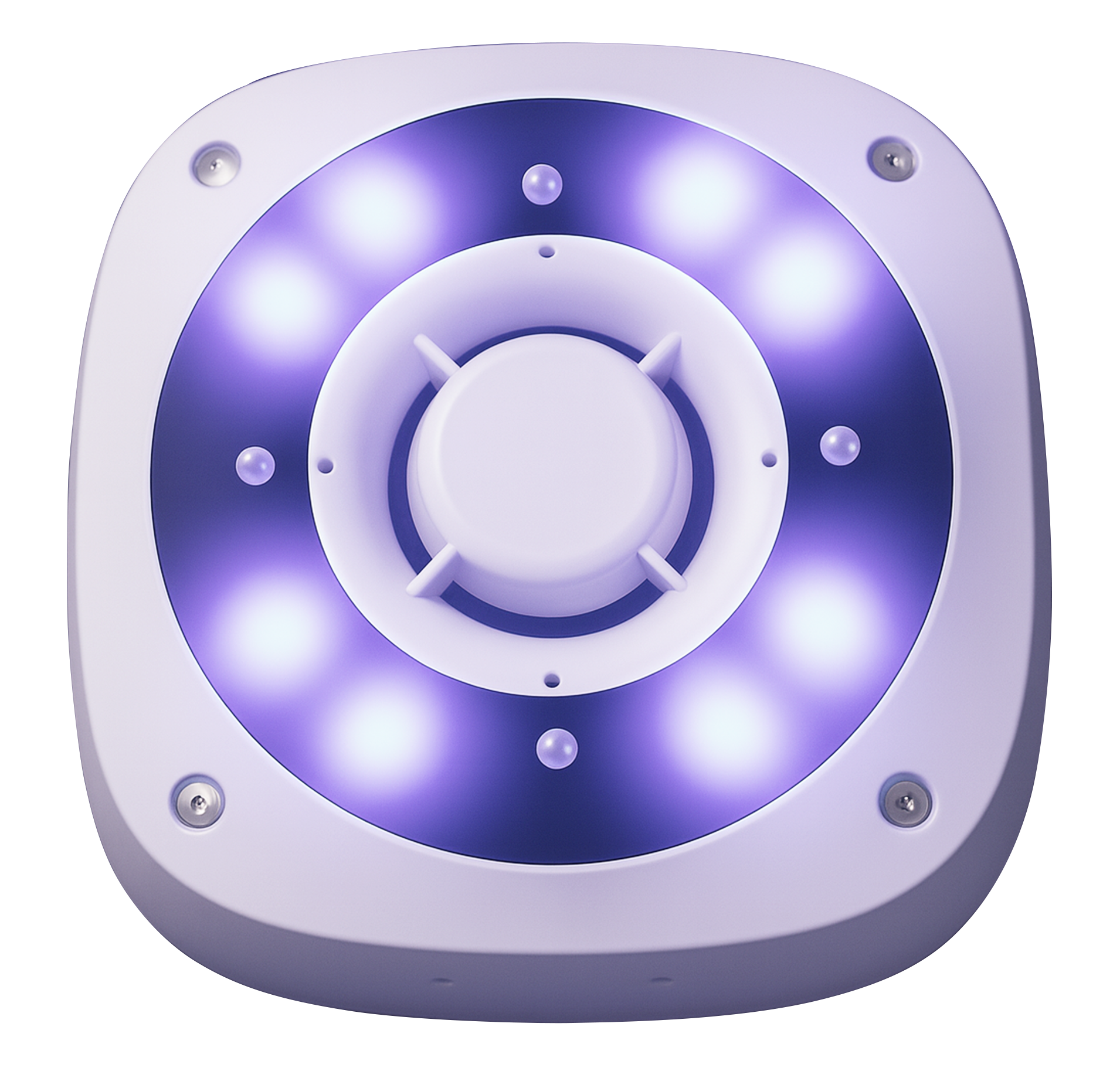

Product Overview
• Power Options: PoE++ or a wide-range DC9-36V input, with a maximum power consumption of 45W. • Connectivity: Supports both Wi-Fi and a 10/100M Base-TX RJ45 connection. • Two-Way Audio: Features a talk-down and listen function with a dual microphone setup and a powerful speaker reaching a maximum of 115dB. • Deterrent Lighting: Equipped with a 19W max front-facing RGB light for active deterrence and a back RGB light for environmental ambiance. • Audio Playback: Supports pre-recorded audio playback and scheduled broadcasts. It also includes a line-in for external audio sources. • Integration: ONVIF compliant for broad compatibility and features an HTTP API for alarm notifications. • I/O: Includes terminal blocks for alarm input and output.
Key Configuration
Model: SPIPSTROBE
Key Features
- • Power Options: PoE++ or DC9-36V input.
- • Connectivity: Wi-Fi and 10/100M Base-TX RJ45.
- • Two-Way Audio: Dual microphone and 115dB speaker.
- • Deterrent Lighting: 19W RGB light for active deterrence.
- • Audio Playback: Pre-recorded audio and external audio support.
Installation Notes
5.7"in x 2.1"in (Including Installation Plate)
| Full Specifications | |
| Max Power Consumption | 45W |
| Speaker Volume | 115dB |
| Lighting | 19W RGB front light |
| CPU | Quad-core ARM Cortex-A55 |
| GPU | Mali-G5 2-2EE |
| NPU | 1 TOPS, supporting INT8/INT16/FP16/BFP16 MAC hybrid operation |
| DDR | 1GB LPDDR4 |
| EMMC | 8GB |
| Front Light - Power | RGB, 19W Max |
| Front Light - Colors | Green, Blue, Red, White, Yellow, Violet, Cyan |
| Front Light - Patterns | Steady, Blink, Breathe, Strobe (with support for blink frequency adjustment) |
| Back Light - Power | RGB, 0.8W |
| Back Light - Patterns | Steady, Chase |
| Audio - Amplifier Power | 24W Max |
| Audio - Max Sound Pressure | 115dB Max, 120dB |
| Audio - Frequency Response | 20Hz - 20KHz |
| Audio - Microphone | Dual Mic |
| Audio - Pre-Recorded Audio Format | WAV, 8K MONO |
| Audio - Audio Codecs | AAC, G711U, G711A |
| Network & Interfaces - Wi-Fi | 2.4Ghz (for fast installation) |
| Network & Interfaces - Ethernet | RJ45, 10/100M Base-TX with PoE++ |
| Network & Interfaces - DC Input | DC9-36V Wide Range |
| Network & Interfaces - Alarm | Input & Output Terminals |
| Network & Interfaces - Audio Input | Yes (Line-in) |
| Network & Interfaces - Protocols | ONVIF, HTTP/HTTPs, IPv4, IPv6, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, NTP, TFTP, NFS (SIP is in development) |
| General - Materials | Aluminum plus ABS PC |
| General - Environmental Rating | IP66 Rated for outdoor use |
| General - Operating Temperature | (-22°F to 140°F) |
