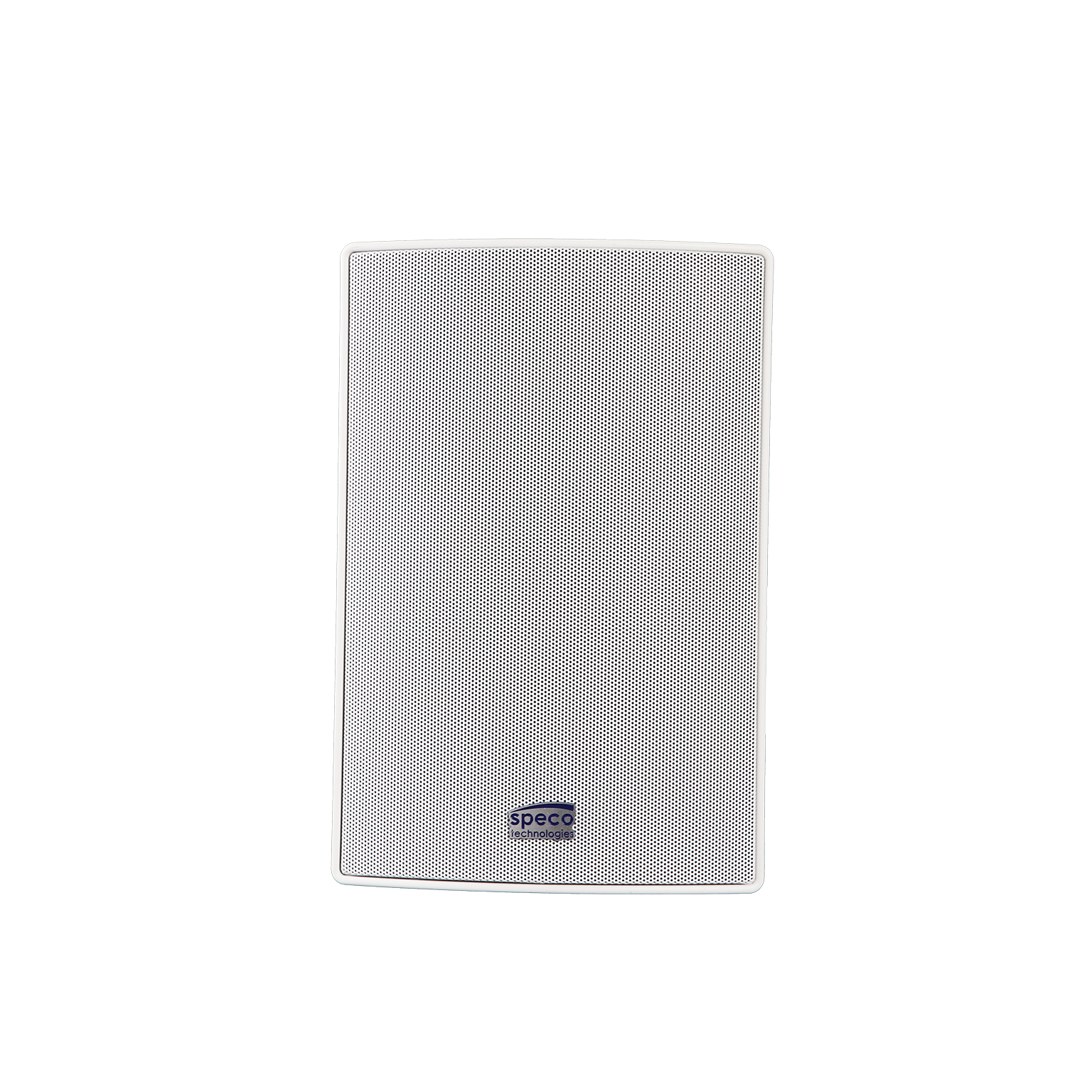

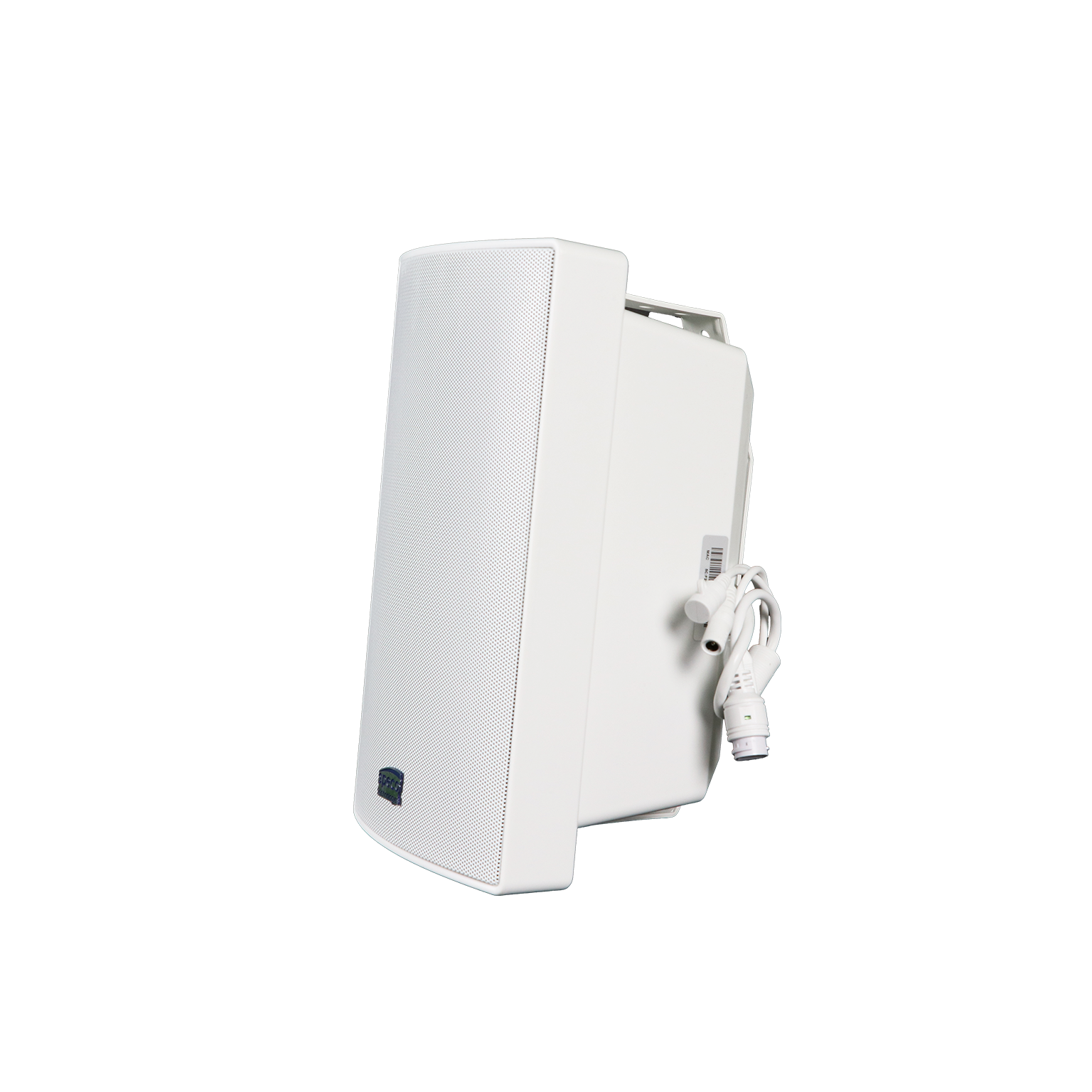

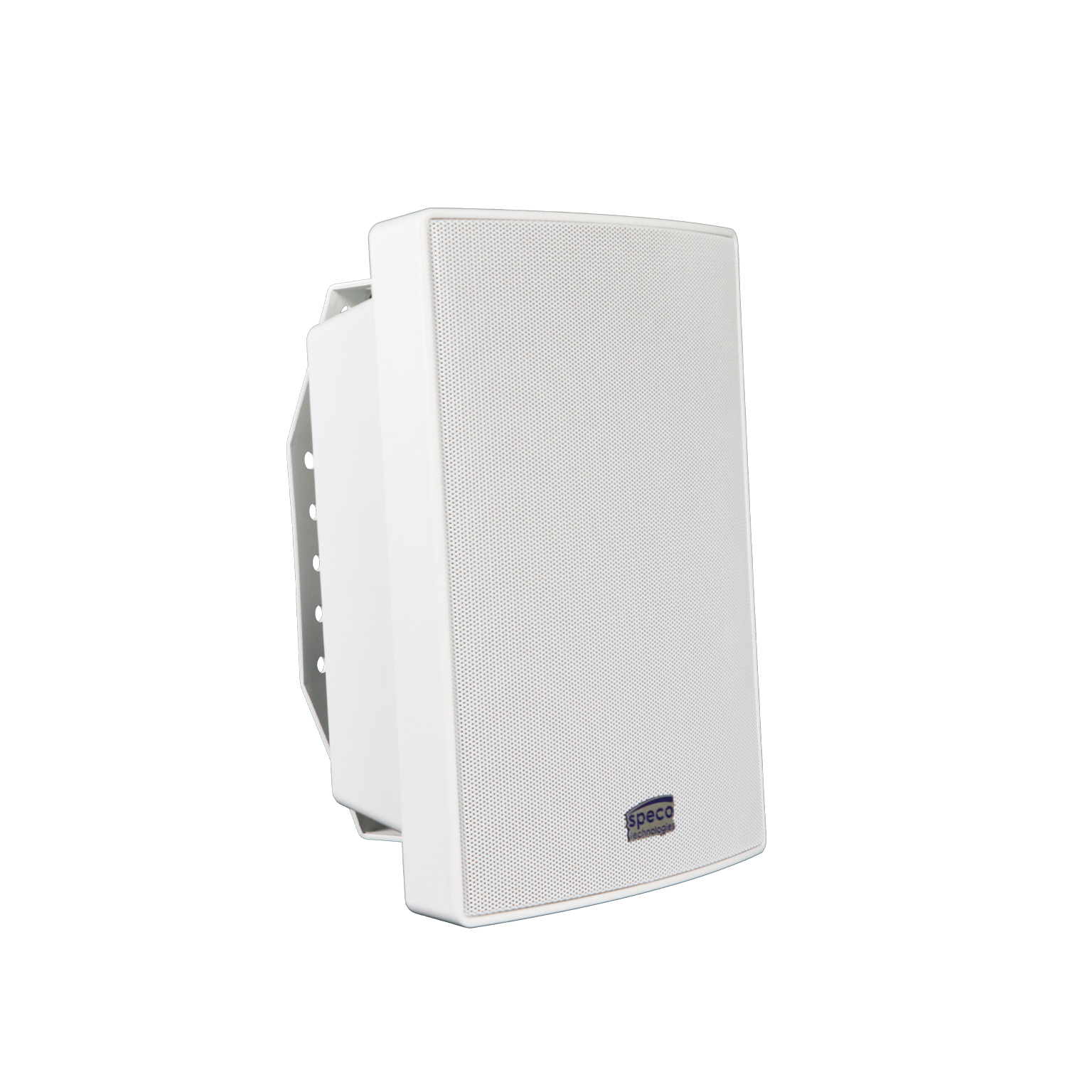

Product Overview
Compatible with Speco Audio manager, transfer loud & excellent sound, IP 55 waterproof design for installation on exterior of building. Products are in compliance with NDAA Section 889 Part B Guidelines.
Key Configuration
Model: SPIPW15A | Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP | Compatible with IP Camera VMS via ONVIF | Support Pre-recorded messages | Support HPPT API for alarm in transmit
Key Features
- • 48K OPUS Audio Codec enables excellent sound quality.
- • Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP.
- • Compatible with IP Camera VMS via ONVIF.
- • Support Pre-recorded messages.
- • Support HPPT API for alarm in transmit.
Installation Notes
11.7 x 7.7 x 6.2 inches
| Full Specifications | |
| Audio Codec | 48K OPUS |
| Weatherproof Rating | IP 55 |
| Audio Specifications | |
| Codec | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
| Speaker Specifications | |
| Max SPL | 101dB |
| Frequency response | 80Hz-20KHz |
| Frequency Range | 500-2KHZ ±10dB 400-12KHZ ±20dB |
| Harmonic Distortion | 0.1@1KHZ |
| Signal to Noise Ratio | 91dB |
| Network Specifications | |
| Security | Password protection, IP address filtering, Digest authentication, User access log, firewall |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | Support for SIP protocol for intergration with VoIP systems, integrated with SIP/PBX. 2 SIP Accounts, SIP Direct IP Call, RTP Multicast. Codec: OPUS, MP3, G.722, PCMU, PCMA |
| Amplifier Specifications | |
| Amplifier Description | Built-in 15W Amplifier |
| Other Specifications | |
| Operating Temperature | -30°C — +60°C |
| Operating humility | 5%-85% |
| Material | ABS (IP55 water-proof) |
| Rate Power | 15W |
| Power Supply | PoE or 12V |
| Installation | Wall Mounted |
| Dimensions | 11.7 x 7.7 x 6.2 inches |
| Net Weight | 5.3 Pounds |
| Languages | English |
| Warranty | 2 years |
