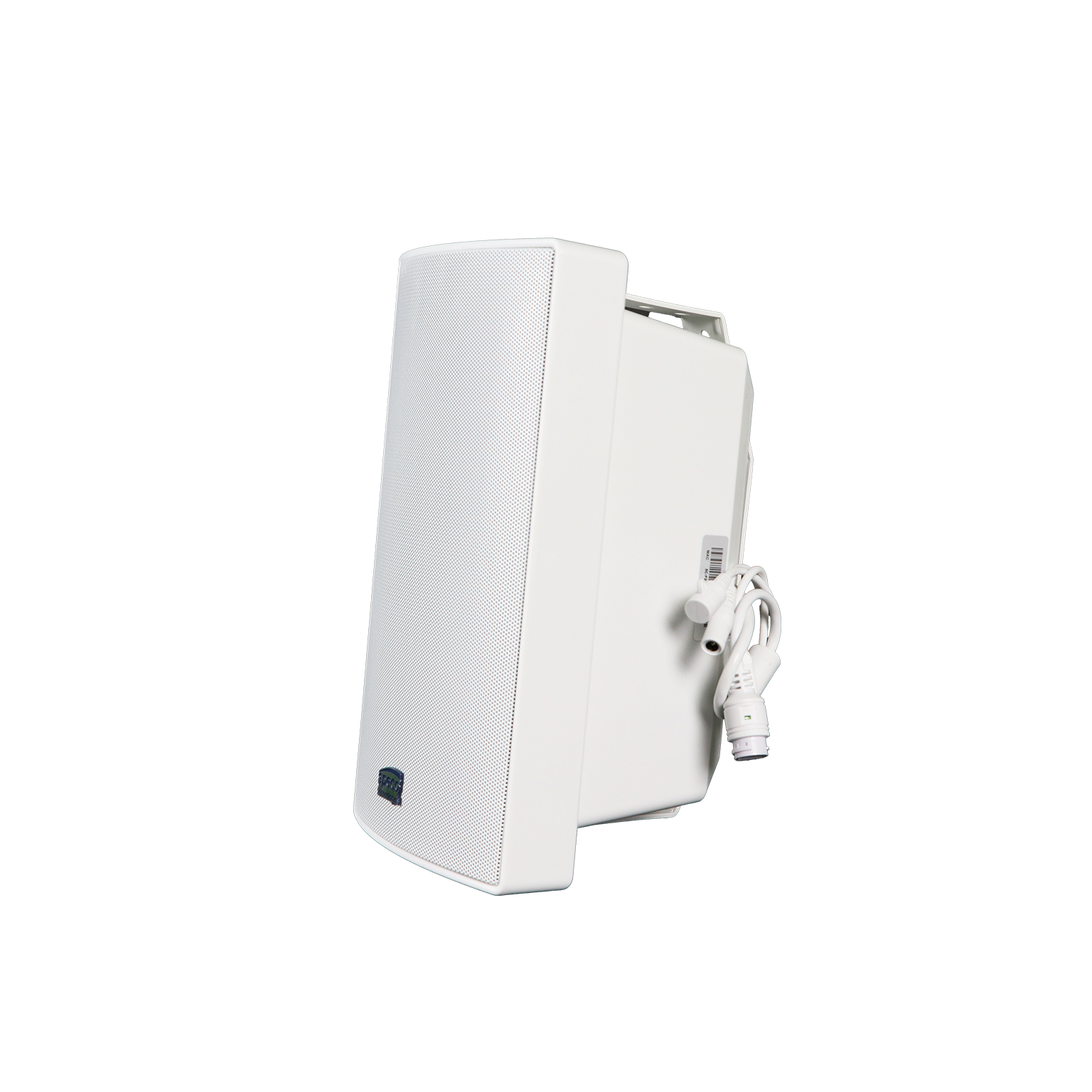

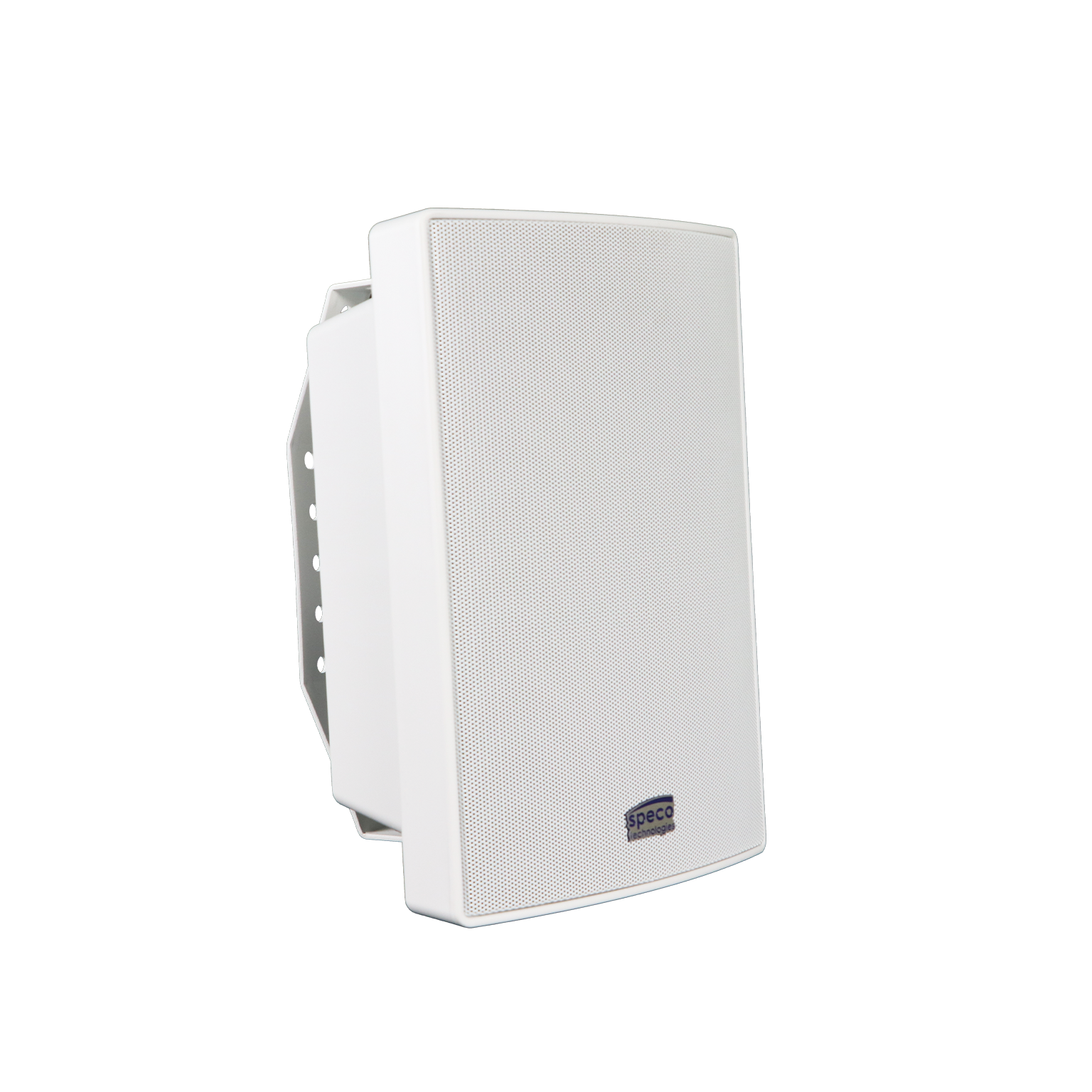

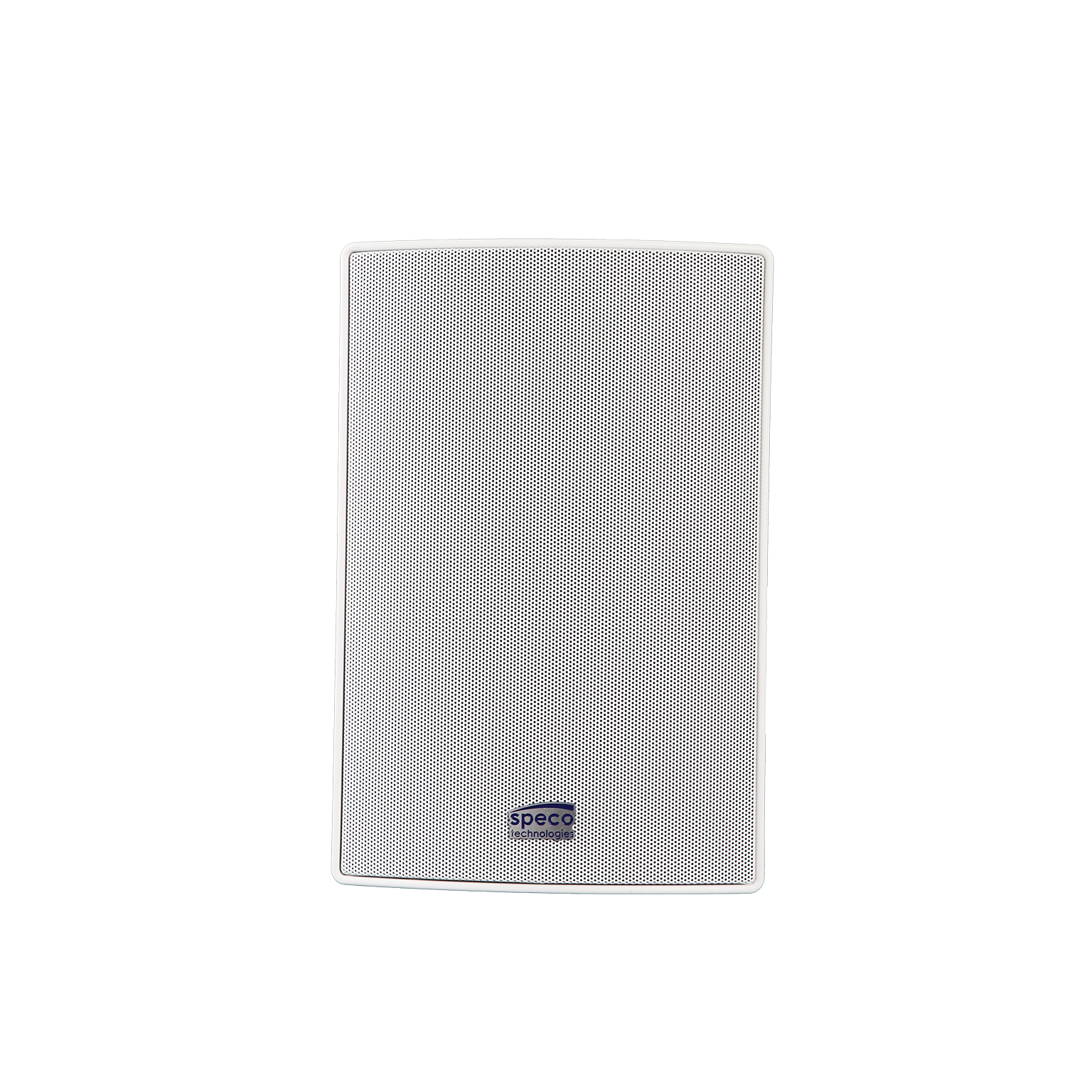

Speco - SPIPW15AM - Wall Mount IP Speaker with Microphone
Part number:
Price:
Product Overview
Coming Soon… This is manufacturer documentation for product model SPIPW15AM.
Key Configuration
Model: SPIPW15AM
Key Features
- • Compatible with Speco Audio manager.
- • Two-way intercom communication.
- • IP 55 waterproof design for installation on exterior of building.
- • 48K OPUS Audio Codec enables excellent sound quality.
- • Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP.
Installation Notes
11.7 x 7.7 x 6.2 inches
| Full Specifications | |
| Audio Codec | 48K OPUS |
| Waterproof Rating | IP 55 |
| Compatibility | VoIP, SIP devices, IP Cameras |
| Audio Specifications | |
| Decoding | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM |
| Speaker Specifications | |
| Max SPL | 101dB |
| Frequency response | 80Hz-20KHz |
| Frequency Range | 500-2KHZ ±10dB 400-12KHZ ±20dB |
| Harmonic Distortion | 0.1@1KHZ |
| Signal to Noise Ratio | 91dB |
| Network Specifications | |
| Security | Password protection, IP address filtering, Digest authentication, User access log, firewall |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | Support for SIP protocol for intergration with VoIP systimes, integrated with SIP/PBX. Support SIP features: secondary/ backend SIP server, IPv4 (IPv6 futhur) Support codecs: OPUS, G711U, G711A, GSM, MP3 |
| Amplifier Specifications | |
| Amplifier Description | Built-in 15W Amplifier |
| Microphone Specifications | |
| Built-in MIC | Yes |
| Other Specifications | |
| Operating Temperature | -30°C — +60°C |
| Operating humility | 5%-85% |
| Material | ABS (IP55 water-proof) |
| Rate Power | 15W |
| Power Supply | PoE or DC12V |
| Installation | Wall Mounted |
| Languages | English |
| Warranty | 2 years |
