Product Overview

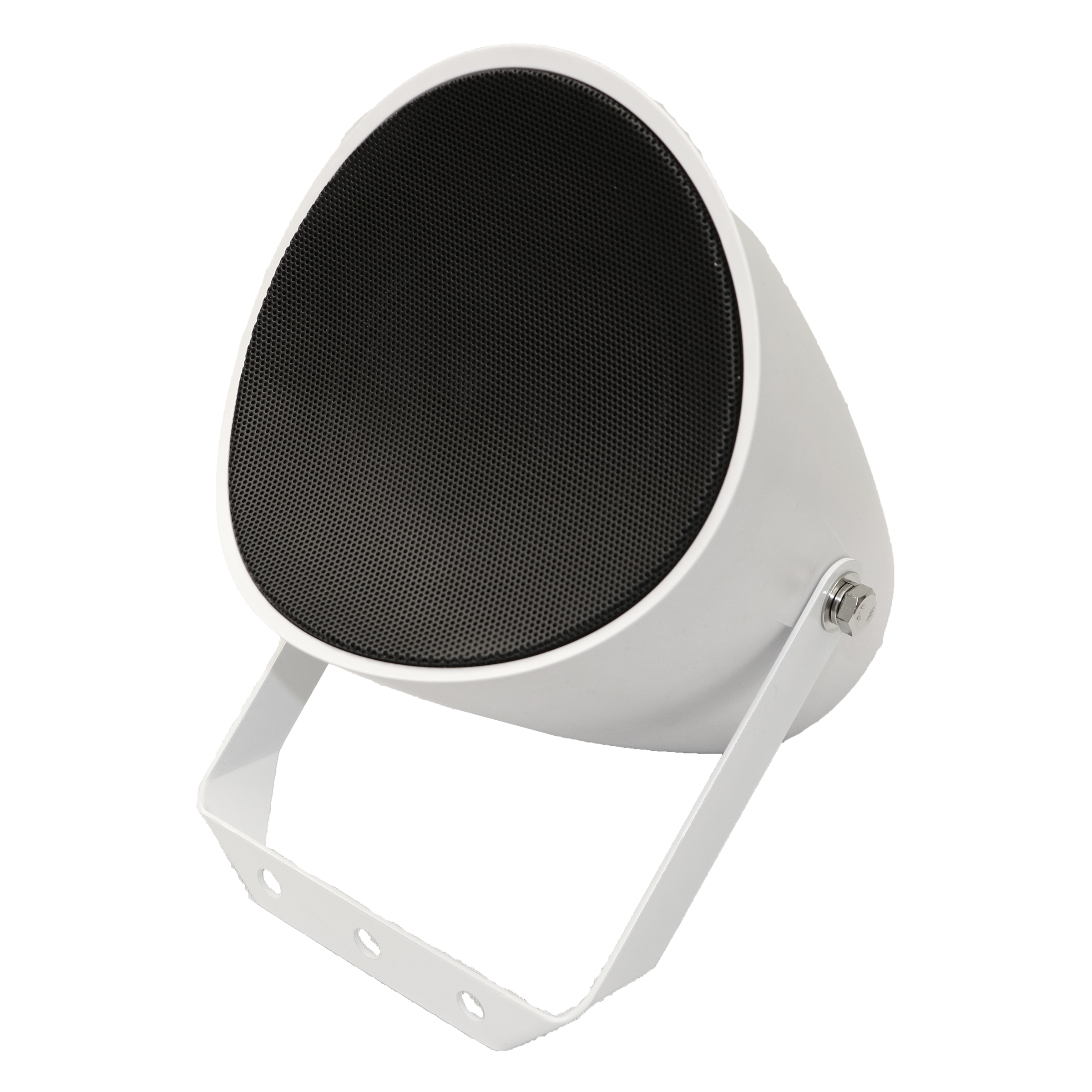

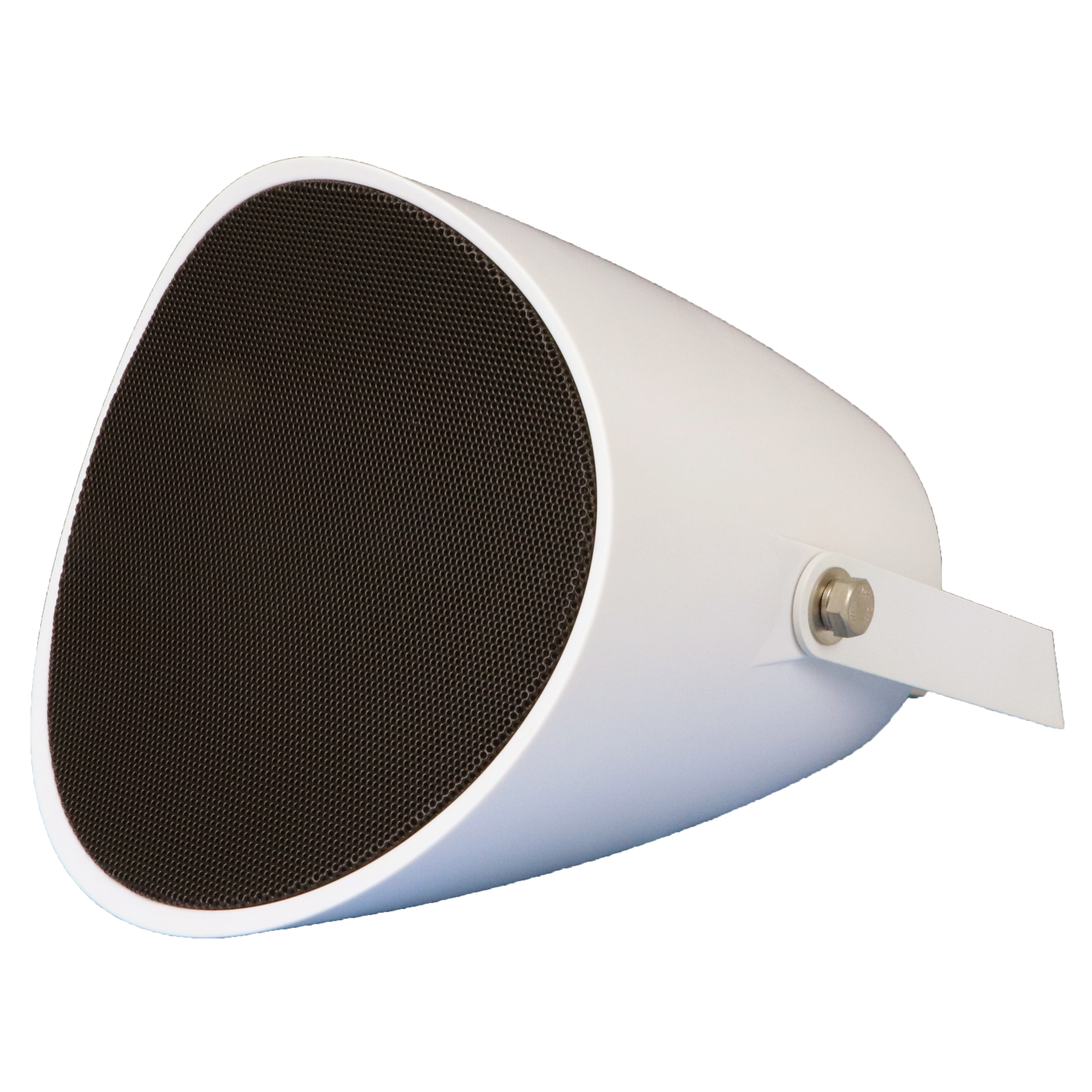

- Mounts like a horn with adjustable bracket - Constructed for indoor or outdoor use - Built-in 70V transformer - 5 year warranty **Products are in compliance with NDAA Section 889 Part B Guidelines**
Key Configuration
Model: SPP20T
Installation Notes
6.8" Diameter x 8.7" length
| Speaker Specifications | |
| RMS Output Power | 20W |
| Max Output Power | 30W |
| Transformer Type | 70V |

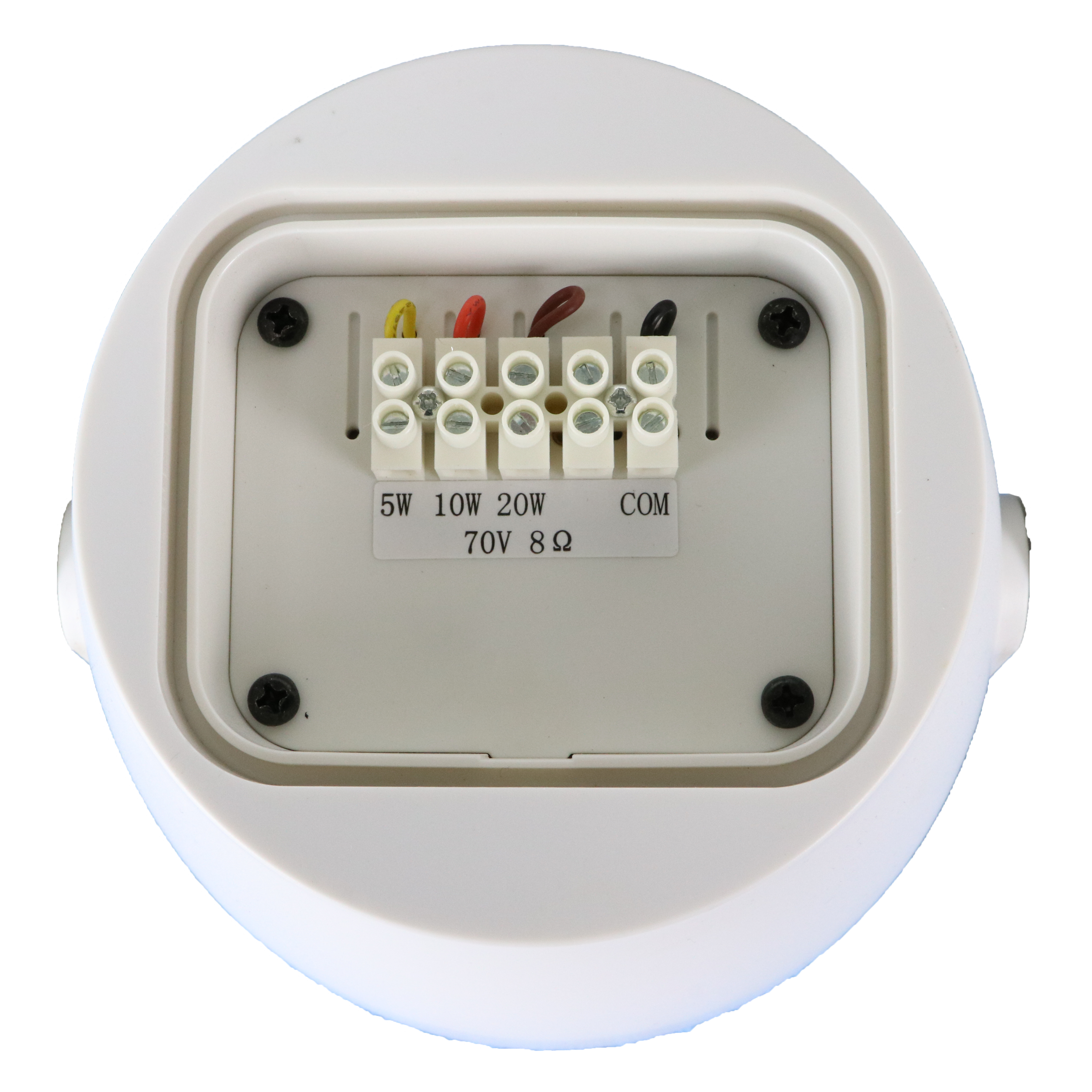

| Transformer Power Tap | 20W, 10W, 5W |
| Termination Type | Terminal |
| Sensitivity (1W/1M) | 90dB |
| Maximum SPL (Pmax/1M) | 130dB |
| Driver Impedance | 8 Ohms |
| Magnet size and material | 11.4 Oz Ferrite |
| Frequency Response Range | 160Hz ~ 125KHz |
| Dispersion @ 1000Hz | 100° |
| Driver | 5" Polypropylene coated paper |
| Material | ABS, Grille: Aluminum |
