Product Overview
Protects PoE equipment from high voltage surges, offers protection to power and signal line, 10/100 Base-T compatible, supports Midspan and Endspan PoE units, IEEE 802.3af, IEEE 802.3a compatible, complies with IEC61000-4-5 2nd edition. Products are in compliance with NDAA Section 889 Part B Guidelines.
Key Configuration

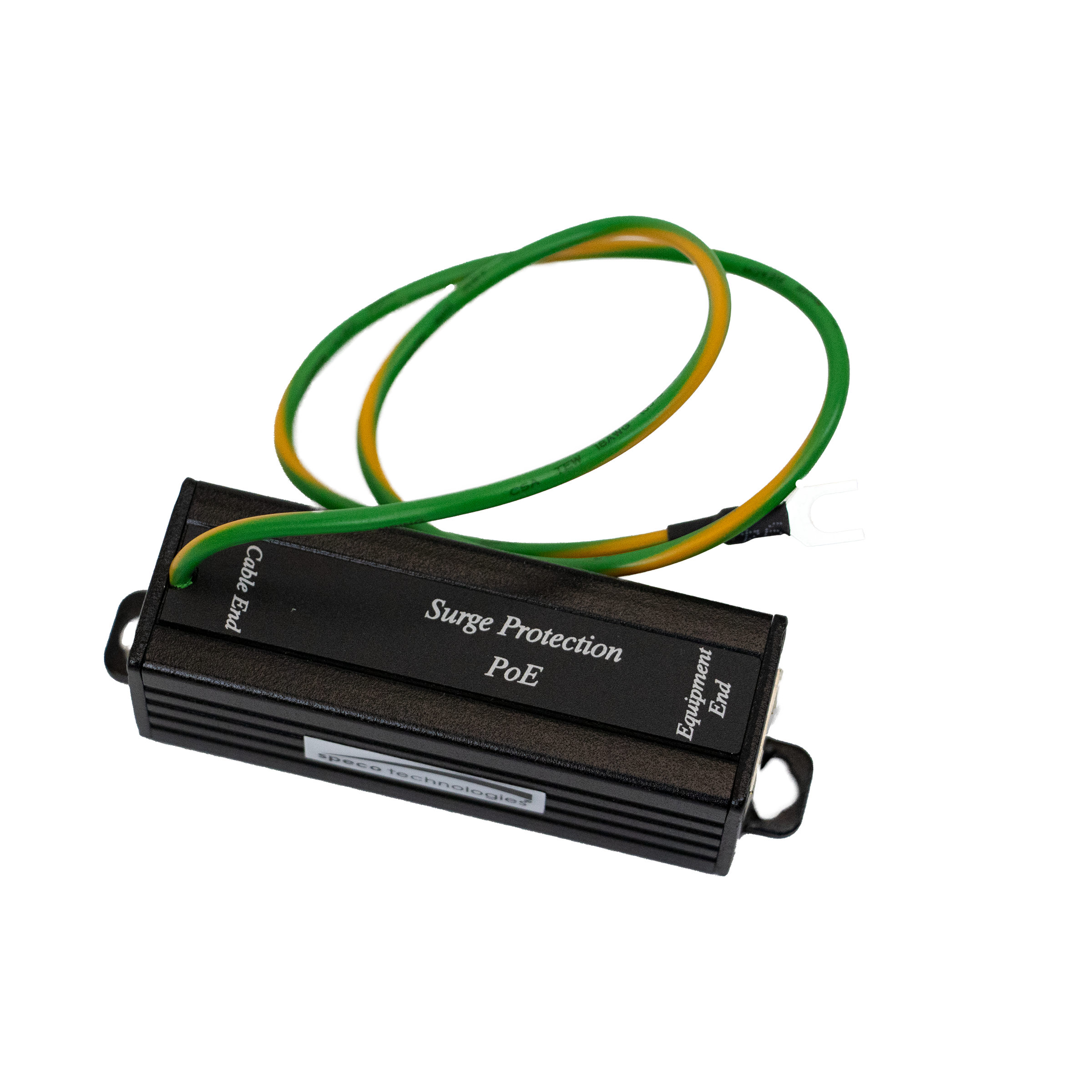

Model: SPPOE2
Key Features
- • Protects PoE equipment from high voltage surges.
- • Offers protection to power and signal line.
- • 10/100 Base-T compatible.
- • Supports Midspan and Endspan PoE units.
- • IEEE 802.3af, IEEE 802.3a compatible.
Installation Notes
3.5" x 1" x 1:
| Specifications | |
| Input/Output Port | RJ45 x 2 |
| Data Rate | 10/100Mbps |
| Lightning Protection | 10KV @8/20us, 10KV @10/700us |
| Lifetime | 300 times of 100A surge @8/20us |
| ESD Protection | 30KV (Air, Contact) |
| Insertion Loss | < 0.2dB |
| Return Loss | -16dB |
| Connectors | RJ45 x 2 |
| Dimensions | 3.5" x 1" x 1: |
| Weight | .175 LB |
Name
Description
Size
Downloads
File
Specification Sheet
0.2mb
File
User Manual
0.1mb
