Speco - SPTVIVP - HD-TVI Video and Power Surge Protector
Part number:
Price:
Product Overview
Helps protect HD-TVI cameras, as well as AHD/HD-CVI/CVBS formats, from lightning strikes and power surges.
Key Configuration
Model: SPTVIVP
Key Features
- • Resolution up to 4K.
- • Supports power input up to AC40V/ DC56V.
- • Response time less than 1 ns.
Installation Notes
2.6 x 3.4 x 1" (67 x 87 x 27mm)
| Specifications | |
| Support | |
| Response Time | Less than 1ns |
| Max. Surge Voltage | 4 kV |
| Surge Life | 300 Times/ 100A Surge |
| Normal Resistance Across Coax | 10,000 M Ω |
| Band Pass | 0 to 1 GHz |
| Power Passing Capability | DC / AC 130V, 65 Vrms@10 A |
| Insertion Loss | Less than 0.2dB |
| Return Loss (75 Ω ) | 16dB |
| Max. Power Input | AC 40V, DC56V |
| Ports & Interfaces | |

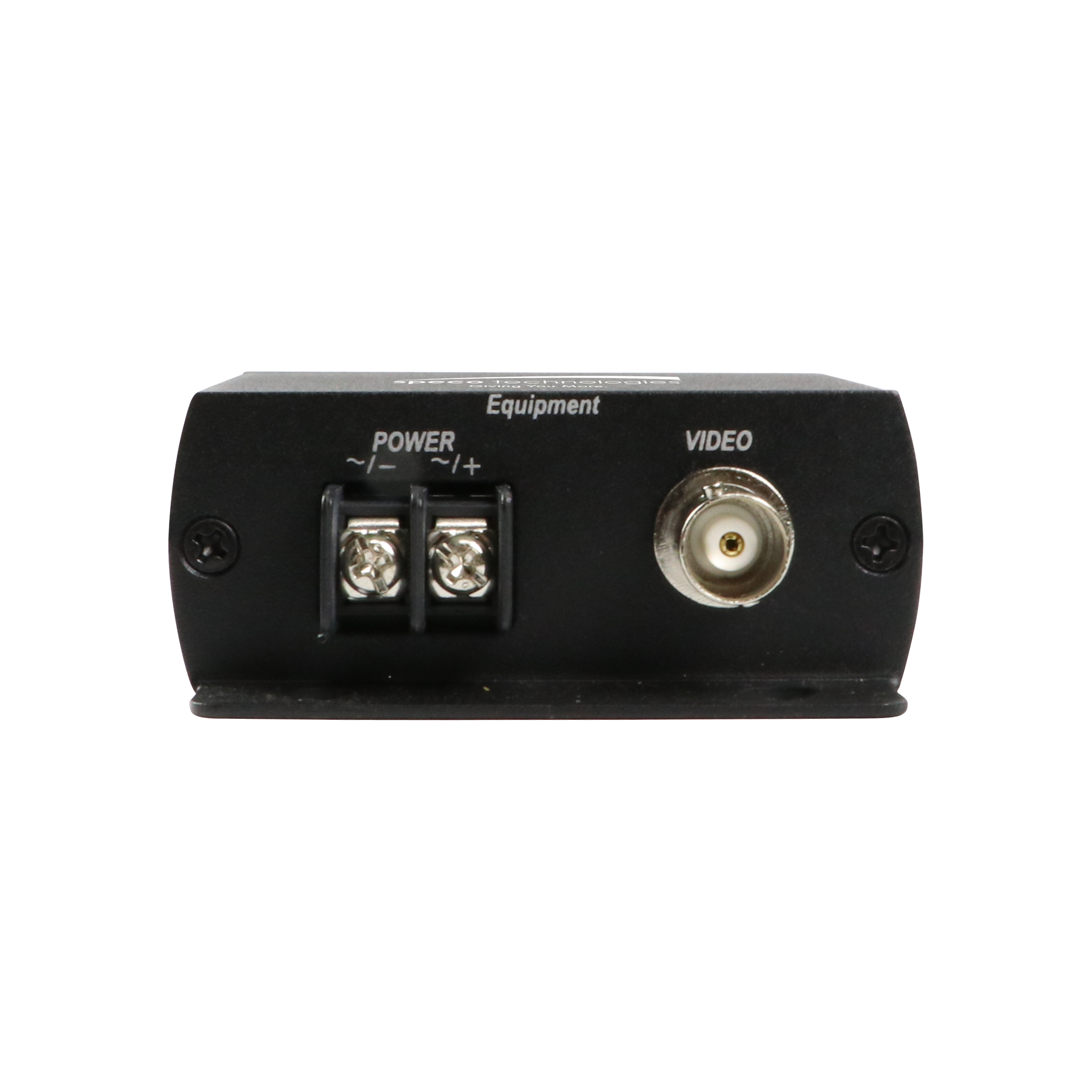

| Equipment End | 1 x BNC Female, 1 x 2-pin Terminal Block |

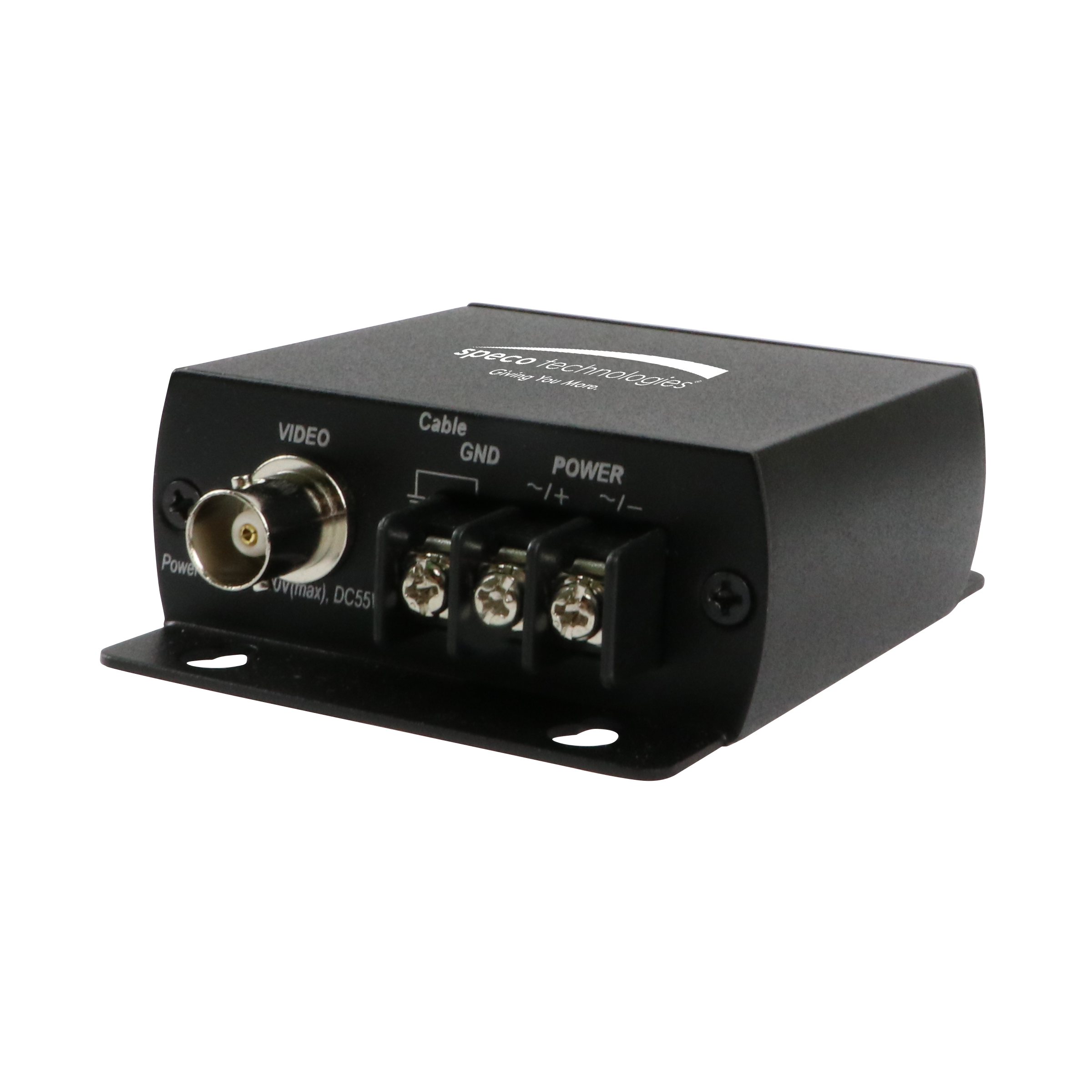

| Cable End | 1 x BNC Female, 1 x 3-pin Terminal Block |
| Ambient Temperature | |
| Operation | 14 to 185°F (-10 to 85°) |
| Storage | -40 to 221°F (-40 to 105°) |
| Humidity | 95% |
| Physical Characteristics | |
| Dimensions | 2.6 x 3.4 x 1" (67 x 87 x 27mm) |
| Weight | 0.3 Lbs (145g) |
