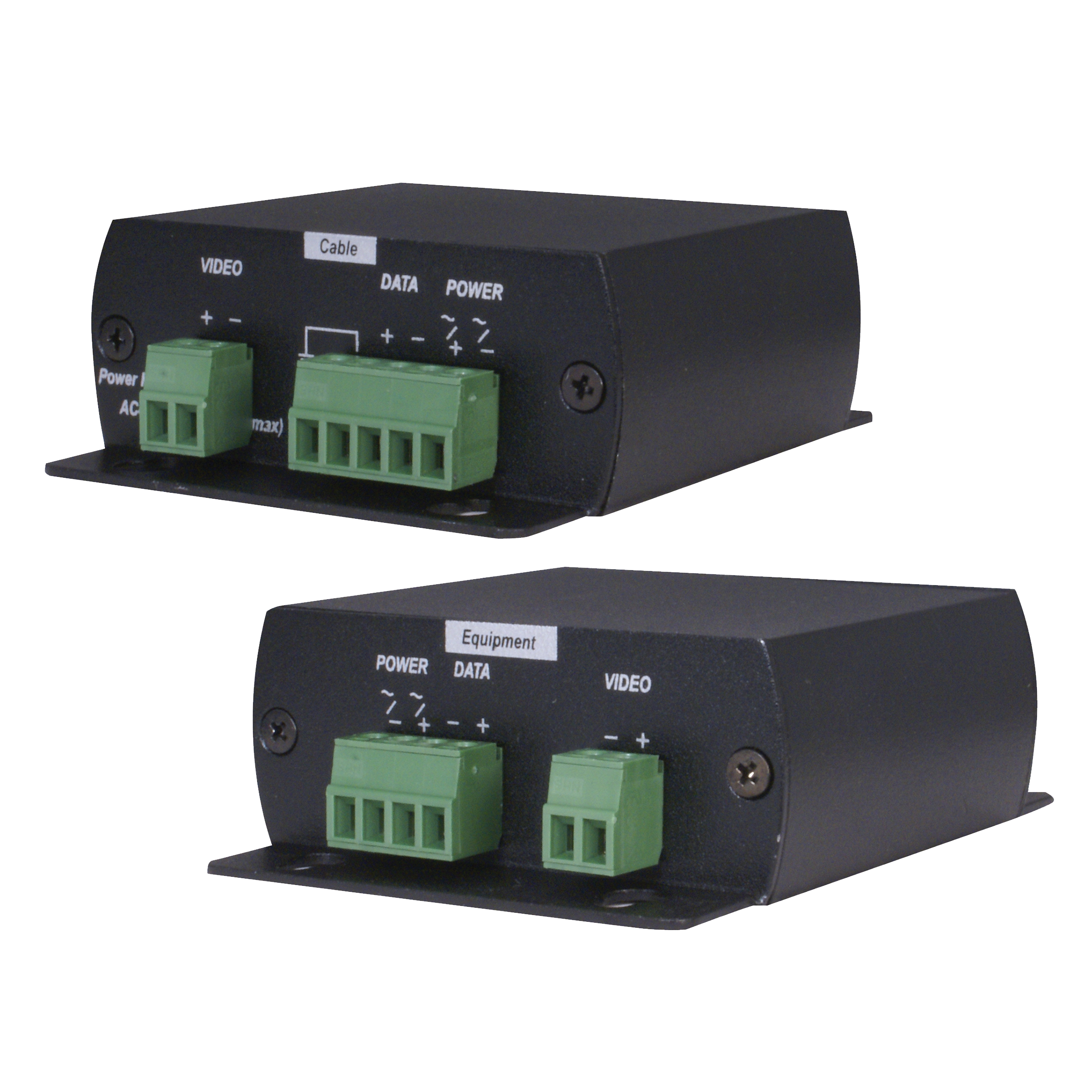

Speco - SPUTPVD - UTP Data Surge Protector Terminal Connector
Part number:
Price:
Product Overview
• Terminal connector to terminal connector • Perfect for video or data signal protection **Products are in compliance with NDAA Section 889 Part B Guidelines Unshielded Twisted Pair (UTP) Surge Protector for Video/Data
Key Configuration
Model: SPUTPVD
Key Features
- • Performs a complementary function to grounding requirements.
- • Protects equipment from high voltage surges from nearby lightning strikes.
- • Two stage protection: 130V, AC/DC 12V.
- • Wide range of applications: CCTV systems, antennas, satellite receivers, FM receivers, video cameras, monitors, multiplexers & quad processors, recorders, etc.
- • Sold each, but recommended to use in pairs.
Installation Notes
2.6" (L) × 1" (W) × 1" (H) (65x25x25mm)
| Specifications | |
| Surge Protection Attack Time | 1 ns |
| Maximum Surge Voltage | 4 kV |
| Surge Life | 300 surges of 100Amps |
| Normal Resistance Across Coax | 10,000 M Ω |
| Surge Resistance | Approx. 0 Ω |
| BAND PASS | 0 ~ 1 GHZ |
| Power Passing Capability | 130V AC/DC, 65 Vrms @10Amps |
| Insertion Loss | Less than 0.2 dB |
| Return Loss (75 Ω ) | 16 dB |
| Connectors | Terminal |
| Unit Dimensions | 2.6" (L) × 1" (W) × 1" (H) (65x25x25mm) |
| Weight | .14 lbs (65g) |
