Product Overview
Products are in compliance with NDAA Section 889 Part B Guidelines. SRD100 100W Speaker Horn Driver + SRH20 Horn Casing IMPORTANT NOTES Before connecting and using this product, please read this instruction manual carefully and keep it on hand for future reference. The manual is to be considered an integral part of this product and must accompany it if ownership changes, to serve as a reference for correct installation and use as well as for the safety precautions. Any incorrect installation or use of this product will void the warranty. WARNING Contact your Speco Technologies technical support should any of the following occur: the Driver Unit does not function (or works in an anomalous way). the cable has been damaged. objects or liquids have gotten into the Driver Unit. the Driver Unit has been damaged due to impact or fire.
Key Configuration

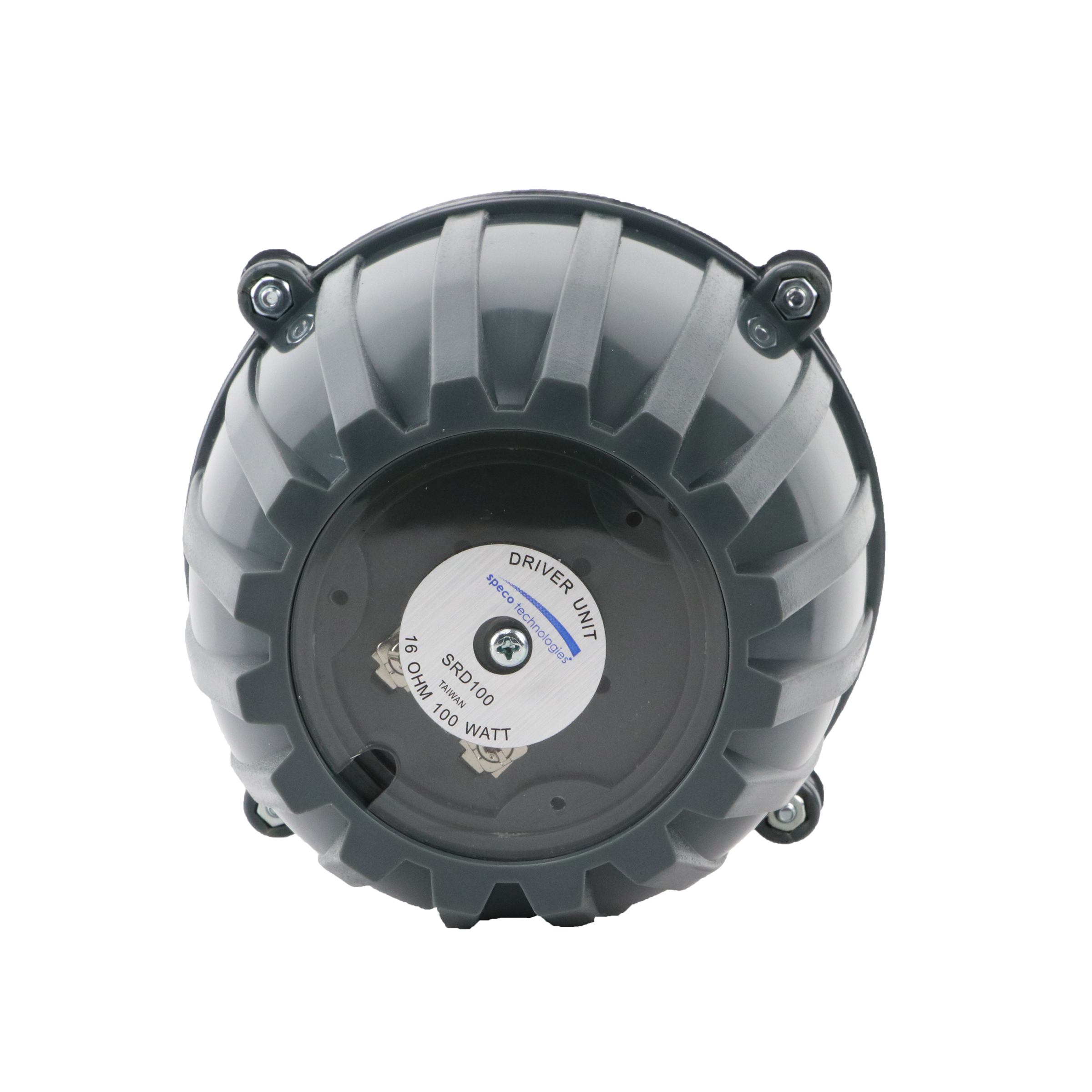

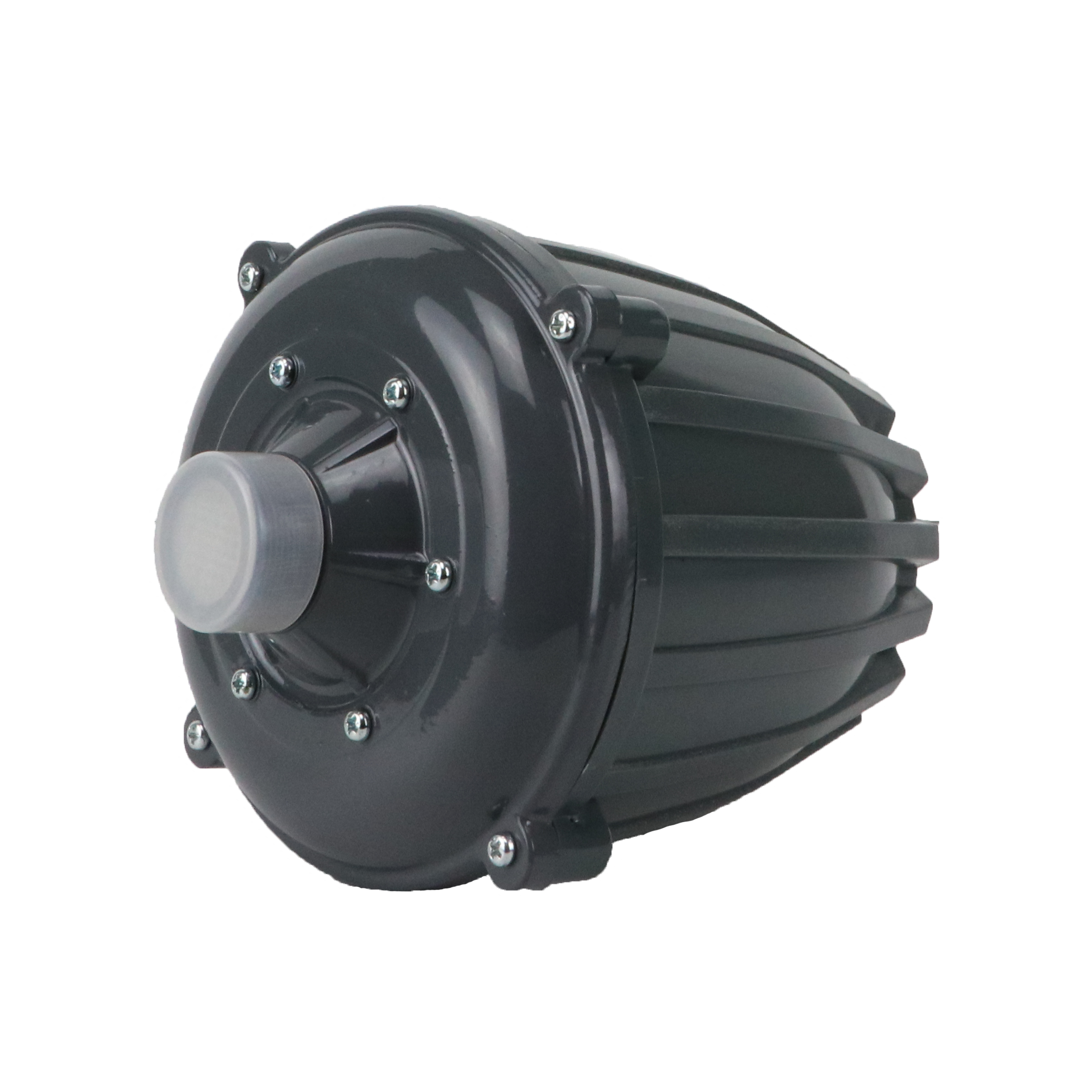

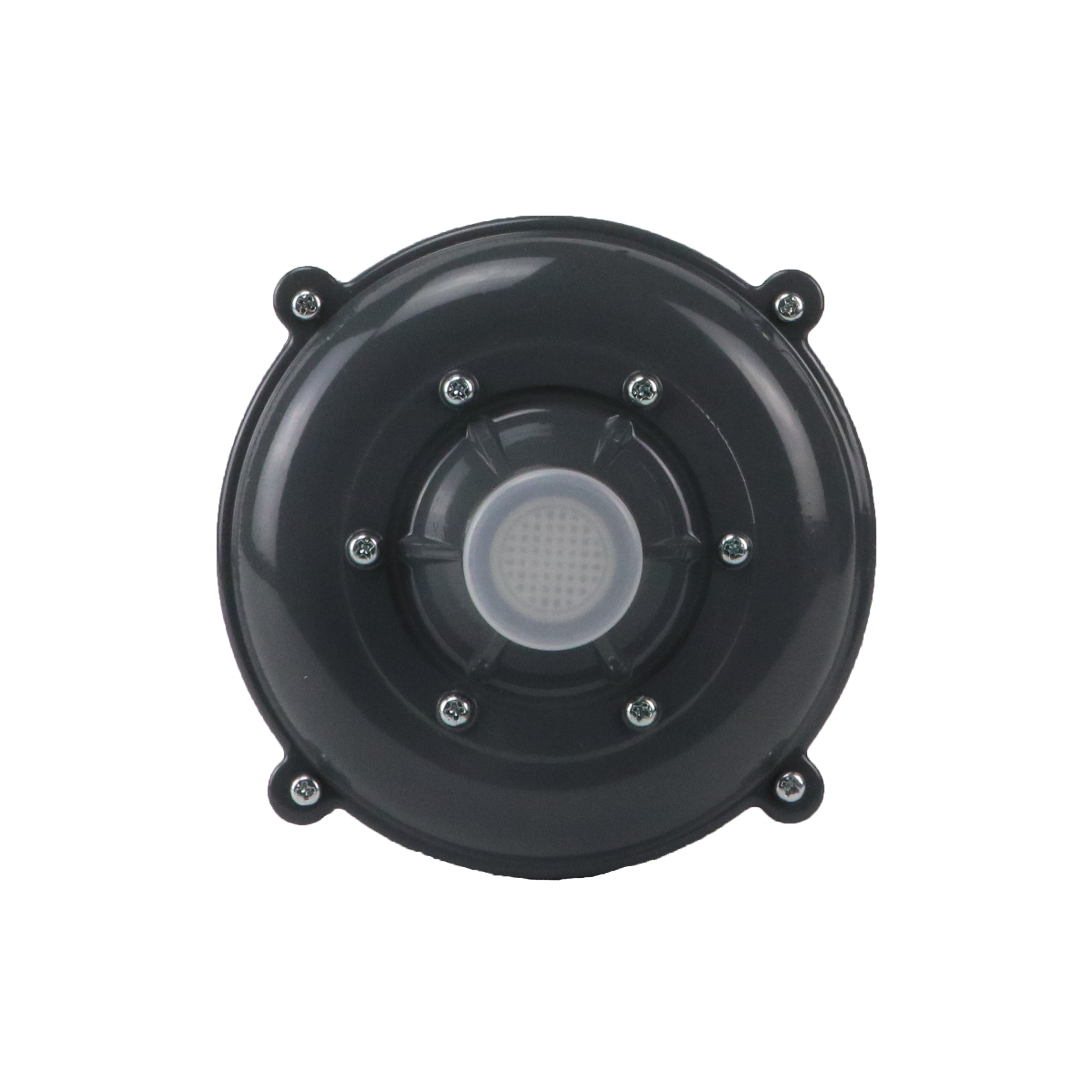

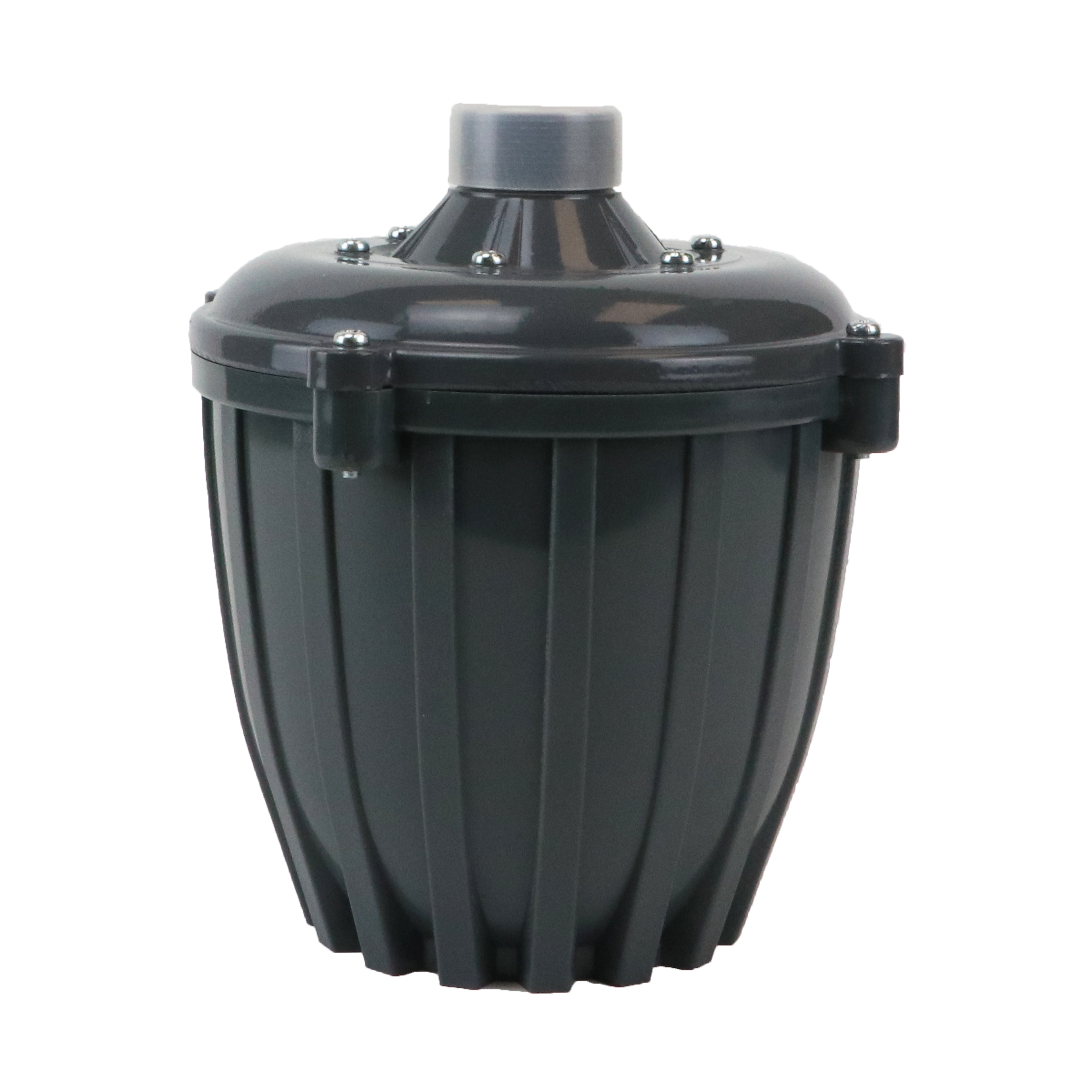

Model: SRD100
| Full Specifications | |
| Frequency Response | 250Hz to 8kHz |
| Impedance | 16 Ohms |
| Power | 100W RMS, 120W Max |
| Sensitivity (1W/1M) | 113 dB |
| Throat diameter | 1.3 x 18 TPI |
| Frequency Range | 500 Hz - 20 kHz |
| Nominal Impedance | 16 Ohm |
| Sensitivity | 108 dB |
| Connector Type | 2-wire |
| Thread Size | 3/8 - 18 |
