Speco - SXP400 - Solar Powered Panel with Mounting Hardware
Part number:
Price:
Product Overview

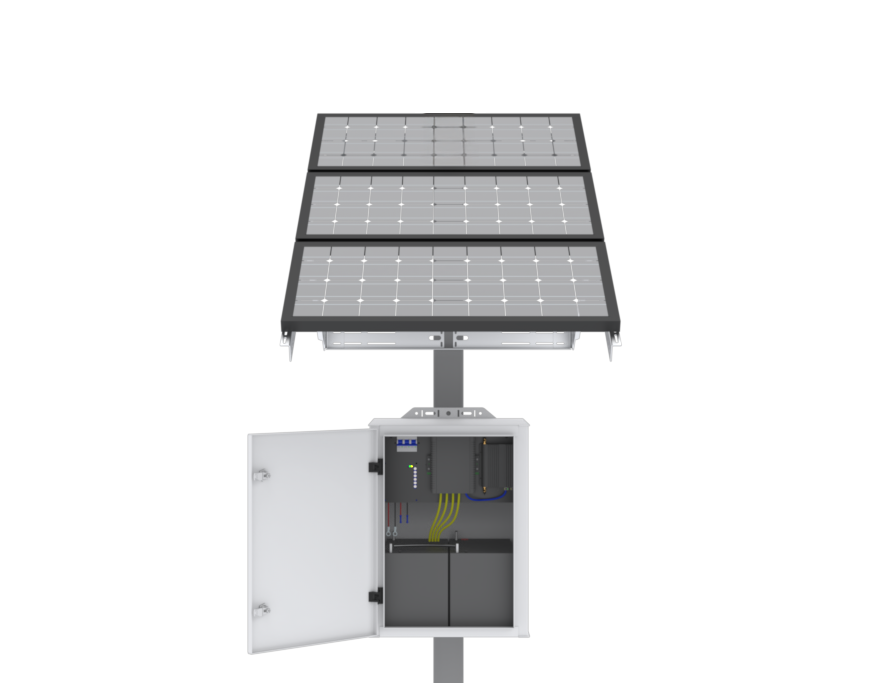

Solar Powered Panel with Mounting Hardware This is manufacturer documentation for product model SXP400.
Key Configuration
Model: SXP400 | 2) 200W solar panels, enclosure, charge controller, PoE switch
Key Features
- • Solar panel and mounting hardware included.
- • Weather-proof aluminum enclosure and mounting hardware included.
- • Lockable wing-knob; locks with pad lock (pad lock not included).
- • Hardwired PoE switch, converters, charging equipment, charging equipment, and are self-contained and safeguarded against environmental factors and tampering.
- • *SIM card not included.
Installation Notes
40"(L) x 27"(W)
| Full Specifications | |
| Network Operator Certifications | AT&T®, T-Mobile®, Verizon® |
| Solar Panel Specifications | |
| Part Number | SXP400 |
| Number of Panels | (6) 100W |
| Individual Panel Dimensions | 40"(L) x 27"(W) |
| Panel Weight (With Mount) | 120 lbs. |
| Recommended Pole Size | 8" Pole |
| Wind Rating | 100 mph |
| Output Voltage | 24VDC |
| Solar Charge Controller | Advanced charge control with max power point tracking (MPPT) algorithm |
| Enclosure Specifications | |
| Enclosure Size | 32"(H) × 24"(W) × 16"(D) |
| Battery Capacity | (4) 100Ah batteries (not included) |
| 100Ah Battery Size* | 9.2"(H) × 12.3"(W) × 6.7"(D) |
| Enclosure Weight | 28 lbs. |
| Pole Size | 4" to 6" (recommended, straps not included) |
| Material | Aluminum |
| Operating Temperature | -40°F - 140°F |
| Remaining Wattage for Camera Use | |
| Solar Array Size | Zone 1 |
| 400W | 55W |
