Product Overview

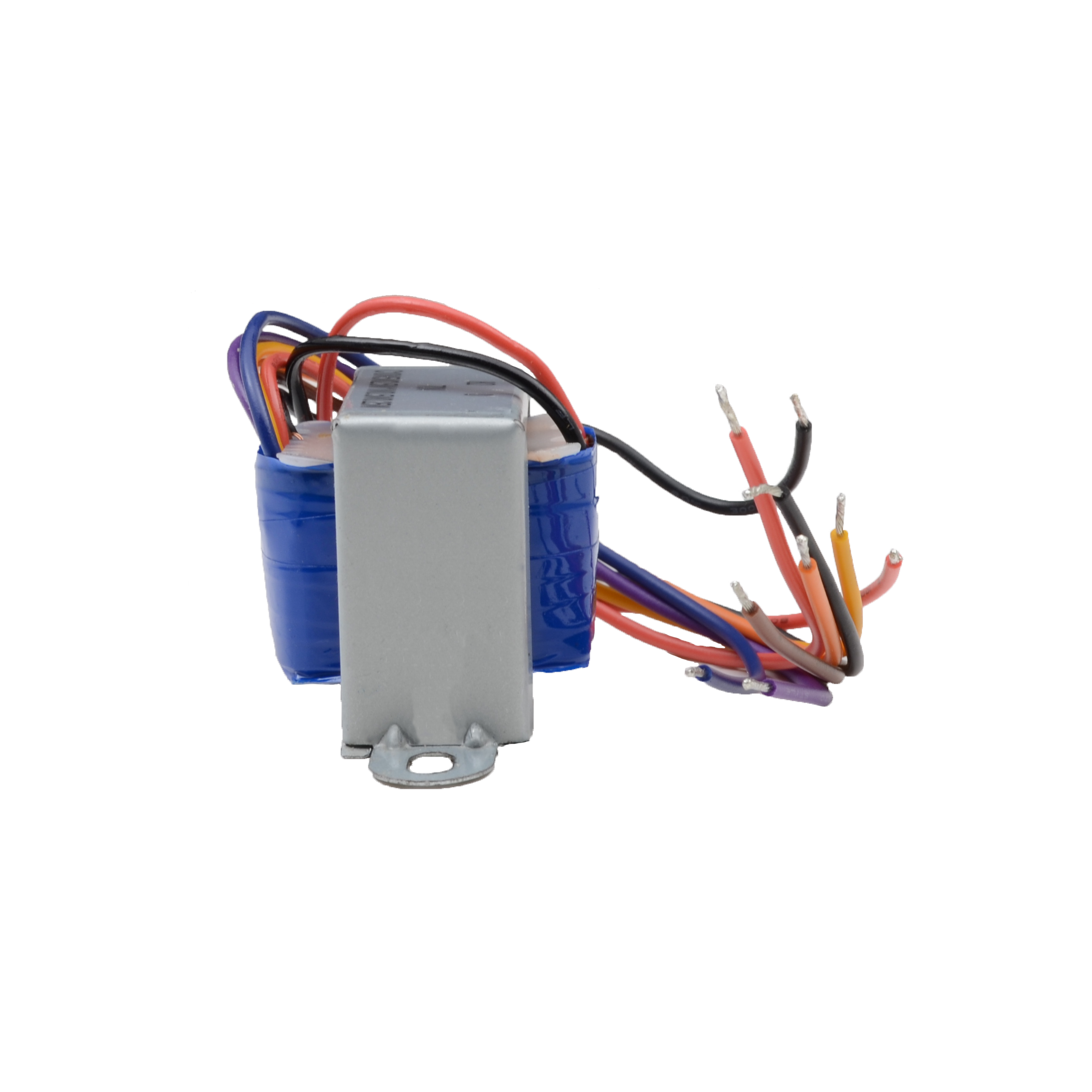

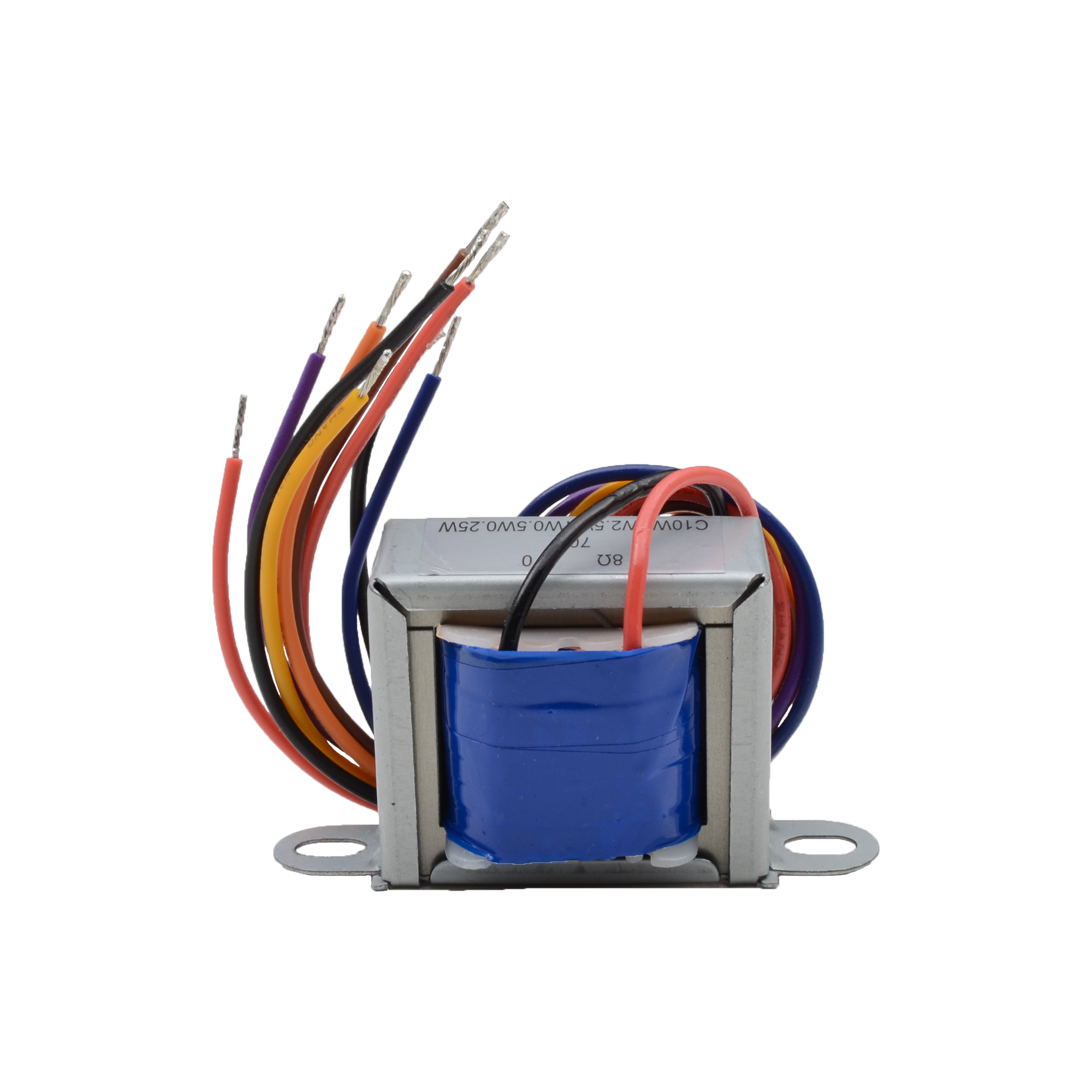

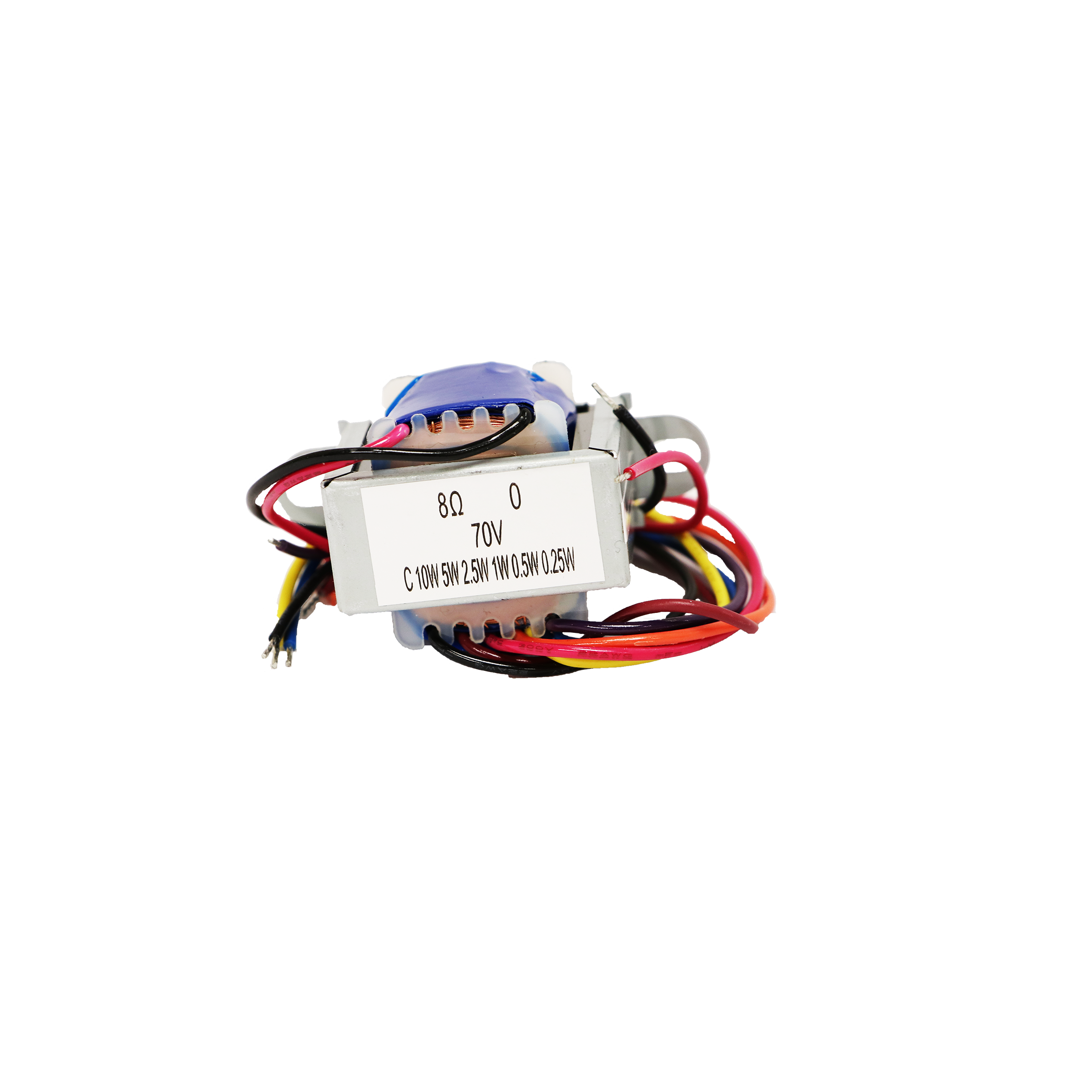

Our 70 volt 10 watt line transformer has wattage taps. It has 10, 5, 2.5, 1.25, and 0.625 watt taps. It also offers color coded leads. **Products are in compliance with NDAA Section 889 Part B Guidelines** Audio Line Matching Transformer
Key Configuration
Model: T7010
Installation Notes
3.5 x 7 x 2
| Specification | |
| Input Voltage | 70V |
| Primary Taps | 0-10W-5W-2.5W-1W-0.5W -0.25W/70V |
| Primary Impedance | |
| Sec. Load | 0-8Ω |
| Frequency Response | C - 490Ω - 980Ω - 1960Ω - 4900Ω - 9800Ω -19600Ω +/- 10% AT 1 KHz |
| Insertion Loss | - 1.0db Max. AT 1 KHz (10W/8Ω) T. |
| H.D. | 2 % MAX. AT 70Hz |
| Size | EI-35 x 18 |
Name
Description
Size
Downloads
File
Specification Sheet
0.9mb
File
User Manual
0.1mb
