Product Overview
Our 70 volt 20 watt high application speaker line transformer has 5, 10, 15, and 20 watt taps. It also offers color coded leads. **Products are in compliance with NDAA Section 889 Part B Guidelines** This unit is ideal for converting 4 or 8 Ohms residential style speakers to a constant voltage 70V format for use in commercial installations. With this accessory, literally any 8 Ohms speaker could potentially be used in a 70V system.
Key Configuration

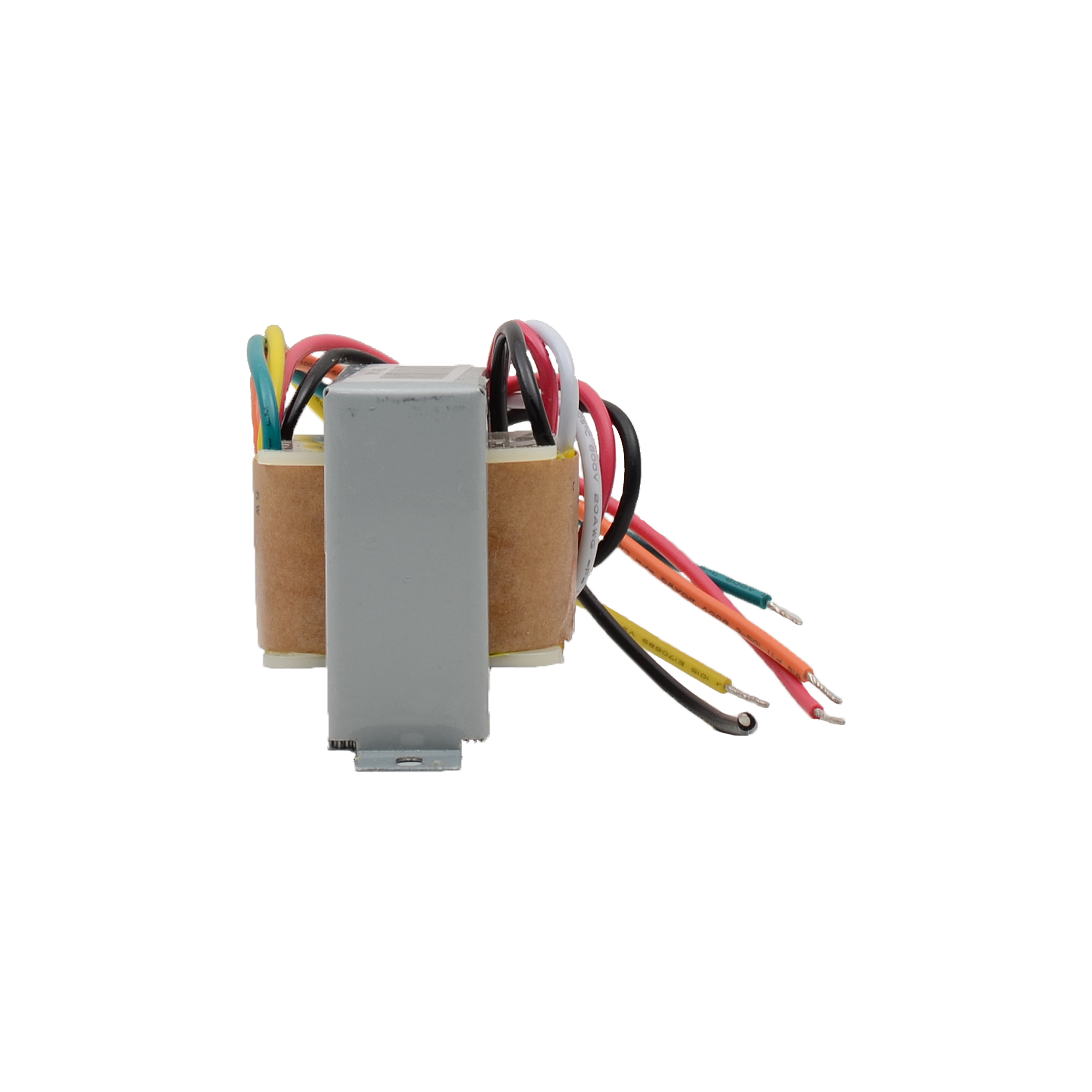

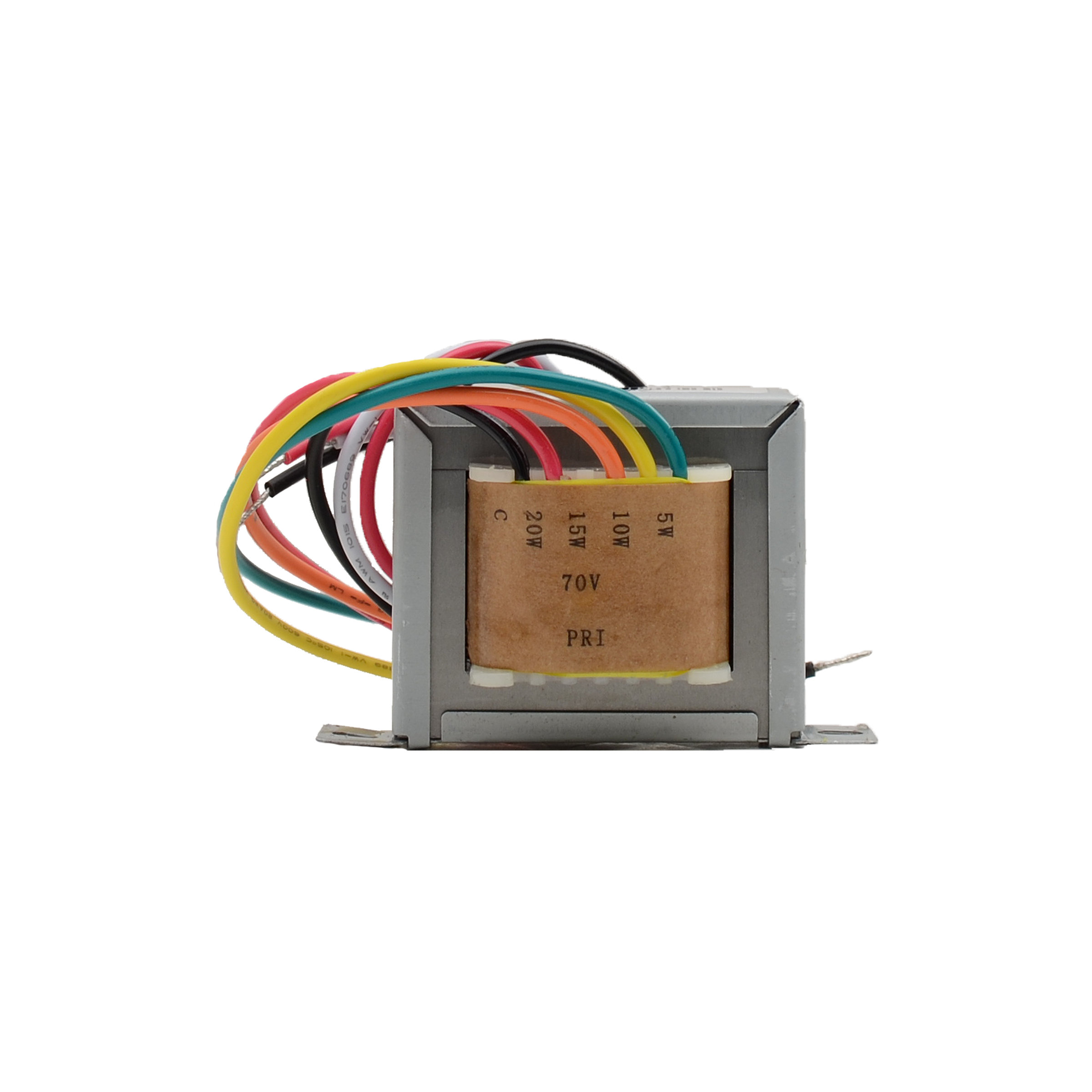

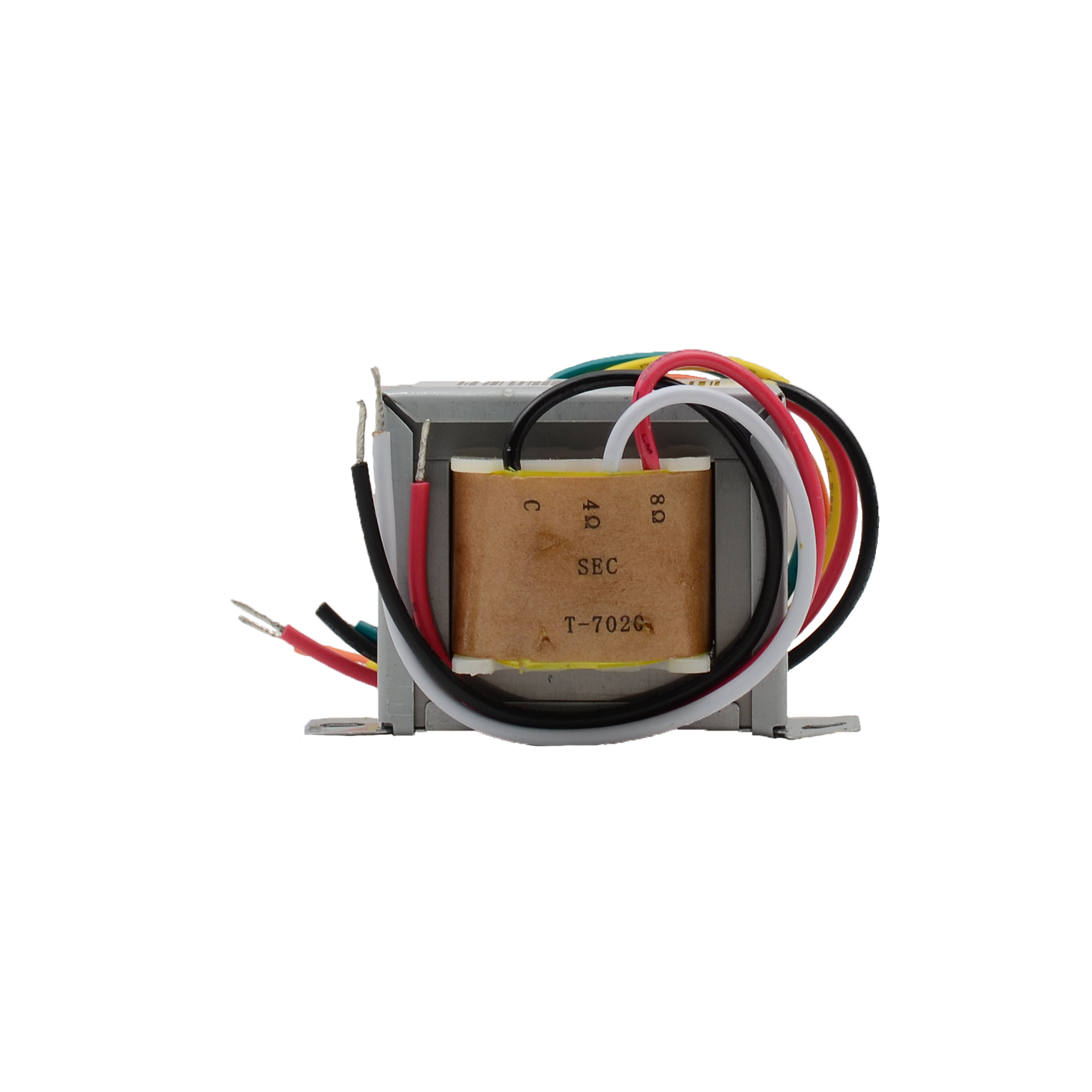

Model: T7020
Installation Notes
4.25"L x 3.25"W x 2.5"H
| Specifications | |
| Power Output | 20W |
| Input Voltage | 70V |
| Output Impedance | 4/8 Ohm |
| Power Taps | 20W, 10W, 5W |
| Dimensions | 4.25"L x 3.25"W x 2.5"H |
| Weight | 2 lbs. |
Name
Description
Size
Downloads
File
User Manual
0.3mb
