Speco - TVI16UTP - 16 Channel Passive Transceiver
Part number:
Price:
Product Overview

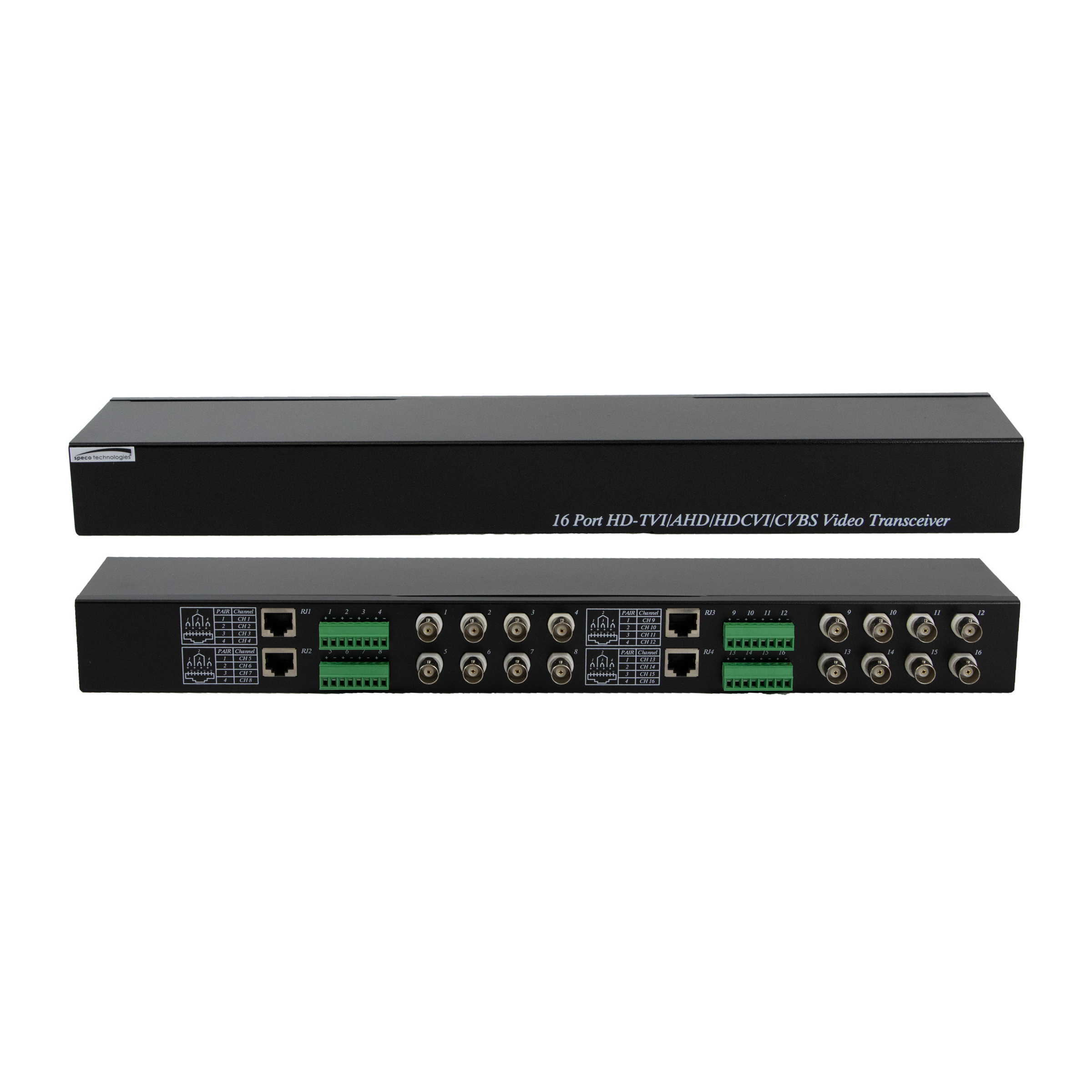

Send TVI camera signals up to 800’ over UTP cable. 16 port passive HD video transceiver in 1U 19” rack mounting panel. Choice of 4 x RJ45 or 4 sets x 8 pin removable screw terminal for 16 channels of HD-TVI inputs/outputs. Also works with AHD/CVI/CVBS signals over UTP cable. Passive, no power required. Eliminate coaxial cable. Use in conjunction with TVIUTP and TVIUTPPT (sold separately). Built in ESD, EFT (impulse noise) and transient protection.
Key Configuration
Model: TVI16UTP
Key Features
- • Send TVI camera signals up to 800’ over UTP cable.
- • 16 port passive HD video transceiver in 1U 19” rack mounting panel.
- • Choice of 4 x RJ45 or 4 sets x 8 pin removable screw terminal for 16 channels of HD-TVI inputs/outputs.
- • Also works with AHD/CVI/CVBS signals over UTP cable.
- • Passive, no power required.
Installation Notes
19" x 4" x 1.75" (483 x 103.5 x 44m) (1U)
| Full Specifications | |
| NDAA Compliance | Yes |
| Video Input /Output | BNC x 16 (1 Vp-p 75 Ohm) |
| RJ45 Output | 8 Pin removable terminal x 4 (100 Ohm) /RJ45 x 4 |
| Cable | CAT5e/CAT6 UTP |
| Bandwidth | 50Hz ~ 60MHz (-3dB) |
| Power | X |
| ESD protection | 30 KV(Air) 15 KV (Contact); IEC 61000-4-2 compliant |
| EFT protection | 40A(5/50ns); IEC 61000-4-4 compliant |
| Lightning protection | 2A (8/20µs); IEC 61000-4-5 compliant |
| Surge Protection Attack Time | < 1 nS |
| Environmental Specifications | Operation: 32 to 131 °F (0 to 55 ), Storage: -4 to 185°F (-20 to 85 ), Humidity: up to 95% |
| HD-TVI/AHD/HDCVI/CVBS Video Balun Distance Chart | |
| HD-TVI | 1080P 800' (250M) 5MP 650' (200M) |
| AHD | 1080P 800' (250M) 4MP 650' (200M) |
| HDCVI | 1080P 980' (300M) 5MP 650' (200M) |
| CVBS | 980' (300M) |
