Product Overview

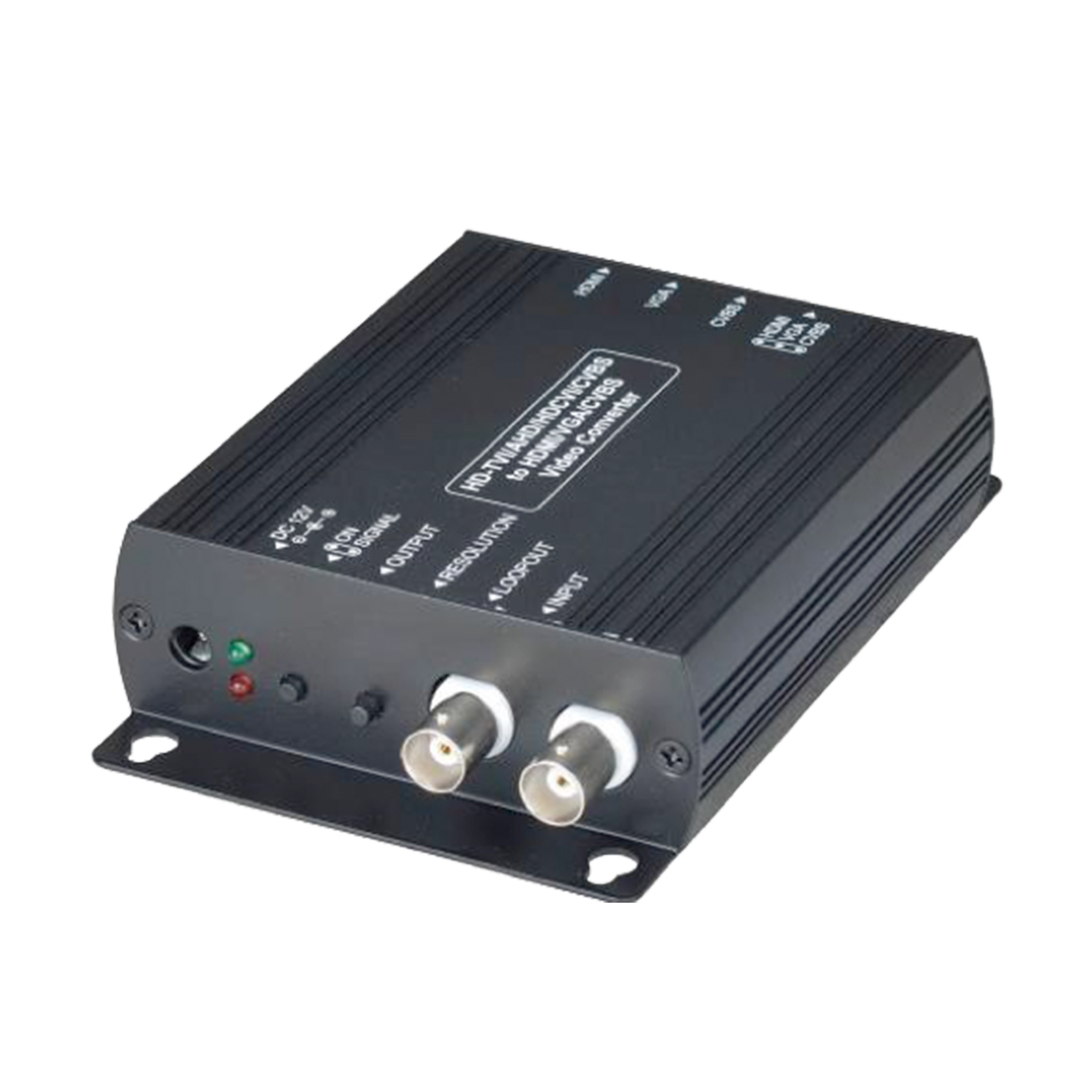

Converts HD-TVI/AHD/HDCVI/NTSC/PAL/960H signals to HDMI, VGA or Composite Video. Supports: 720p@25/30/50/60, 1080p@25/30Hz. Built-in loopout. Built-in LED lights on unit to indicate selection. OSD displayed on monitor to indicate input/output settings. Includes 12V power supply. Products are in compliance with NDAA Section 889 Part B Guidelines.
Key Configuration
Model: TVIHD
Installation Notes
3.5" x 5.1" x 1.2"
| Full Specifications | |
| Power Supply | 12V |
| Input Signals | HD-TVI/AHD/HDCVI/NTSC/PAL/960H |
| Video Output Resolution | 720p@25/30/50/60, 1080p@25/30Hz |
| Video Input | HD-TVI/AHD/HD-CVI 720p@25/30/50/60Hz, 1080p@25/30Hz, NTSC/PAL/960H |
| Video Output | HDMI: 720p/60, 1080p/60 VGA: 800x600/60, 1024x768/60, 1280x720/60, 1280x1024/60, 1360x768/60, 1440x900/60, 1600x1200/60, 1680x1050/60, 1920x1080/60 |
| Input Connector | BNC (75Ω1Vpp) x 1 |
| Loop Connector | BNC (75Ω1Vpp) x 1 |

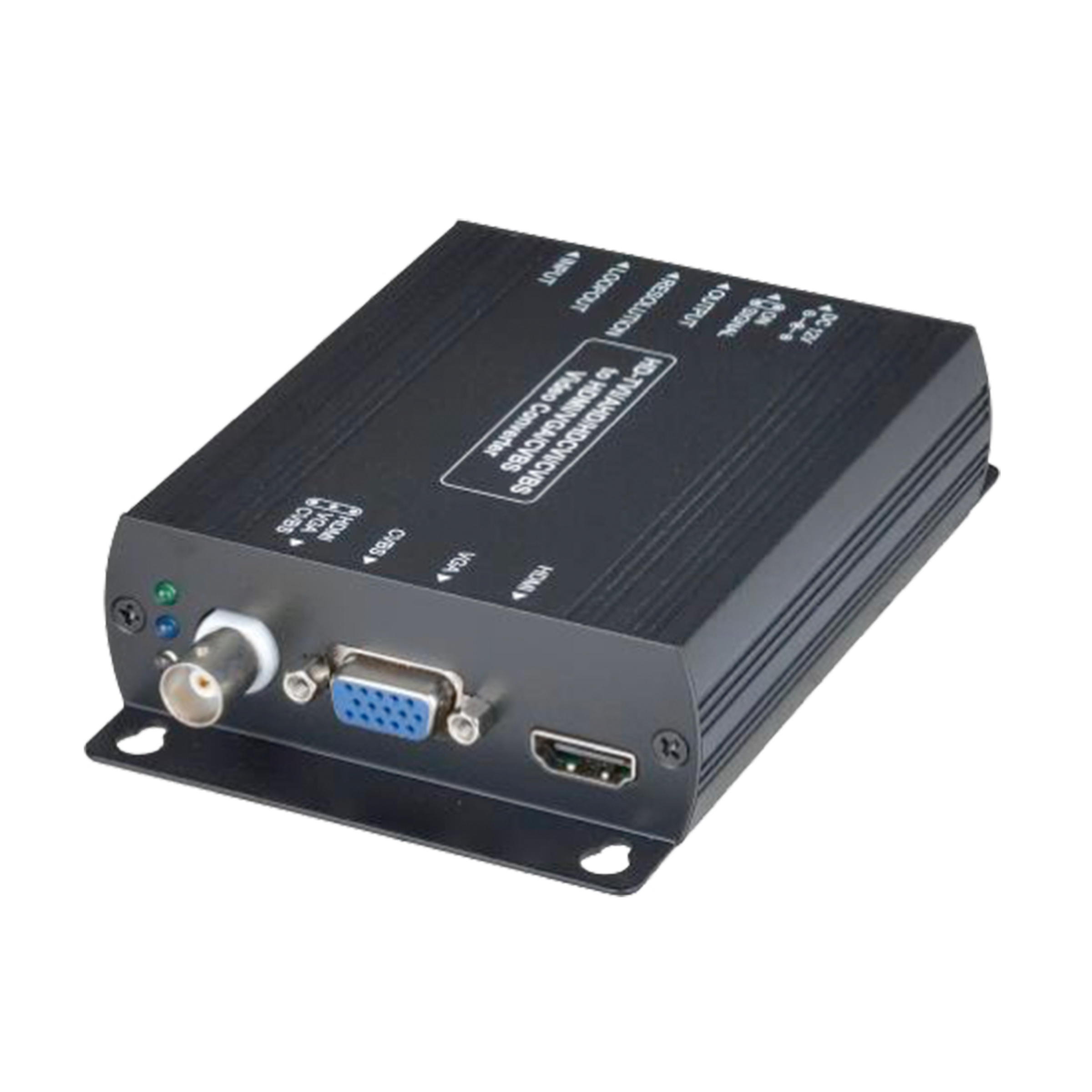

| Output Interface | HDMI Type-A x 1, D-SUB 15 x 1, BNC (75Ω1Vpp) x 1 |
| Switch | Tact Switch x 2 |
| Operating Specifications | |
| Dimensions ( L x W x H) | 3.5" x 5.1" x 1.2" |
| Power Consumption | 250mA (Max) |
| Temperature | Operating: 32° to 131°F (0° to 55°C), Storage: -4° to 185°F (-20° to 85°C) |
| Humidity | Up to 95% |
