Product Overview

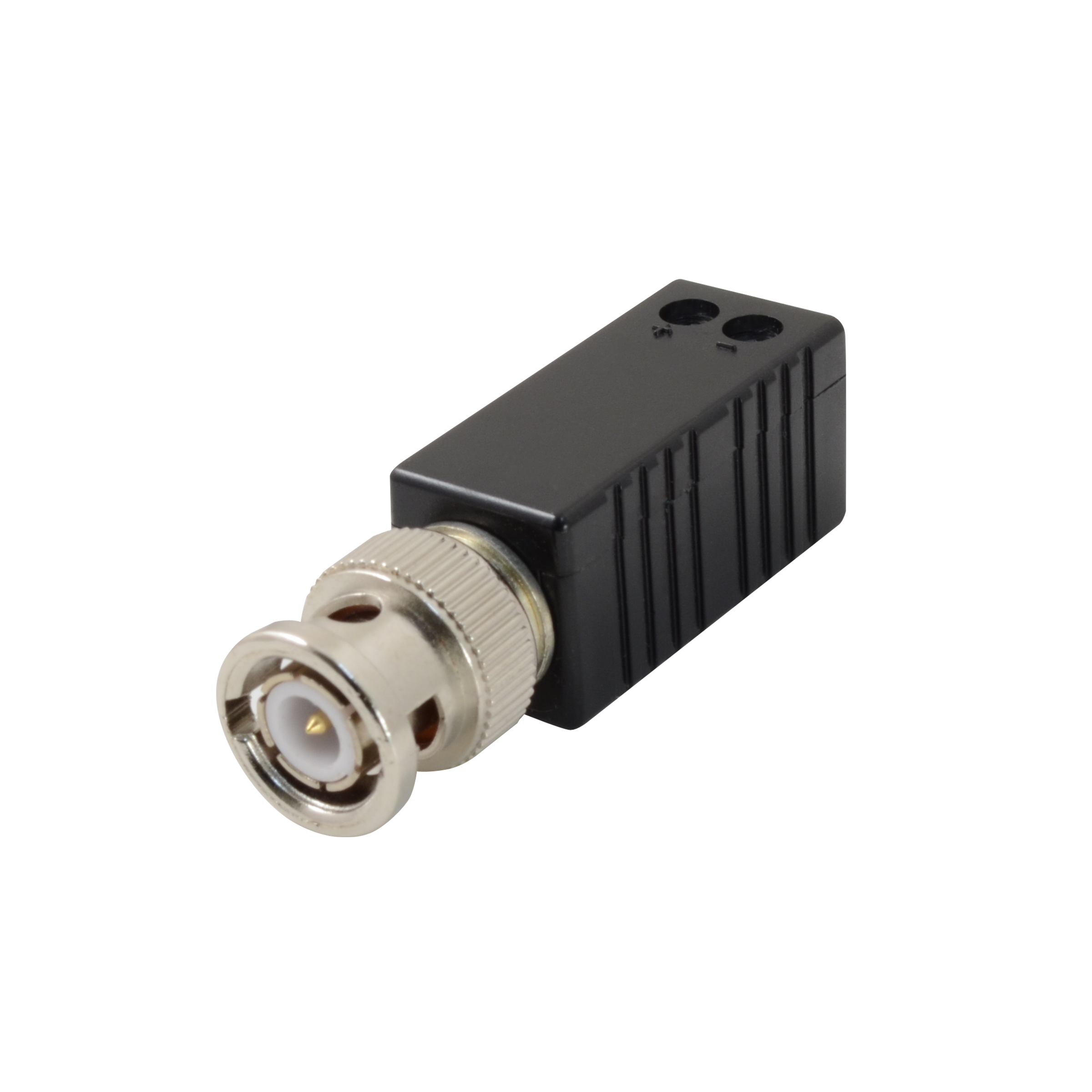

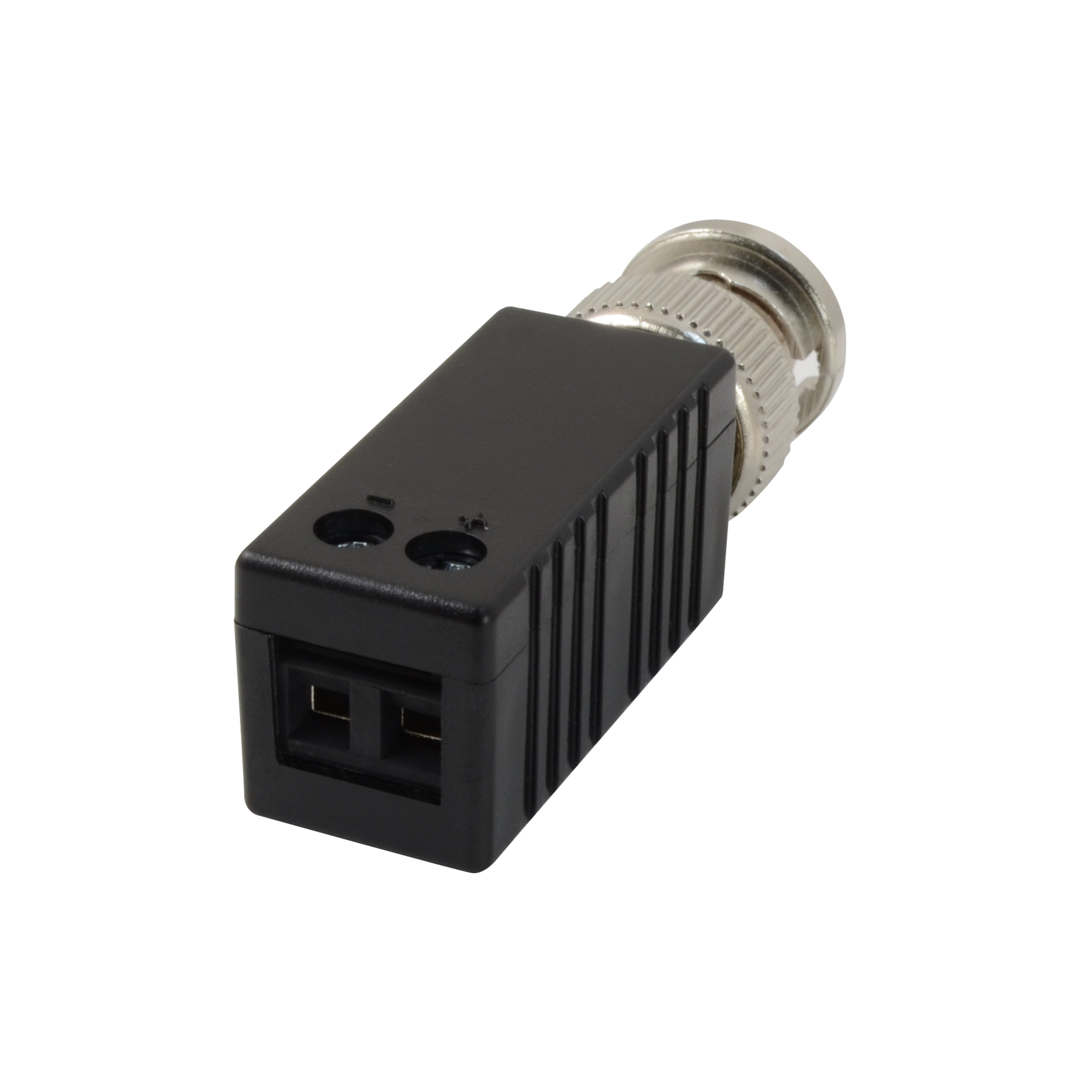

Send HD-TVI signal up to 656' (200M) over UTP cable. BNC male to screw terminal for easy connection. Compact size allows mounting of multiple units behind multiplexers, Quads, DVRs, etc. Passive, No power required. Ideal for retrofits using existing UTP cable. Built in ESD, EFT (impulse noise), lightning (surge) and transient protection.
Key Configuration
Model: TVIUTP
Key Features
- • Send HD-TVI signal up to 656’ (200M) over UTP cable.
- • BNC male to screw terminal for easy connection.
- • Compact size allows mounting of multiple units behind multiplexers, Quads, DVRs, etc.
- • Passive, No power required.
- • Ideal for retrofits using existing UTP cable.
Installation Notes
0.6” (W) x 2” (H) x 0.6” (L)
| Full Specifications | |
| Compliance | NDAA Section 889 Part B Guidelines |
| Video Input (BNC Connector) | 1 |
| Video Input | 1Vp-p, 75 Ohms |
| Cable | Twisted Pair CAT 5 |
| Bandwidth | 50Hz - 60MHz ( -3dB ) |
| Transmission Distance | HD-TVI: 656’ (200M) |
| RJ-45 Output | Terminal |
| ESD Protection | 30 KV(Air) I 15 KV (Contact) ; IEC 61000-4-2 compliant |
| EFT Protection | 40A(5/50ns) ; IEC 61000-4-4 compliant |
| Lighting Protection | 2A (8/20μs) ; IEC 61000-4-5 compliant |
| Surge Protection Attack Time | < 1 nS |
| Operating Temperature | 32° F - 131° F, |
| Storage Temperature/Humidity | -4° F - 185° F / up to 95% |
