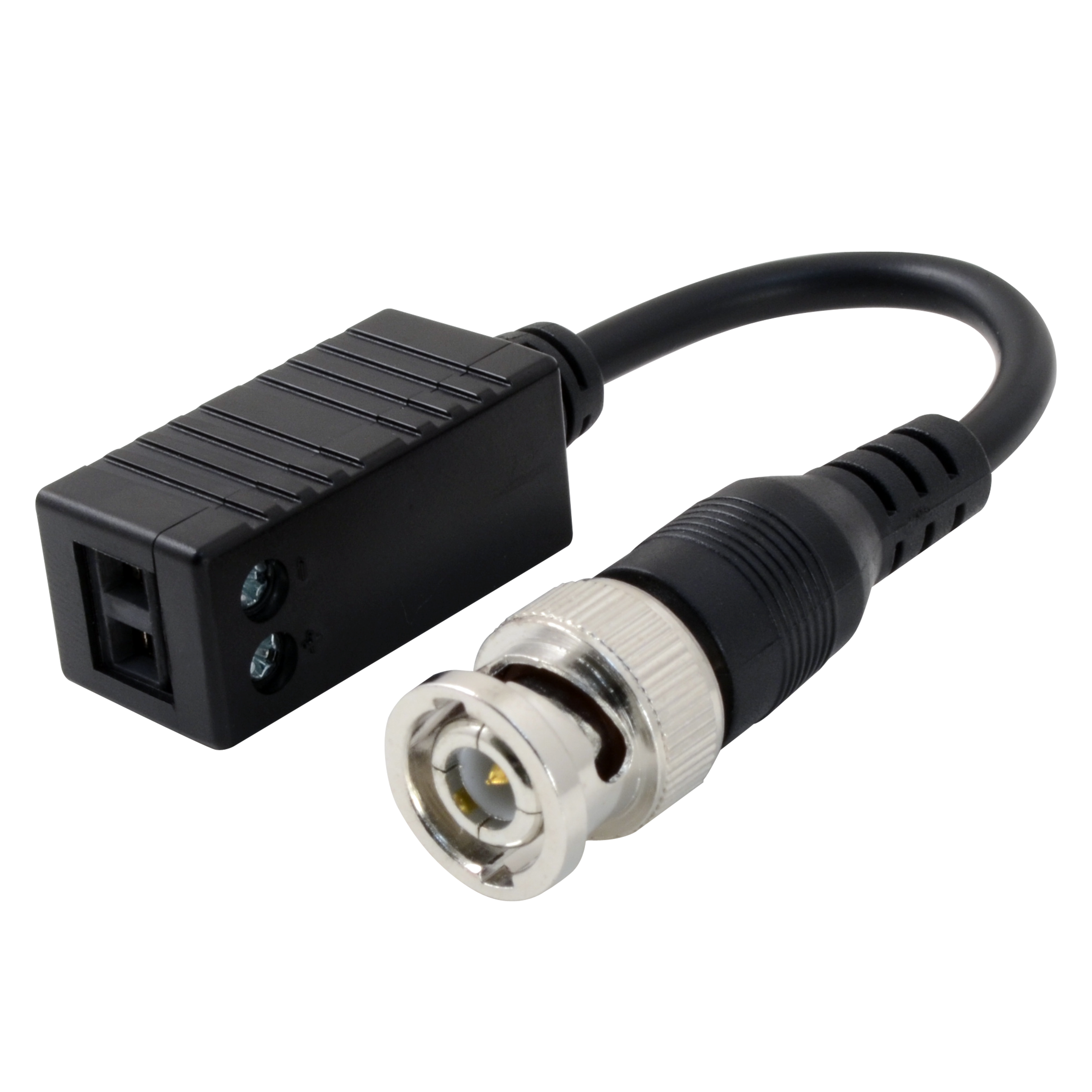

Speco - TVIUTPPT - HD-TVI Balun over UTP with Pigtail
Part number:
Price:
Product Overview
• Send HD-TVI signal up to 656’ (200M) over UTP cable. • BNC male to screw terminal with 4” (10cm) mini coax cable for easy connection. • Compact size allows mounting of multiple units behind multiplexers, Quads, DVRs, etc. • Passive, No power required. • Ideal for retrofits using existing UTP cable. • Built in ESD, EFT (impulse noise), lightning (surge) and transient protection. • Used in pairs (Sold individually). • Sold individually but used in pairs. Could be used in conjunction with another TVIUTPPT, or with the non-pigtail model TVIUTP. **Products are in compliance with NDAA Section 889 Part B Guidelines.
Key Configuration
Model: TVIUTPPT
Installation Notes
0.6” (W) x 2” (H) x 0.6” (L)
| Full Specifications | |
| Length | 656' (200M) |
| Usage | Used in pairs |
| Power | Passive, no power required |
| Protection | Built-in ESD, EFT, lightning and transient protection |
| Video Input / Output Terminals | BNC Male 1Vp-p, 75 Ohms |
| Video On Put / Output Terminals | Terminal Block |
| Bandwidth | 50Hz - 60MHz ( -3dB ) |
| Transmission Distance | HD-TVI: 656’ (200M) |
| ESD Protection | 30 KV(air) I 15 KV (contact); complaint IEC 61000-4-2 |
| EFT Protection | 40A(5/50ns); IEC 61000-4-4 compliant |
| Lighting Protection | 2A (8/20μs); IEC 61000-4-5 compliant |
| Surge Protection Startup Time | < 1 nS |
| Operating Temperature | 32° F - 131° F, |
| Storage Temperature/Humidity | -4° F - 185° F / up to 95% |
