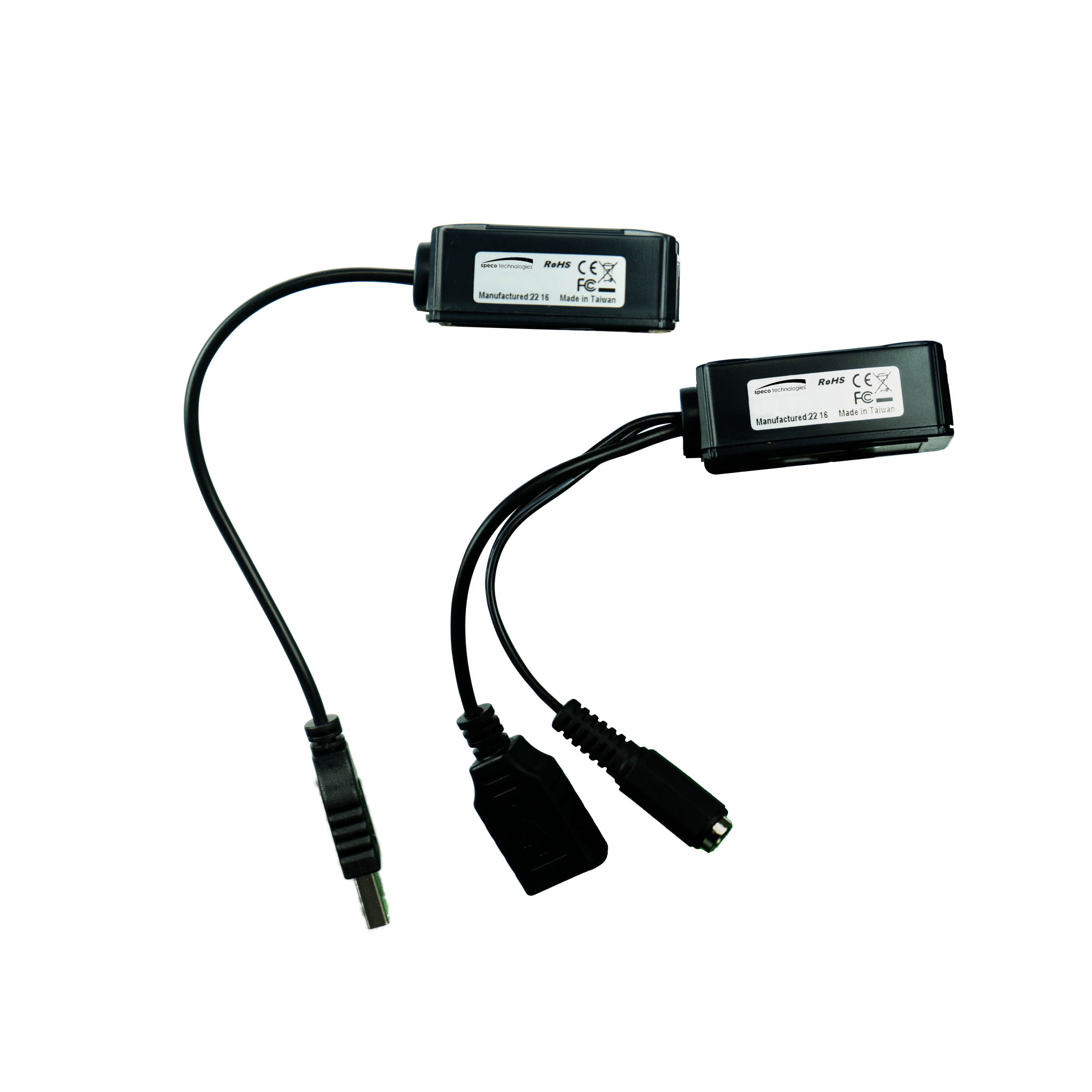

Speco - USBXT - USB 1.1 1-Port Cat5e Extender Kit
Part number:
Price:
Product Overview
- Resolution up to 5MP HD-TVI - Extends USB signal over an Ethernet cable - Signal extension with no external power needed up to 164’ (50M) - Ideal for extending your NVR/DVR mouse, or for PC applications - Includes transmitter and receiver RoHS CE FC Manufacture 422.16 Made in Taiwan YEAR 2 WARRANTY
Key Configuration
Model: USBXT
Installation Notes
2.71 x 1 x 0.9" (69 x 25 x 22mm) & 5" (130mm) cable
| Specifications | |
| Support | |
| Compliance | USB 1.1 |
| Data Bandwidth | 12Mbps |
| Max. Transmission Distance | 164' (50M) without power |
| Ports & Interfaces | |
| Data Input | 1 x USB Type A (Female) |
| Data Output | 1 x RJ45 |
| Power | |
| Optional Power Supply | DC 5V 500mA power supply(Not included) can extend an additional 68' (20M)500mA |
| Power Consumption | |
| Ambient Temperature | |
| Operation | 32 to 131°F (0 to 55°) |
| Storage | -4 to 185°F (-20 to 85°) |
| Humidity | Up to 95% |
| Physical Characteristics | |
| Dimensions | 2.71 x 1 x 0.9" (69 x 25 x 22mm) & 5" (130mm) cable |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
File
User Manual
0.9mb
