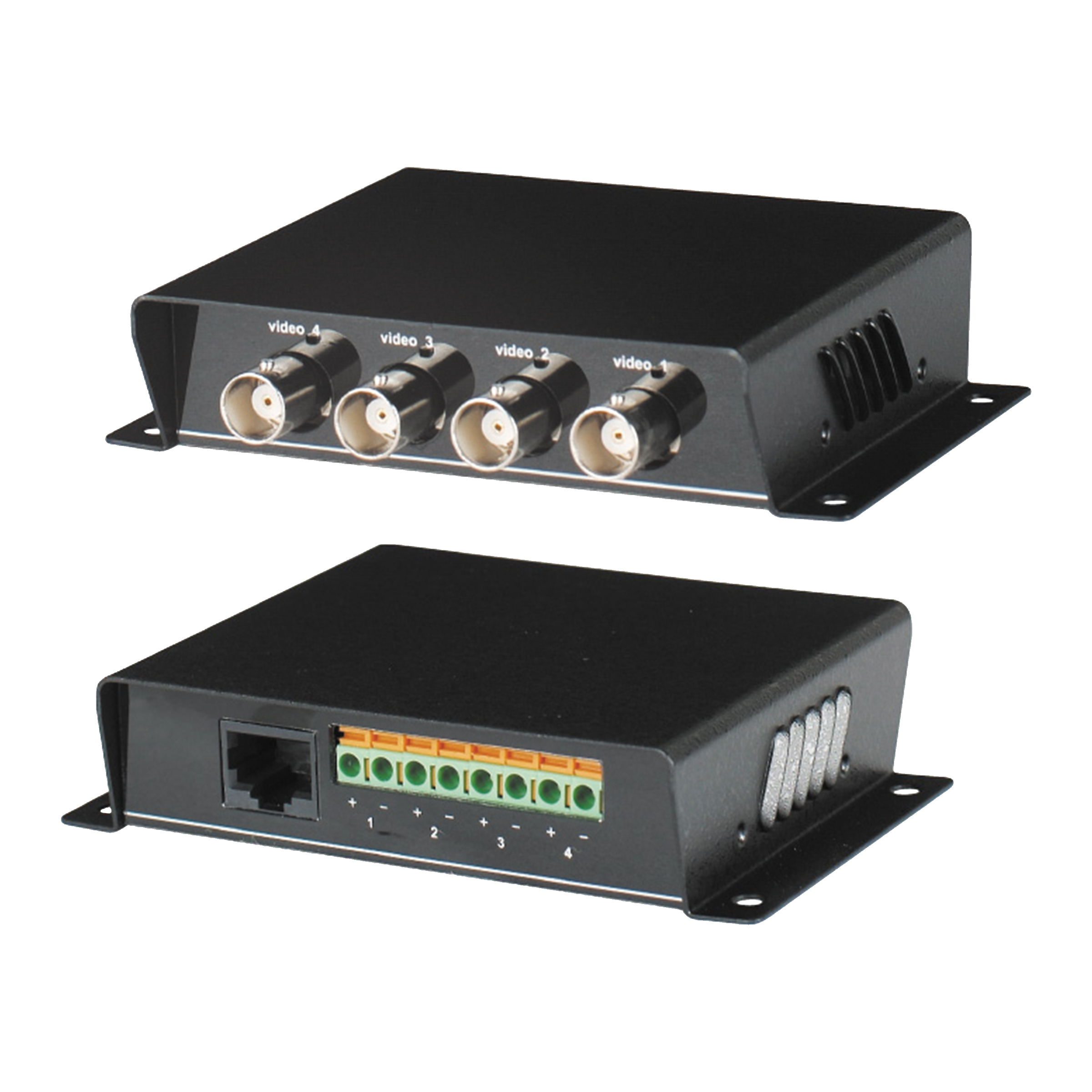

Speco - UTP4P - 4 Channel Passive Transceiver
Part number:
Price:
Product Overview
Products are in compliance with NDAA Section 889 Part B Guidelines.
Key Configuration
Model: UTP4P
Key Features
- • Transmit a full color standard analog video signal up to 984’ (300M).
- • Use 4 pairs CAT5 cable to transmit/receive 4 sets of video signals.
- • Passive, no power required.
- • Eliminate coaxial cable.
Installation Notes
4.3" (L) x 3.2" (W) x 1" (H)
| Full Specifications | |
| Product | UTP4P |
| Specification Sheet | https://specotech.com//wp-content/uploads/2023/08/UTP4P_spec.pdf |
| User Manual | https://specotech.com/wp-content/uploads/2020/04/UTP4PManual.pdf |
| Video Input | BNC x 4 |
| Video Output | Push Pin Terminal |
| Distance | 984' (300M) |
| Recommend Cable | CAT.5 UTP (AWG24) |
| Maximum Camera Resolution | 1000TVL Standard Definition |
| Temperature | Operation: 32°-131°F Storage: -4° - 185°F Humidity: up to 95% |
| Unit Dimensions | 4.3" (L) x 3.2" (W) x 1" (H) |
| Weight | .5 lbs |
