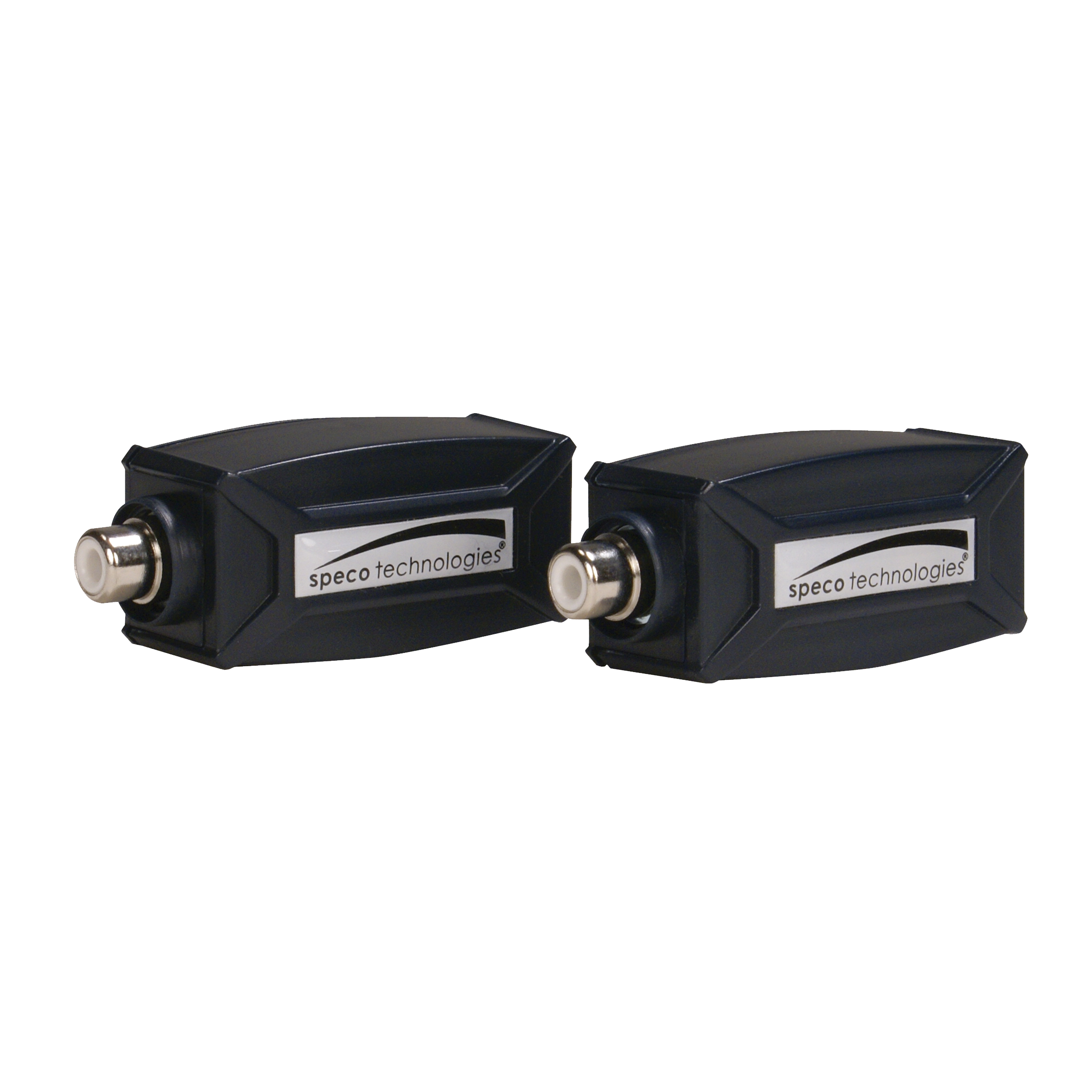

Speco - UTPAUDIO - Send audio up to 1968’ (600 meters) over UTP
Part number:
Price:
Product Overview
Analog Audio CAT5 Extender. Products are in compliance with NDAA Section 889 Part B Guidelines. This is manufacturer documentation for product model UTPAUDIO.
Key Configuration
Model: UTPAUDIO
Key Features
- • Send audio signal up to 1968’ (600 meters) via CAT5 UTP cable.
- • RCA female to 2 pin screw terminal.
- • 20Hz to 20Khz Frequency Response.
- • Available for 75-120ohm cable.
- • High performance to eliminate audio ground loop interference.
Installation Notes
2.3” (L) x 1” (W) x .8” (H) (59.3 x 25 x 20.7mm)
| Full Specifications | |
| Send audio distance | up to 1968’ (600 meters) over UTP |
| Frequency Response | 20Hz ~ 20kHz |
| Audio Input/Output | RCA x 1 |
| Audio Input | 2V p-p, 75Ω |
| Link Connector | Terminal x 1 |
| Link Cable | Twisted Pair CAT5 (AWG24) |
| Unit Dimensions | 2.3” (L) x 1” (W) x .8” (H) (59.3 x 25 x 20.7mm) |
| Weight | .1 lbs |
