Speco - VLB9 - 2MP HD-TVI IR Bullet Camera with Junction Box
Part number:
Price:
Product Overview

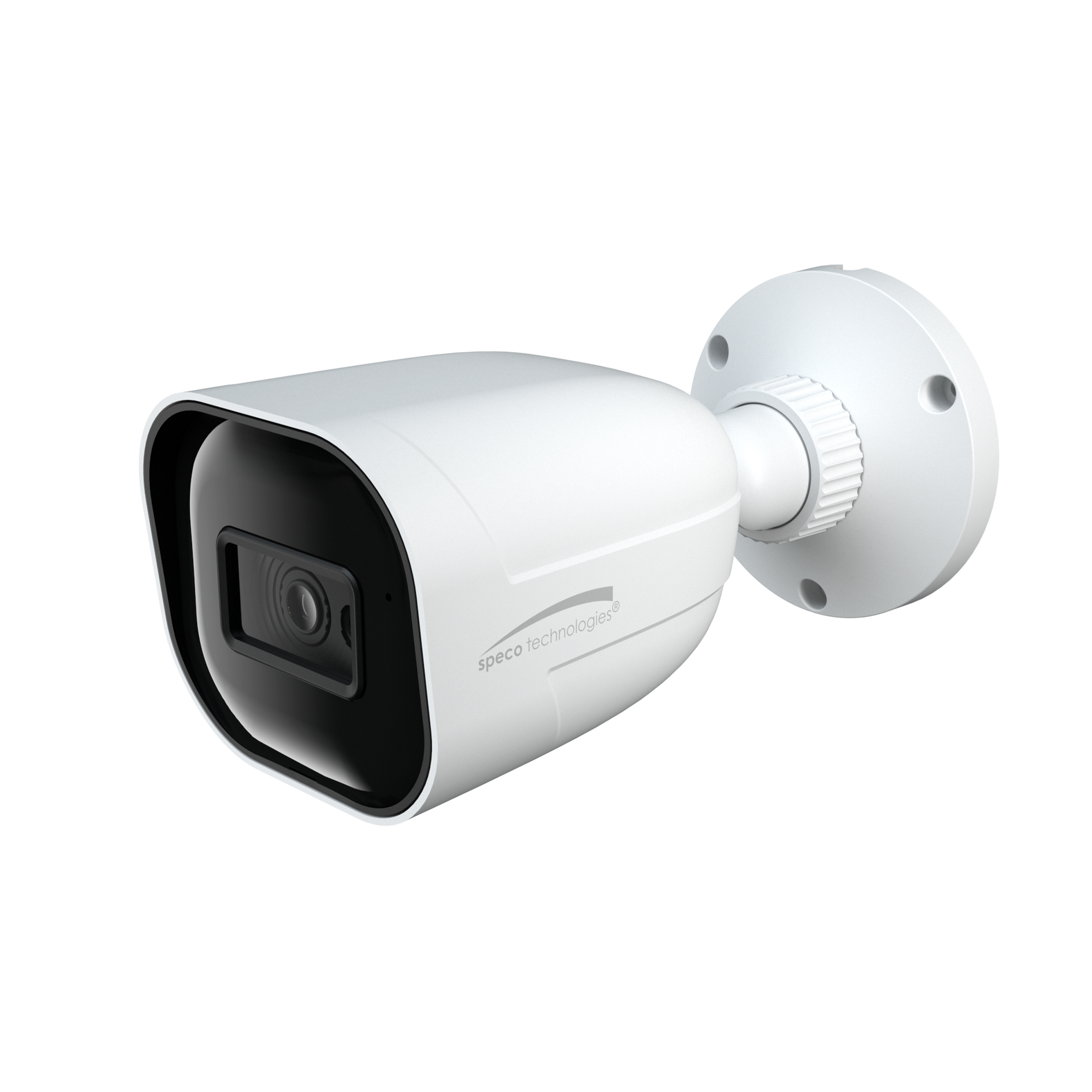

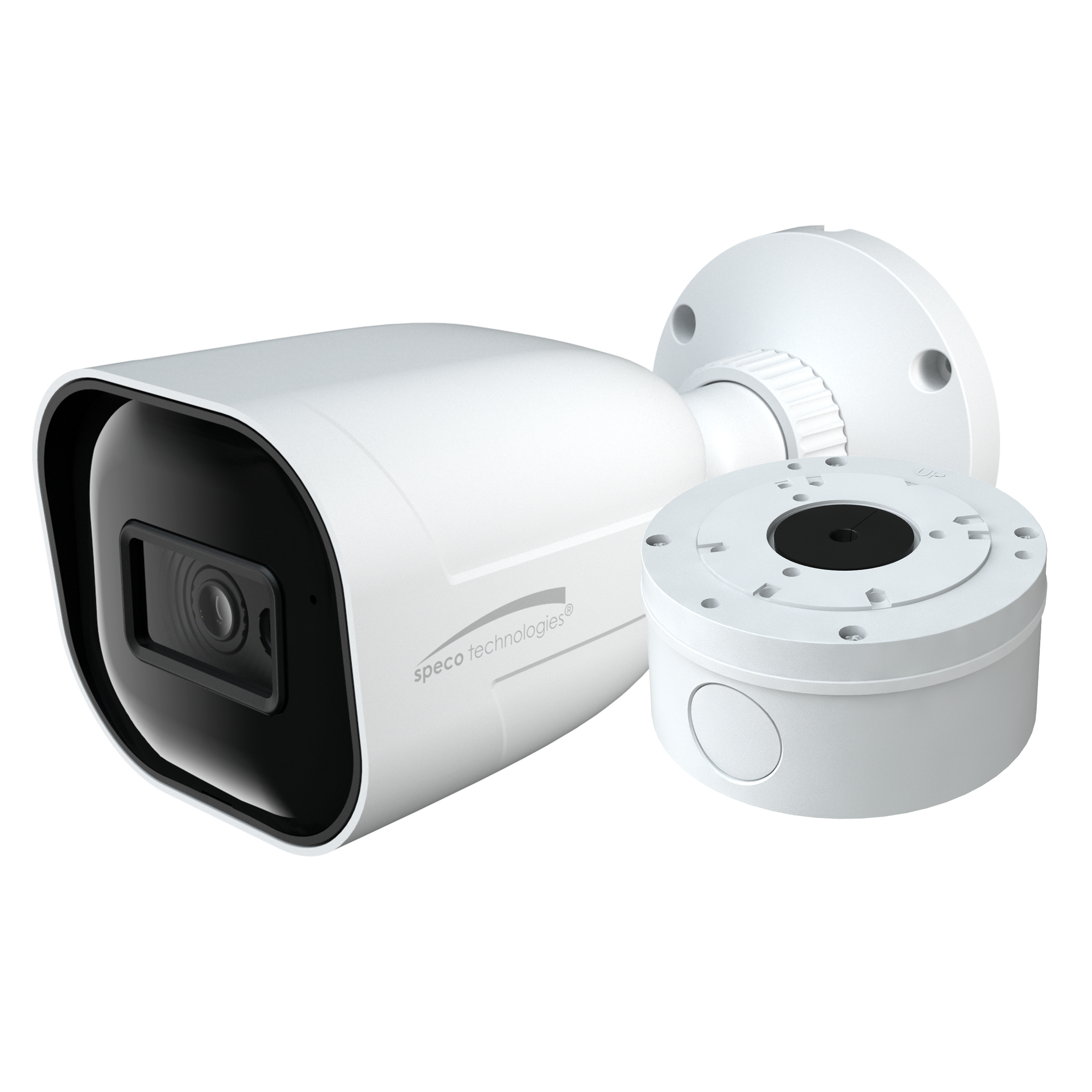

2MP HD-TVI IR Bullet Camera with Junction Box, 2.8mm fixed lens, white housing.
Key Configuration
Model: VLB9 | 2.8mm fixed lens | Supports up to 2MP @ 30fps | Full HD resolution over coax | Supports HD-TVI, CVI, AHD, and 960H Analog | IR Range: 65’ (depending on scene reflection) | 12VDC Operation (power supply not included) | IP67 compliant, weather resistant | Junction box included | 5 year warranty | NDAA Compliant
Key Features
- • NDAA Compliant*.
- • Full HD resolution over coax.
- • Supports HD-TVI, CVI, AHD, and 960H Analog.
- • IR Range: 65’ (depending on scene reflection).
- • Weather resistant IP67 rating.
Installation Notes
6.59” (L) x 2.93” (W) x 2.93” (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | 1/2.9” CMOS, 2MP |
| Minimum Illumination | 0 lux (IR ON) |
| Image Size | 1920 x 1080 |
| AHD/TVI/CVI/CVBS | |
| Image System | PAL/NTSC |
| Electronic Shutter | Auto: 1/50s ~ 1/100000s (PAL); 1/60s ~ 1/100000s (NTSC) |
| IR Distance | 32.8ft ~ 65.6ft |
| Frame Rate | 30fps (60Hz); 25fps (50Hz) |
| Lens Mount | M12 |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Functions | |
| Function Control | OSD (COC Control) |
| Day & Night | Yes, Smart IR |
| Digital WDR | |
| DNR | Yes |
| 3D DNR | |
| AGC | Yes |
| Auto White Balance Compensation | Yes |
| Sharpness | |
| BLC | |
| Mirror | Yes |
| Image Setting | Yes |
| Defect Correction | Yes |
| Auto | |
| Angle Adjustment | Pan (0° ~ 360°); Til (0° ~ 80°); Rotation (0° ~ 360°) |
| Operating & Unit Specifications | |
| Power | 12VDC (power supply not included) |
| Power Consumption | IR OFF: < 1W; IR ON: < 3W |
| Operating Temperature | -22°F ~ 122°F |
| Operating Humidity | 10% ~ 95% RH |
| Unit Dimensions | 6.59” (L) x 2.93” (W) x 2.93” (H) |
| Unit Weight | .82 lbs. |
