Speco - ZIP1612T4 - Plug & Play Surveillance Kit with IP Cameras and NVR with, 4TB
Part number:
Price:
Product Overview

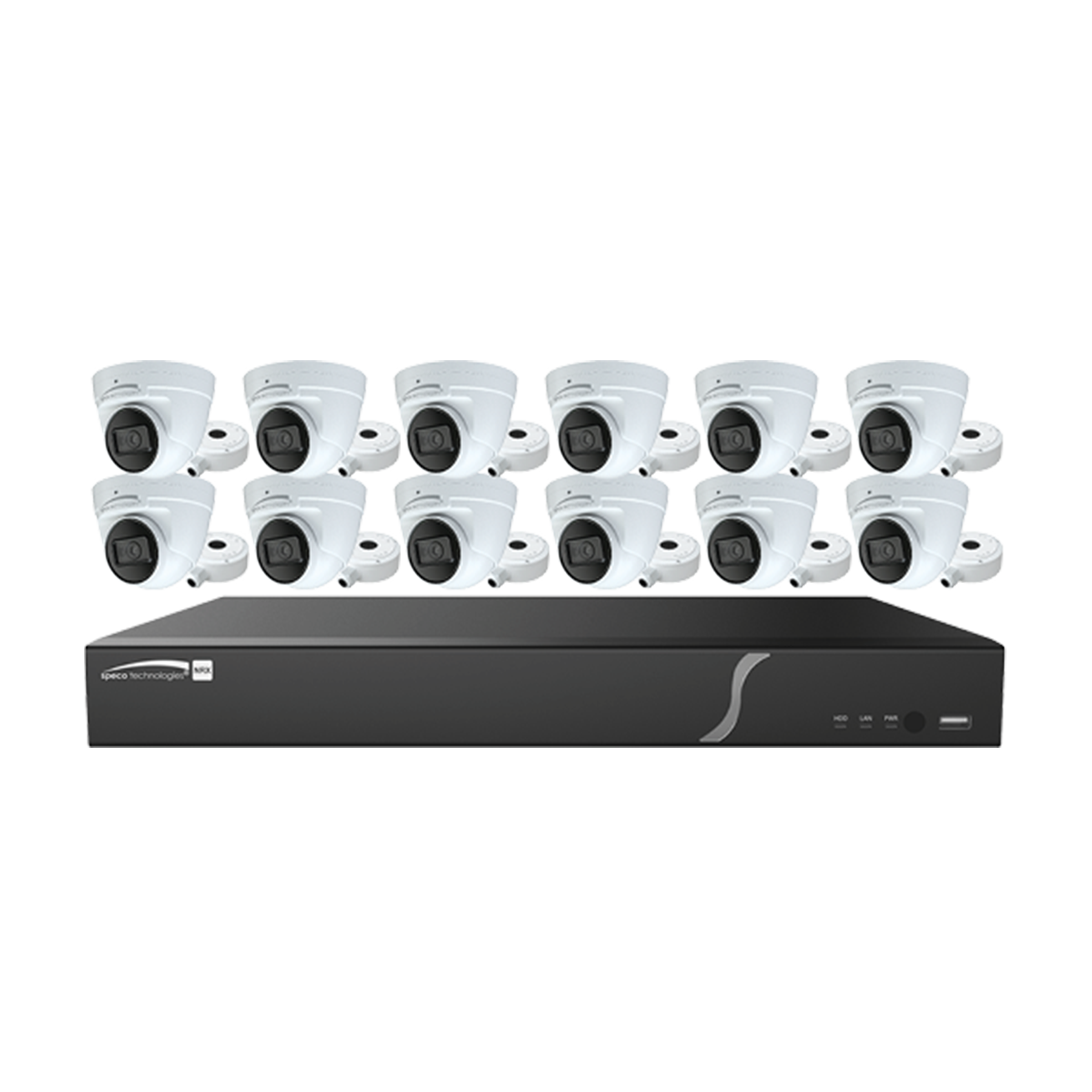

16-Channel Network Video Recorder with (16) Built-in PoE Ports (12) 4MP IP Cameras
Key Configuration
Model: ZIP1612T4
Key Features
- • Supports up to 4MP @ 30fps.
- • H.265/H.264 compression supported.
- • Built-in standard PoE (IEEE 802.3af).
- • True Day/Night operation (IR cut filter).
- • IR range: 100 ft. (depending on scene reflection).
Installation Notes
380mm x 268mm x 45mm (15.0" x 10.6" x 2.0")
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Terabyte Size | 4TB |
| NRX Recorder Specifications | |
| Max. Bit Rate | 128 Mbps |
| Max. Recording Resolution | 8MP |
| PoE Ports | 8/16 |
| Monitor Output | 1 HDMI, 1 VGA |
| Display Resolutions | VGA: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080 |
| USB Ports | 1 x USB 2.0 (Front), 1 USB 2.0, 1 USB 3.0 (Rear) |
| HDD Slots | 2TB/4TB |
| Ethernet | RJ-45 (100/1000M) port |
| Remote Viewing | Google Chrome®, Microsoft Edge®, Firefox®, Safari®, Speco Blue VMS |
| Power Supply | 48VDC, 1.5A (included) |
| Model | N8NRX2TB/N16NRX4TB |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS, 4MP |
| Maximum Resolution | 2560 x 1440 (4MP) |
| Field of View | 94° (H), 50° (V), 115°(D) |
| Minimum Illumination | 0.005 lux @ F1.6, AGC ON; 0 lux with IR |
| Image Settings | Region of interest, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Defog, Sharpen, Noise Reduction |
| Day/Night | Smart IR up to 100' (depending on scene reflection) |
| Compensation | True WDR, BLC, HLC |
| Electronic Shutter Speed | 1/2 - 1/100000 sec. |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0°-360°, Tilt 0°-75°, Rotation 0°-360° |
