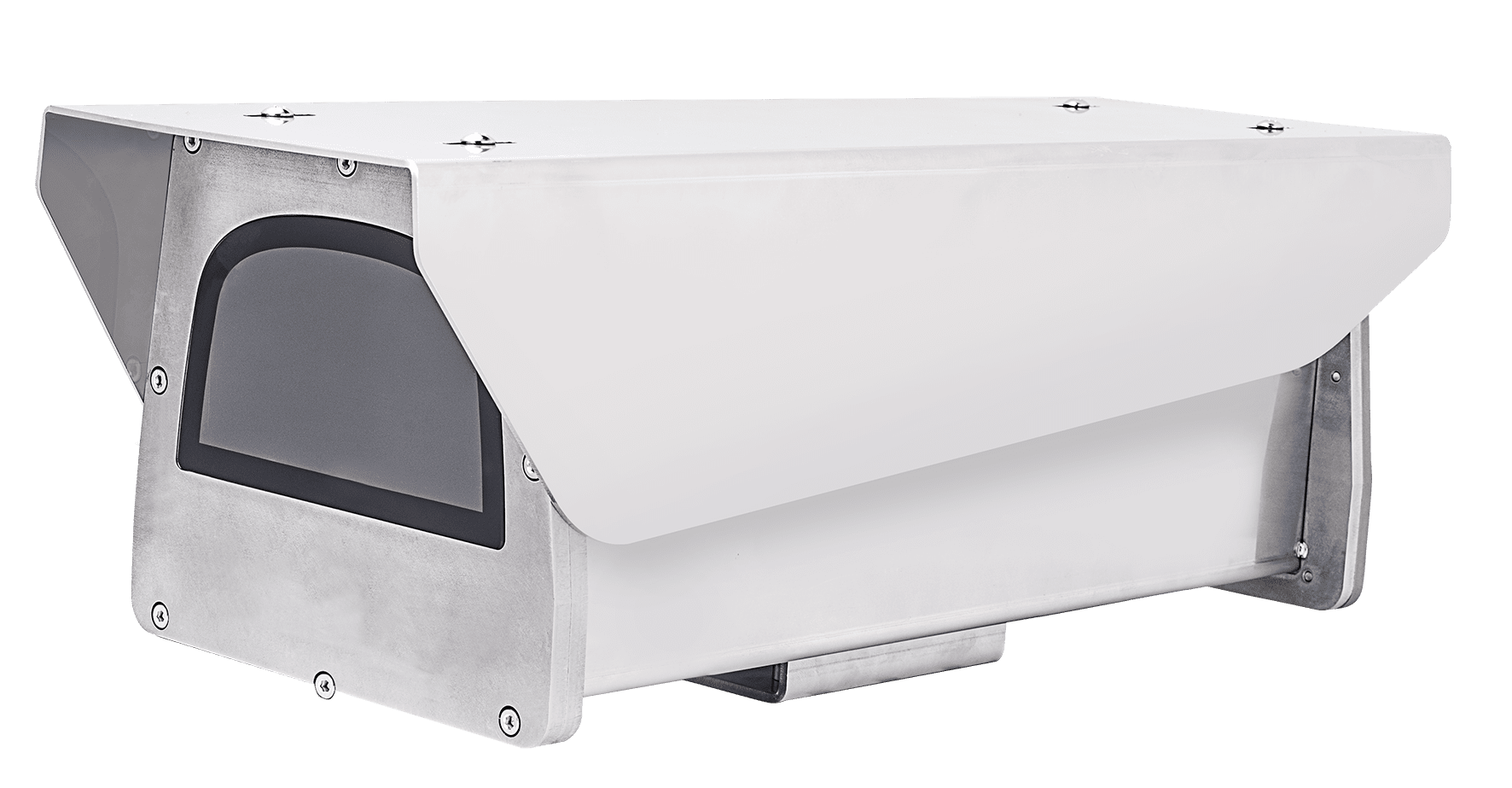

Constructed with AISI 316L stainless steel, VIVOTEK’s stainless camera housing is designed to protect network and analog box/brick cameras from highly corrosive and severe environments such as those found in offshore, chemical, petrochemical, and tunnel areas. Further, with built-in window heater and fan, it will prevent both ice and mist that could distort or obscure images. The AE-510 series is compliant with IP68 and IK10 standards. This model is powered by 24VAC input and provides 12VDC and 24VAC output inside the housing.

Features:

• AISI 316L Stainless Steel Construction
• Weather-proof IP68 and Vandal-proof IK10-rated Housing
• Window Heater & Fan Included
• Adjustable AISI 316L Stainless Steel Sunshield
• Model: AE-510-I
• Input Voltage: 24VAC
• Max. Output Power Budget: 12VDC, 24VAC
• Optional IR LEDs: 12W VAIR, 10° ~ 40°, 50 ~ 140 m
• Power Consumption: Fan: 2W IR
• LED: 12W
• Window Heater: 5W
• Operating Temperature: -20°C ~ 65°C (-4°F ~ 149°F)
• Waterproof IP Rating: IP68
• Vandal Proof: IK10
• Quick Installation Guide, Screw Kit
• Dimensions: 460 x 241.7 x 172 mm
• Weight: 8 kg
• Mount Type: Wall Mount
