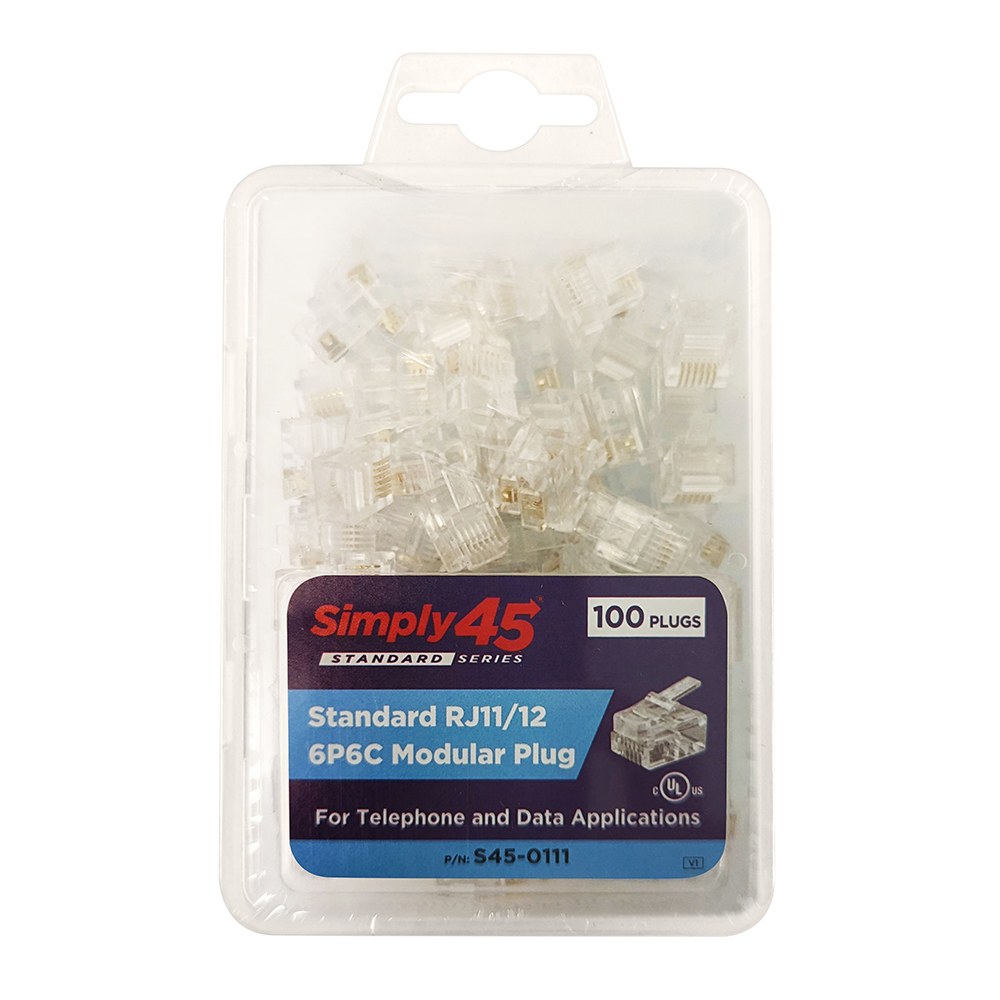

Simply 45 - S45-0111 - Standard RJ11/RJ12 Modular Plugs, Clear Tint - 100PC/Clamshell
Part number:
S45-0111
Price:

Standard RJ11/RJ12 Modular Plugs, Good for all 6P4C and 6P6C application, Clear Tint, 24ct gold plated contacts (15µ) with a UL94V-2 Flammability rating. Meets ROHS, UL, FCC standards – 100PC/Clamshell



For Telephone and Data Applications



Features:

  • 24ct gold plated contacts (15µ)
  • Flammability rating: UL94V-2
  • Good for 6P4C and 6P6C application
  • Meets ROHS, UL, FCC standards
  • 3 prongs for stranded and solid cable
  • 26-24 AWG solid
  • 0.90 – 1.00mm (0.035” – 0.039”)
  • Max Jacket OD 4.5mm (0.177”)
  • Limited Lifetime Warranty
