Product Overview

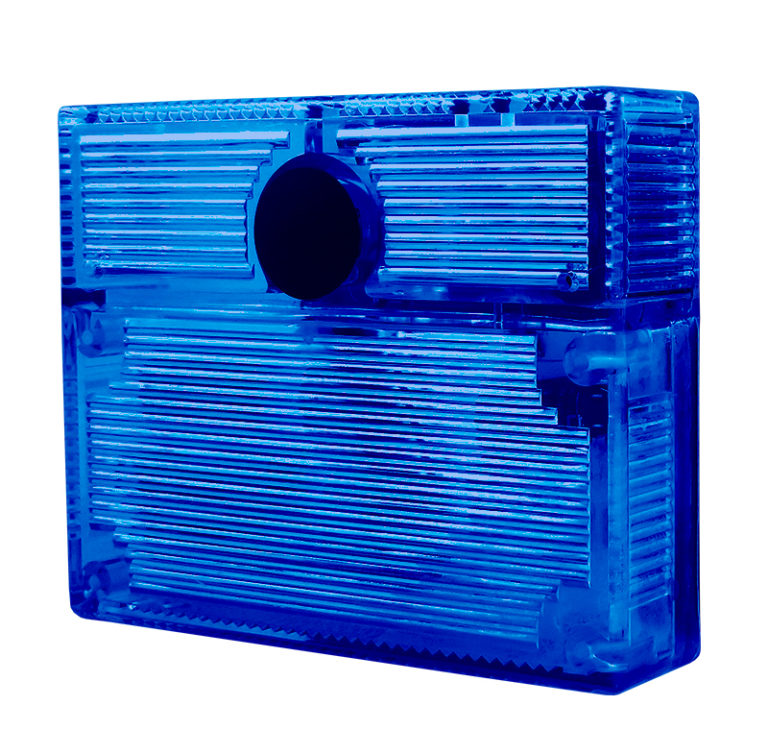

The ELK-SL1B is a durable, blue-lens strobe light constructed from weather-resistant polycarbonate, specifically designed to integrate with ELK stainless steel sirens and speakers. This low-draw 12V DC unit features a simple two-wire connection compatible with most control panels and pulsing outputs. For versatile installation, it can be mounted directly to sirens or fixed to walls and electrical boxes using the optional ELK-WK1 mounting kit.
Key Configuration
- • Operating voltage: 12 Volts DC
- • Current draw: 10-300 mA (210 mA nominal)
- • Flash rate: approximately 1 flash per second
- • Candela rating: 15 cd
- • Dimensions: 4.875" × 3.875" × 1.125"; color: blue
Key Features
Indoor/outdoor rated. Durable polycarbonate construction. Easy to install with simple 2-wire hookup. Works with pulsing alarm outputs. Optional ELK-WK1 wall kit available for mounting to walls or electrical boxes. Lifetime limited warranty.
| Operating Voltage | 12 Volts DC |
| Current Draw | 10-300mA, 210mA Nominal |
| Flash Rate | Approx. 1 Flash per second |
| Candela Rating | 15cd |
| Size | 4.875" x 3.875" x 1.125" |
| Color | Clear, Red, Blue, or Amber |
| Lifetime | Limited Warranty |
