Product Overview

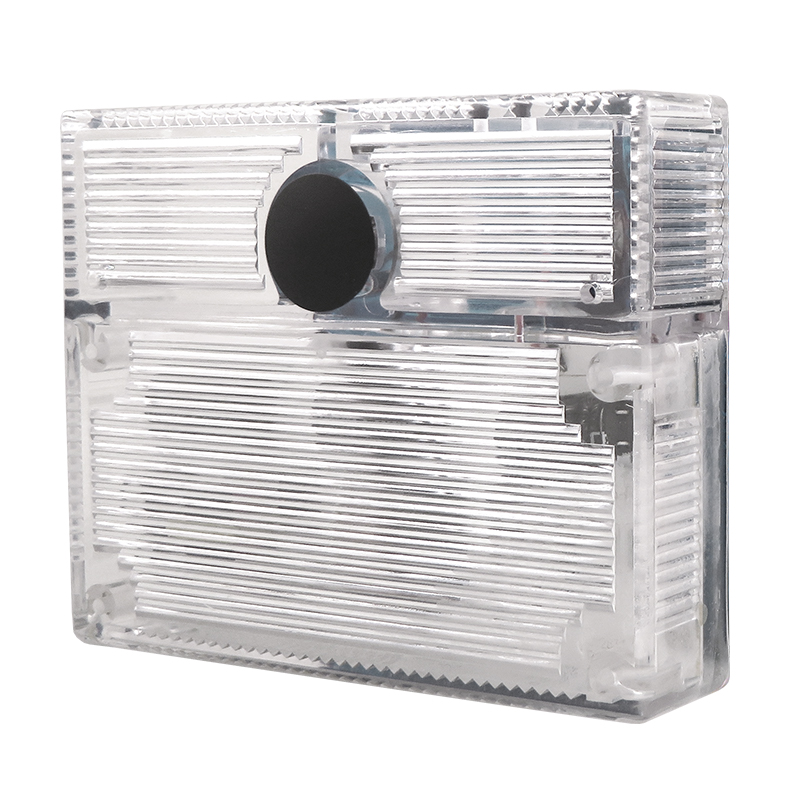

The ELK-SL1C is a durable, weather-resistant strobe featuring a clear Lexan lens, designed to integrate seamlessly with ELK’s stainless steel sirens and speakers. It operates on a simple 12VDC two-wire hookup with a low 210mA current draw, making it compatible with most control panels and pulsing outputs. For standalone use, it can be mounted to walls or electrical boxes using the optional ELK-WK1 kit.
Key Configuration
- • Operating voltage: 12 Volts DC
- • Current draw: 10-300 mA (210 mA nominal)
- • Flash rate: approximately 1 flash per second
- • Candela rating: 45 cd
- • Dimensions: 4.875" × 3.875" × 1.125"; color: clear
Key Features
Indoor/outdoor strobe with a clear Lexan lens, designed to attach directly to ELK’s stainless steel sirens or speakers. It features a simple 12VDC two-wire setup, low 210mA current draw, and works with both steady and pulsing alarm outputs.
Installation Notes
Includes strobe, fiber washer, hex socket cap type 3 screw, 3/16" short arm hex key, blanking plug, 2 gel filled B-connectors, and instructions. Simple 2-wire hookup (12 VDC). Optional ELK-WK1 wall kit required for wall or electrical box mounting.
| Operating Voltage | 12 Volts DC |
| Current Draw | 10-300mA, 210mA Nominal |
| Flash Rate | Approx. 1 Flash per second |
| Candela Rating | 45cd |
| Size | 4.875" x 3.875" x 1.125" |
| Color | Clear, Red, Blue, or Amber |
| Lifetime | Limited Warranty |
