Product Overview

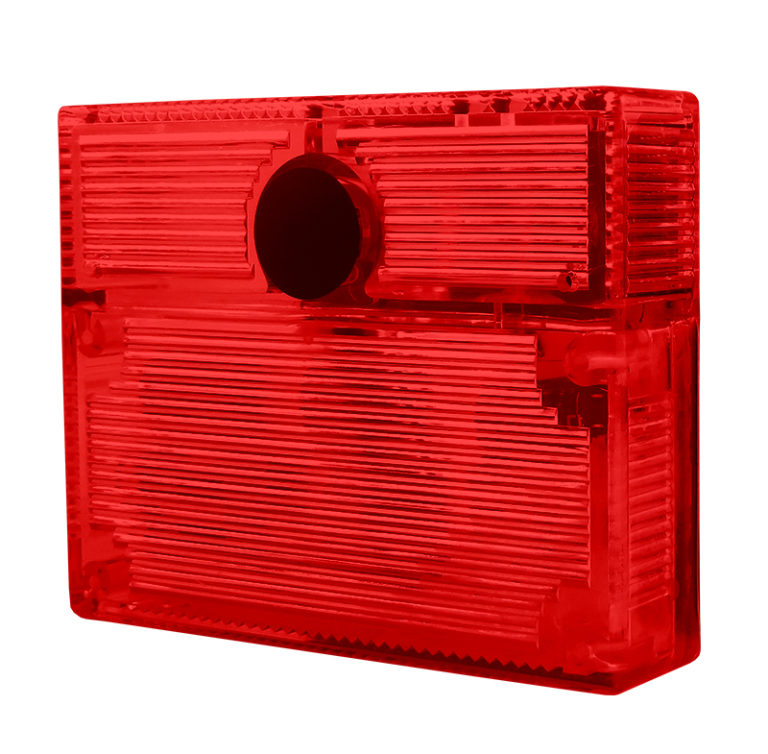

The ELK-SL1R is a red-lens, weather-resistant strobe light built from durable Lexan polycarbonate, designed to attach directly to ELK stainless steel siren units. Operating on a low-draw 12V DC two-wire connection, it is compatible with most control panels and pulsing alarm outputs. While designed for siren integration, it can also be installed on walls or electrical boxes using the optional ELK-WK1 wall kit.
Key Configuration
- • Operating voltage: 12 Volts DC
- • Current draw: 10-300 mA (210 mA nominal)
- • Flash rate: approximately 1 flash per second
- • Candela rating: 15 cd
- • Dimensions: 4.875" × 3.875" × 1.125"; color: red
Key Features
Indoor/outdoor rated. Durable polycarbonate construction. Easy to install with simple 2-wire hookup. Works with pulsing alarm outputs. Includes fiber washer, hex socket cap type 3 screw, 3/16" short arm hex key, blanking plug, 2 gel filled B-connectors, and instructions. Optional ELK-WK1 wall kit available. Lifetime limited warranty.
| Operating Voltage | 12 Volts DC |
| Current Draw | 10-300mA, 210mA Nominal |
| Flash Rate | Approx. 1 Flash per second |
| Candela Rating | 15cd |
| Size | 4.875" x 3.875" x 1.125" |
| Color | Clear, Red, Blue, or Amber |
| Lifetime | Limited Warranty |
Name
Description
Size
Downloads
File
Datasheet
1.2mb
File
Instructions
0.3mb
