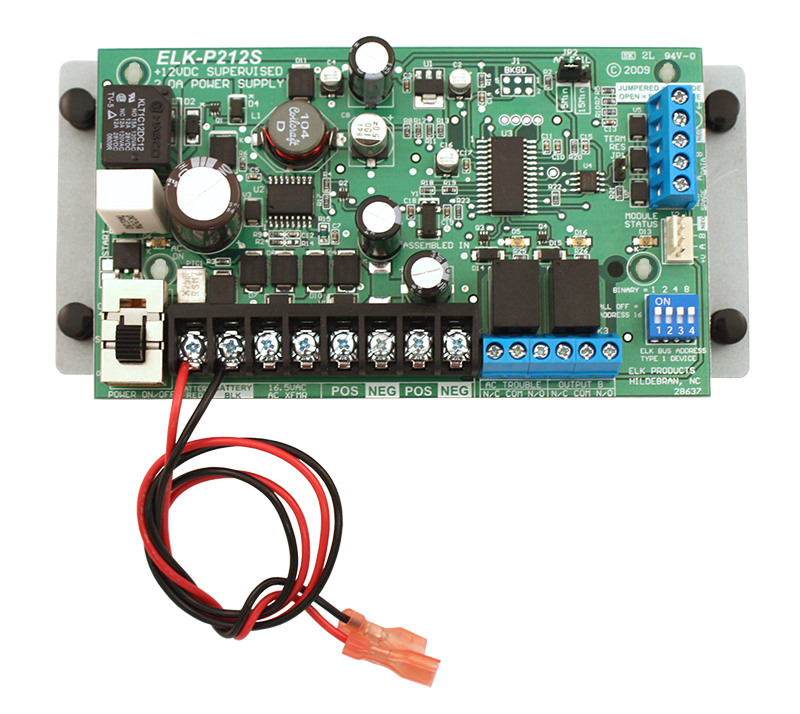

ELK - P212S - Supervised Remote Power Supply 12VDC for M1 or Standalone Use
Part number:
P212S
Price:
- • Regulated 12VDC Output with up to 2 Amps of current
- • Energy Efficient ESMT - Elk Switch Mode Technology ensures low idle power with maximum output headroom
- • Automatic output over-current protection (PTC)
- • Master AC and Battery ON / OFF Power Switch
- • Visual AC Power Indicator
- • Innovative EBT - Elk Battery Technology circuit provides maximum battery life
- • M1 Control allows
- • Stand-alone flexibility
• Included: Supervised Remote Power Supply, 6 pieces of Double Sided Tape, ELK-SWP3 Multipurpose Adapter Plate, Instructions
| AC Input | 16.5VAC, 45VA (ELK-TRG1640 or equiv.) |
| DC Output Voltage | 13.8 Volts D.C. +/- 5% |
| Current Rating | 2.0 Amps |
| Wattage | 30 Watts |
| DC Output Protection | Auto Resetting PTC |
| Rechargeable Battery Size | Max. 12 Ah |
| Low Battery Cutoff Threshold | ~10 Volts. |
| Load Regulation | + / - 2% |
| Warranty | 2 Year Warranty |
| Size | 5.5" x 3.25" x 1.25" |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
installation Guide
0.1mb
The ELK-P212S is a supervised remote power supply/battery charger, providing a 12 VDC output with a total current of up to 2 amps. It monitors the AC power input and the rechargeable battery, and can report abnormal conditions to an ELKM1 control unit via the four-wire RS485 data bus. Relay outputs for AC and low battery allow 'stand-alone' operation with other controls (security, access and CCTV products, etc.). The P212S can be used to increase the capacity of a control or to power devices such as motion detectors, keypads, zone expanders, sirens and annunciators remotely.
