ELK - 955 - Surge Suppressor Dual Telephone
Part number:
955
Price:

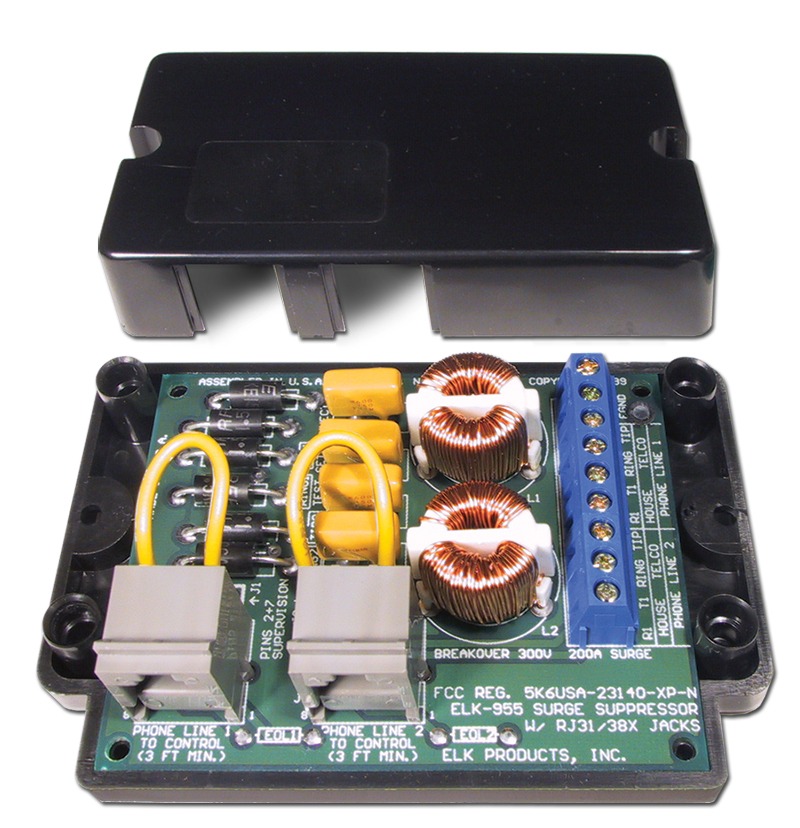

The ELK-955 is a Two-Line RJ31X/38X Telephone Jack containing solid state transient suppression designed to protect the telephone inputs on an alarm control. It responds to power surges and transients in less than 1 nanosecond, automatically restoring after each surge within the specified ratings.
Features:
- Superior Solid State Surge Suppression
- Rapid Response Time
- Protects Two Incoming Telephone Lines
- Clamps Line-To-Line & Line-To-Ground
- Self-restoring After Surges Within Ratings
- RJ31/38X 8-Pin Modular Jacks
- Convenient Test points for Lineman's Test set
- Surface Mount Enclosure
Additional Details:
The ELK-955 is compact and easy to install and features high quality, clearly labeled screw terminals, 8 pin modular phone connector, built-in tamper loop, and automatic shorting pins for cord removal. The ELK-955 is FCC Registered under part 68 and eliminates the need for a separate RJ31X telephone jack.
Whats Included:
- ELK-955 Surge Suppressor
- Plastic Housing
- Instructions
| Specifications | |
| Response Time | Less than 1 Nanosecond |
| Breakover Voltage | 300 Volts |
| Peak Pulse Current | 100 Amps |
| Ground Wire | 24" - 14 Gauge Stranded |
| Size | 4.4" x 3" x 1.15 |
| FCC Reg. No | 5K6USA-23140-XP-N Ren No. 0.0BResponse Time: Less than 1 Nanosecond |
