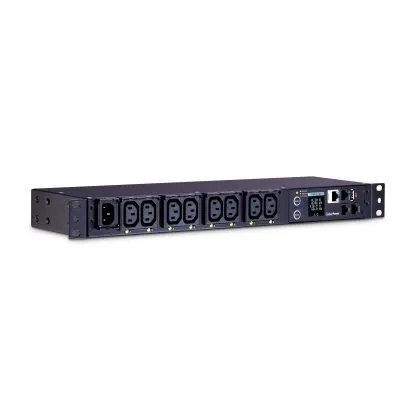

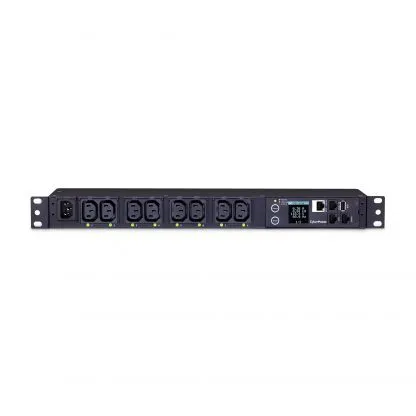

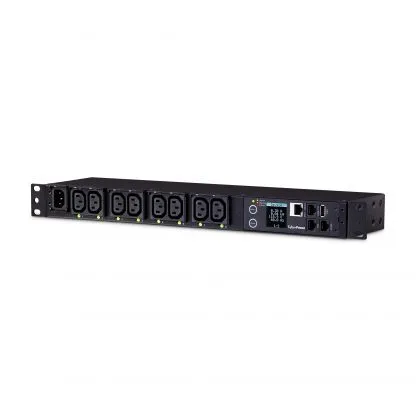

Streamline capacity planning and power management with the CyberPower PDU81004 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
The PDU81004 supports inputs between 100-240V and includes eight (8) IEC C13 outlets and a single IEC C14 input power plug. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81004 is protected by a three-year limited warranty.
Features:
| Input | |
| Cord Length | 10 ft (3.0 m) |
| Derated Input Current | 12A |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | IEC-320 C14 |
| Maximum Input Current | 15A |
| Nominal Input Voltage | 100 – 240 VAC |
| Power Cord Length | 10 ft (3 m) |
| Output | |
| Circuit Quantity | 1 |
| Nominal Output Voltage | 100 – 120 VAC |
| Number of Outlets | 8 |
| Outlet Type | 8 – IEC-320 C13 |
| Outlets – Total | 8 |
| Overload Protection | None |
| USB Charge Port | No |
| Management & Communications | |
| Environmental Sensor | Optional, via RJ45 |
| Hardware Connection Port | RJ45, Universal (RJ45) |
| LCD | Multifunction LCD |
| Outlet switching | Yes |
| Protocols | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
| Upgradeable firmware | Yes |
| Physical | |
| Color | Black |
| Form Factors Supported | 0U Vertical Rackmount, Wallmount, Undercounter Installation Supported |
| Material of Construction | Metal |
| Rack Height | 1U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 4.45 x 11.2 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 1.75 x 4.41 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 44 x 112 (mm) |
| Physical Weight (kg) | 2.1 |
| Physical Weight (lb) | 4.63 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 9.24 |
| Shipping – Weight (lb) | 20.38 |
| Shipping Dimensions – (WxHxD) (cm) | 25.1 x 6.78 x 50.17 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 9.88 x 2.67 x 19.75 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 250.95 x 67.82 x 501.65 (mm) |
| Environmental | |
| Operating Elevation | 0 – 11483 ft (0 – 3500 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 140 °F (0 – 60 °C) |
| Storage Elevation | 0 – 49213 ft (0 – 14999 m) |
| Storage Temperature | 5 – 149 °F (-15 – 65 °C) |
| Certifications | |
| Safety | UL62368 |
| Warranty | |
| Extended Warranty Option | WEXT5YR-PDU1B |
| Product Warranty | 3 Year Limited Warranty |
